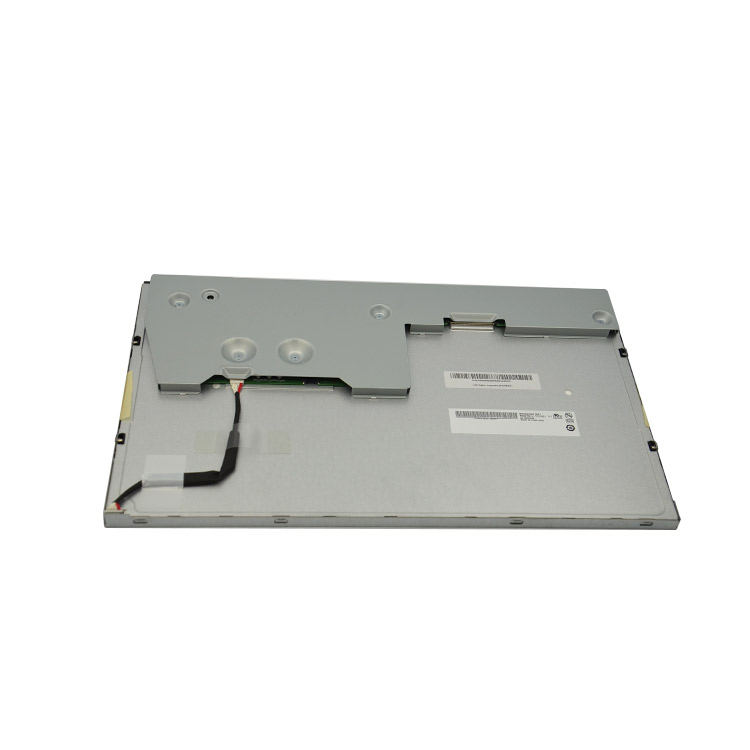

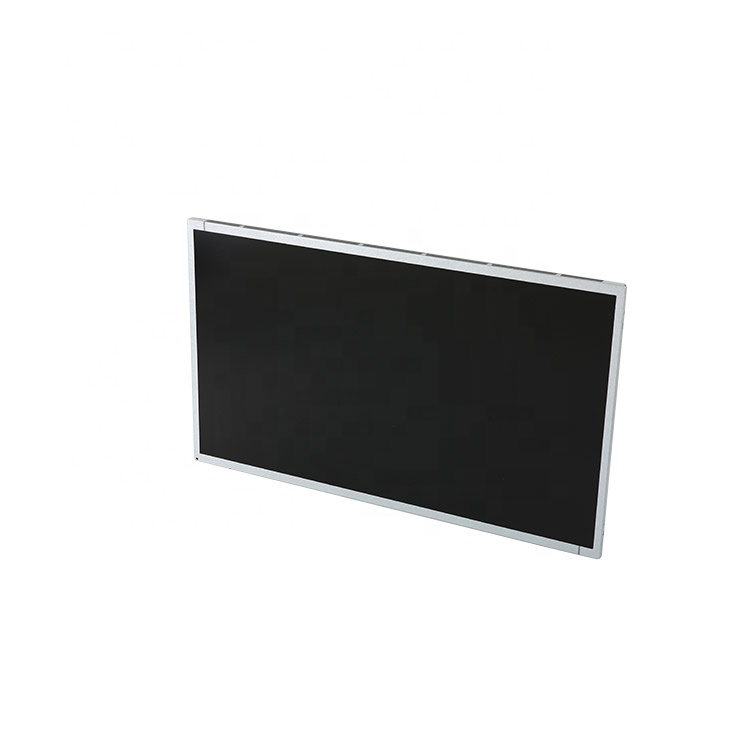

AUO G213UAN01.0 Application Details
Basic Info : |
Panel Brand |
AUO |
Panel Model |
G213UAN01.0 |
Diagonal Size |
21.30inch |
Application |
Industrial |
Panel Type |
a-Si TFT-LCD , LCM |
|
|
Reliability : |
Operating Temp. |
0 ~ 50 °C |
Storage Temp. |
-20 ~60 °C |
RoHS State |
RoHS |
Vibration Rating |
1.5G (14.7 m/s²) |
Specific Features : |
Srgb,WLED Backlight,Life>=50K hours, Matte |
AUO G213UAN01.0 Mechanical Details
Pixel Features : |
Pixel Format |
1600(RGB)×1200, UXGA |
Dot Pitch (mm) |
0.090×0.270 (H×V) |
Configuration |
RGB Vertical Stripe |
Pixel Pitch (mm) |
0.270×0.270 (H×V) [94PPI] |
Mechanical Size : |
Display Area(mm) |
432(H) × 324(V) |
Outline Dim. |
436(H) × 328(V) |
Outline Dim.(mm) |
456(H) × 349.5(V) |
Overall Depth |
17.6 (Typ.) |
Outline Features : |
Form Factor |
Flat Rectangle |
Orientation |
Landscape type |
Aspect Ratio |
4:3 (H:V) |
Shape Style |
|
Holes & Brackets : |
Side mounting holes (4-M3) on left, right bezel |
Other Detail : |
Mass |
2.30Kgs (Typ) |
Surface |
Antiglare |
AUO G213UAN01.0 Optical Details
Brightness |
Brightness |
500 cd/m² (Typ.) |
Contrast Ratio |
1800:1 (Typ.) (Transmissive) |
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
Optical Mode |
AMVA, Normally Black, Transmissivee |
Viewing Direction |
Symmetry |
Response Time |
8/8 (Typ.)(Tr/Td) |
Color Performance : |
Chromaticity |
Wx:0.299; Wy:0.315 |
Color Numbers |
16.7M (8-bit) |
Color Temperature |
7502K |
Uniformity |
1.18/1.25 (Typ./Max.)(9 points) |
1931 Color Gamut : |
NTSC Ratio |
79% |
sRGB |
99% coverage |
Adobe RGB |
77% coverage |
DCI-P3 |
82% coverage |
Rec.2020 |
59% coverage
|
Remarks |
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G213UAN01.0 Electronics Details
Frame Frequency : |
60Hz |
Reverse Scan : |
No |
Power Consumption : |
26.2W (Max.) |
AUO G213UAN01.0 Backlight Details
Back-light Features : |
Lamp Type |
WLED |
Amount |
13S6P |
Life Time |
50K(Min.) (Hours) |
Replacement |
- |
Lamp Shape |
6strings |
Position |
Edge light type |
Lamp Electrical : |
Voltage Supply |
337.05/38.22V (Typ./Max.) |
Current Supply |
70mA (Typ.) |
Consumption |
15.6/16.1W (Typ./Max.) |
Interface Features : |
Type |
Connector |
Position |
Down left corner |
Lamp Driver |
No |
Interface Detail : |
Brand |
Model |
Quantity |
Pins |
Pitch |
Pin Configuration |
|
CI1408M1HRN-NH |
1 pcs |
8pins |
|
BLE-8PINS-CCCAACCC |
AUO G213UAN01.0 Interface Details
Signal Systerm : |
LVDS (2 ch, 8-bit) |
Logic Voltage |
- |
Signal Electrical : |
Current Supply |
0.7/0.84A (Typ./Max.) |
Input Voltage |
12.0V (Typ.) |
Consumption |
8.4/10.1W (Typ./Max.) |
|
|
Interface Features : |
Type |
Connector |
Position |
- |
Connector Detail : |
Brand |
Model |
Pin Pitch |
Pins |
Amount |
Configuration |
JAE |
FI-XB30SSLA-HF15 |
1.0mm |
30pins |
1 pcs |
LVDS-30P2C8B-160A |
AUO G213UAN01.0 Carton Details
Package Carton :
|
Amount |
Net Weight |
Carton Size (L×W×H) |
9 pcs / box |
23.0 Kgs |
566×395×466 mm |
