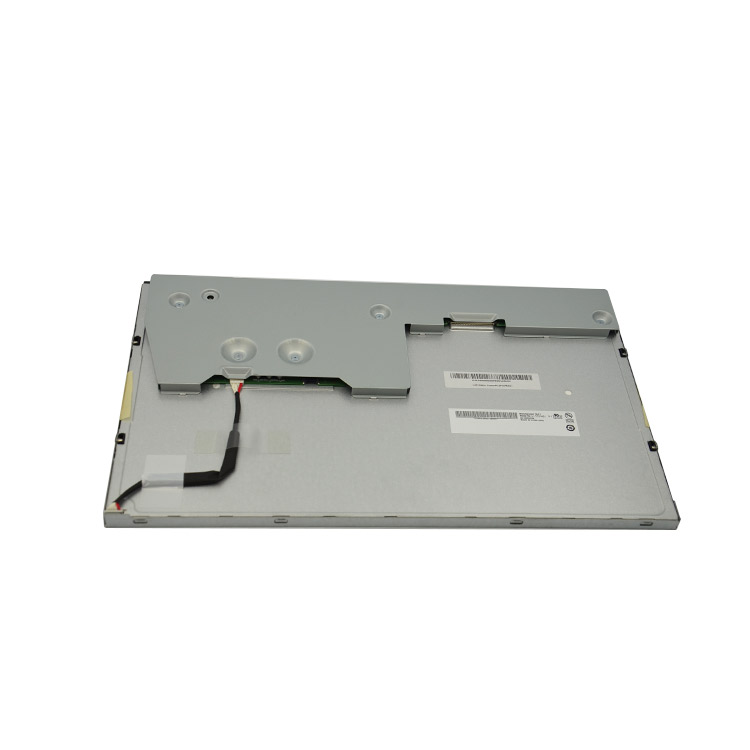

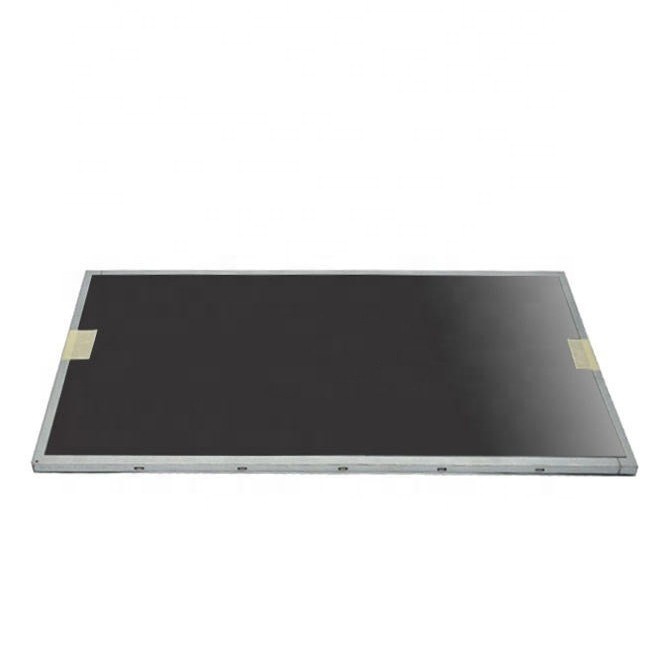

AUO M270HVN02.0 Application Details
| Basic Info : | Panel Brand | AUO | Panel Model | M270HVN02.0 |
| Diagonal Size | 27.0inch | Application | Industrial |
| Panel Type | a-Si TFT-LCD , LCM | | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~60 °C |
| RoHS State | RoHS | Vibration Rating | 1.5G (14.7 m/s²)
|
| Specific Features : | WLED Backlight，Reverse I/F，Matte |
AUO M270HVN02.0 Mechanical Details
| Pixel Features : | Pixel Format | 1920(RGB)*1080, FHD | Dot Pitch | 0.10375*0.31125 mm (H*V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch (W*H) | 0.31125*0.31125 mm (H*V) [81PPI] |
| Mechanical Size : | Display Area | 597.6*336.15 mm (H*V) | Outline Dim. | 601.6*340.15 mm (H*V) |
| Outline Dim. | 613.6*356.85 mm (H*V) | Overall Depth | 7.2/10.5 (Typ./Max.) mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Normal bezel |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
| Other Detail : | Mass | 2.18g (Typ.) | Surface | Antiglare, Hard coating (3H) |
AUO M270HVN02.0 Optical Details
| Brightness | Brightness | 300 cd/m²(Typ.) | Contrast Ratio | 3000:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AMVA, Normally Black, Transmissivee |
| Viewing Direction | Symmetry | Response Time | 7/5 (Typ.)(Tr/Td) ms |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 95% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 75% coverage |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO M270HVN02.0 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 19.53W (Typ.) |
AUO M270HVN02.0 Backlight Details
| Back-light Features : | Lamp Type | WLED | Amount | 15S4P | Life Time | 30K(Min.) (Hours) |
| Replacement | - | Lamp Shape | 4 strings | Position | Edge light type (Bottom side) |
| Lamp Electrical : | Input Current | 80/84mA (Typ./Max.) | Input Voltage | 43.5/46.5/51V (Min./Typ./Max.) |
| Consumption | 14.88W /16.32W (Typ./Max.) |
| Interface Features : | Type | Connector | Position | Down right corner | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| E&T | 3707K-S06N-21R | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC |
AUO M270HVN02.0 Interface Details
| Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - |
| Signal Electrical : | Input Current | 0.93/1.22A (Typ./Max.) | Input Voltage |
5.0V (Typ.) |
| Consumption | 4.65/5.58W (Typ./Max.) |
| Interface Features : | Type |
Connector | Position | Down left of panel |
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| STM |
MSCKT2407P30HB | 1.0mm | 30pins | 1 pcs |
LVDS-30P2C8B-160A |
AUO M270HVN02.0 Packing Details
| Package Box : | Quantity | Weight | Box Size (L*W*H) |
| 10pcs / box | 27.13 Kgs | 708*261*473 mm |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for M270HVN02.0. Please include your application and required quantity so we can confirm the applicable revision.
