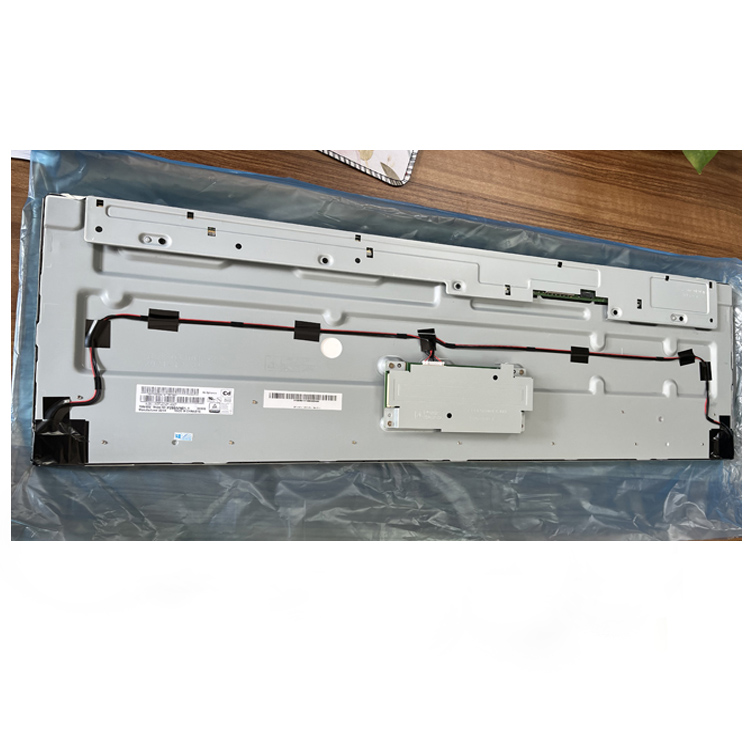

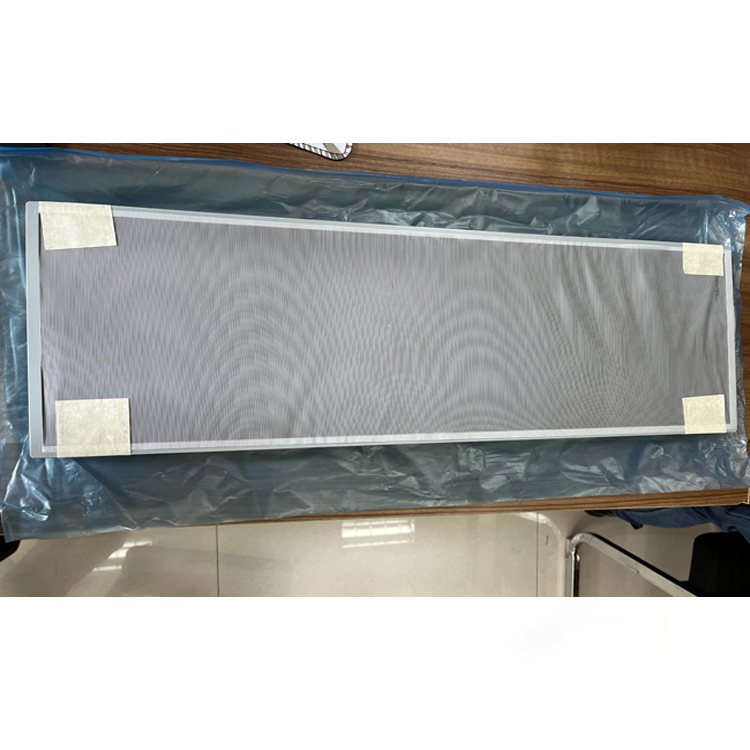

AUO P286IVN01.1 Application Details
| Basic Info : | Panel Brand | AUO | Panel Model | P286IVN01.1 |
| Diagonal Size | 28.6" | Application | Digital Signage，Outdoor High Brightness |
| Panel Type | a-Si TFT-LCD , LCM | | |
| Reliability : | Operating Temp. | -20 ~ 60 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | RoHS | Vibration Rating | 1.04G (10.3 m/s²) |
| Specific Features : | Landscape/Portrait，Hight Brightness，WLED Backlight，Life>=70K hours,With LED Driver,Bar Display,Matte |
AUO P286IVN01.1 Mechanical Details
| Pixel Features : | Pixel Format | 1920(RGB)*540 | Dot Pitch
| 0.12125*0.36375 mm (H*V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.36375*0.36375 mm (H*V) [69PPI] |
| Mechanical Size : | Display Area | 698.4*196.425 mm (H*V) | Bezel Area | 702.4*200.43 mm (H*V) |
| Outline Dim. | 722.2*220.23 mm (H*V) | Outline Depth | 19.5/28.9 (Typ./Max.) mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape / Portrait |
| Aspect Ratio | >3:1 (H:V) | Shape Style | |
| Holes & Brackets : | Side mounting holes (10-M3) on left, right, up, down bezel |
| Other Features : | Weight | 3.10Kgs | Surface | Antiglare (Haze 28%), Hard coating (3H) |
AUO P286IVN01.1 Optical Details
| Basic Information : | Brightness | 700 cd/m²(Typ.) | Contrast Ratio | 4000:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AMVA3, Normally Black, Transmissive |
| Viewing Direction | Symmetry | Response Time | 8 (Typ.)(G to G) (ms) |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 95% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 75% coverage |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
AUO P286IVN01.1 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | No |
AUO P286IVN01.1 Backlight Details
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED
| Life Time | 70K(Min.) (Hours)
|
| Replacement | - | Amount | - | Position | Edge light type |
| Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| CviLux | CI0114M1HRL-NH | 2.0 mm | 14 pins | 1 pcs | |
| Driver Electrical : | Voltage Input | 24±1.2V | Current Input | 1.34/1.54A (Typ./Max.) |
| Consumption | 32.14/36.95W (Typ./Max.) |
AUO P286IVN01.1 Interface Details
| Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - |
| Signal Electrical : | Voltage Input | 12V (Typ.) | Current Input | 0.5/0.6A (Typ./Max.) |
| Consumption | 6.0/7.2W (Typ./Max.) |
| Interface Features : | Type | Connector | Position | - | |
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration
|
| JAE | FI-RTE51SZ-HF | 0.5 mm | 51 pins | 1 pcs | |
AUO P286IVN01.1 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 4 pcs / box | 15.8 Kgs | 820*376*418 mm |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for P286IVN01.1. Please include your application and required quantity so we can confirm the applicable revision.
