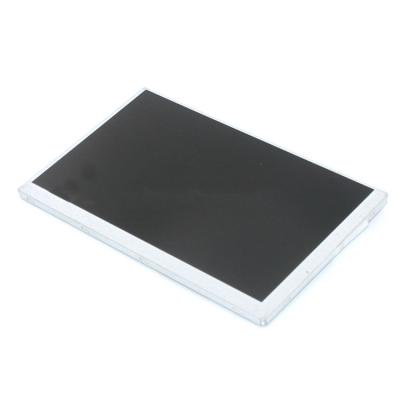

AUO G070ACE-LH2 Application Details
| Basic Info : |
Panel Brand |
AUO |
Panel Model |
G070ACE-LH2 |
| Diagonal Size |
7.0inch |
Application |
Industrial |
| Panel Type |
a-Si TFT-LCD , LCM |
|
|
| Reliability : |
Operating Temp. |
-30 ~ 85 °C |
Storage Temp. |
-40 ~ 90 °C |
| RoHS State |
RoHS |
Vibration Level |
1.5G (14.7 m/s²) |
| Specific Features : |
Wide Temperature，WLED Backlight，Life>=50K hours,With LED Driver，6/8 bit，Matte |
AUO G070ACE-LH2 Mechanical Details
| Pixel Features : |
Pixel Format |
800(RGB)×480, WVGA |
Dot Pitch (mm) |
0.0635×0.1905 (H×V) |
| Configuration |
RGB Vertical Stripe |
Pixel Pitch (mm) |
0.1905×0.1905 (H×V) [133PPI] |
| Mechanical Size : |
Active Viewing (mm) |
152.4(H) × 91.44(V) |
Bezel Area(mm) |
154.4(H) × 93.44(V) |
| Outline Dim.(mm) |
170(H) × 110(V) |
Overall Depth |
6.0/9.35 (Typ./Max.) |
| Outline Features : |
Form Factor |
Flat Rectangle |
Orientation |
Landscape type |
| Aspect Ratio |
15:9 (H:V) |
Shape Style |
|
Fixation :
|
Side mounting holes (4-M3) on up, down bezel |
| Other Detail : |
Mass |
183±9g |
Surface |
Antiglare, Hard coating (3H) |
AUO G070ACE-LH2 Optical Details
| Brightness |
Brightness |
500 cd/m² (Typ.) |
Contrast Ratio |
800:1 (Typ.) (Transmissive) |
| Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
Optical Mode |
AAS, Normally Black, Transmissive |
| Viewing Direction |
Symmetry |
Response Time |
13/12 (Typ.)(Tr/Td) |
| Color Performance : |
Chromaticity |
Wx:0.313; Wy:0.329 |
Color Numbers |
262K/16.7M (6-bit / 8-bit) |
| Color Temperature |
6485K |
Uniformity |
1.43 (Max.)(5 points) |
| 1931 Color Gamut : |
NTSC Ratio |
- |
sRGB |
82% coverage |
| Adobe RGB |
62% coverage |
DCI-P3 |
61% coverage |
| Rec.2020 |
44% coverage |
Remarks |
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G070ACE-LH2 Electronics Details
| Frame Frequency : |
60Hz |
| Reverse Scan : |
No |
| Power Consumption : |
2.45W |
AUO G070ACE-LH2 Backlight Details
| Back-light Features : |
Lamp Type |
WLED |
Amount |
- |
Life Time |
50K(Min.) (Hours) |
| Replacement |
- |
Lamp Shape |
- |
Position |
Edge light type |
| Interface Features : |
Position
|
- |
Physical Type |
Included in signal interface |
| Backlight Driver : |
With LED Driver |
| Backlight Driver : |
Input Current |
0.1/0.17/0.2A (Min./Typ./Max.) |
Input Voltage |
12±1.2V |
| Consumption |
2.0/2.3W (Typ./Max.) |
AUO G070ACE-LH2 Interface Details
| Signal Electrical : |
Input Current |
135/200mA (Typ./Max.) |
Input Voltage |
3.3V (Typ.) |
| Consumption |
0.45W (Typ./Max.) |
Signal Interface |
LVDS (1 ch, 6/8-bit) |
| Interface Features : |
Position |
- |
Physical Type |
Connector |
| Signal Interface : |
Brand |
Model |
Amount |
Pin Pitch |
Pin Amount |
Pin Assignment |
| STARCONN |
093G30-B0001A-G4 |
1 pcs |
1.0mm |
30pins |
|

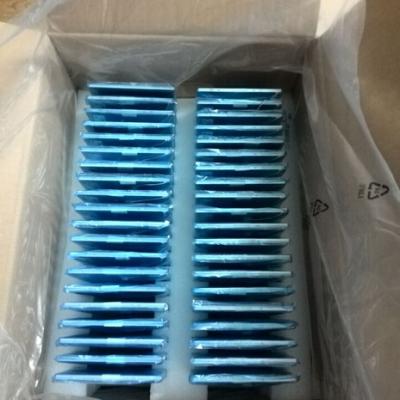

Innolux G070ACE-LH2 Packing Details
| Package Box : |
Quantity |
Weight |
Box Size |
| 38 pcs / box |
8.3 Kgs |
445×370×275 mm (L×W×H) |
