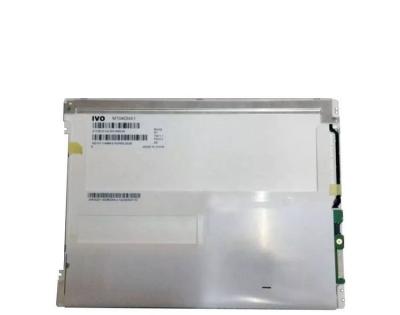

  • IVO10.4 inch 1024x768 LVDS interface M104GNX1 R1 XGA industrial tft lcd panel
  • IVO10.4 inch 1024x768 LVDS interface M104GNX1 R1 XGA industrial tft lcd panel
  • Model:M104GNX1 R1
  • Brand:IVO
  • Size:10.4inch
  • Resolution:1024×768
  • Brightness:350 cd/m²
  • Perspective:75/75/75/75
  • Interface:LVDS
  • Operating Temp.: -20 ~ 70 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • IVO M104GNX1 R1 Application Details

    Basic Info :Panel BrandIVOPanel ModelM104GNX1 R1
    Diagonal Size10.4"ApplicationIndustrial
    Panel Typea-Si TFT-LCD , LCMModel AliasM104GNX1-R1
    Reliability :Operating Temp.-20 ~ 70 °CStorage Temp.-30 ~ 80 °C
    RoHS StateRoHSVibration Rating-
    Specific Features :WLED Backlight,With LED Driver,180°C;Reverse,6/8bit,Matte


    IVO M104GNX1 R1 Mechanical Details

    Pixel Features :Pixel Format1024(RGB)*768, XGADot Pitch0.06875*0.20625 mm (H*V)
    ConfigurationRGB Vertical StripePixel Pitch0.20625*0.20625 mm (H*V)  [123PPI]
    Mechanical Size :Display Area211.2*158.4 mm (H*V)Bezel Area214.8*162.0 mm (H*V)

    Outline Dim.236*176.9 mm (H*V)

    Outline Depth5.7±0.3 mm
    Outline Features :Form FactorFlat RectangleOrientationLandscape type
    Aspect Ratio4:3 (H:V)Shape Style
    Holes & Brackets :Face mounting holes (4 pcs) on left, right bezel
    Other Features :Weight290g (Max.)SurfaceAntiglare, Hard coating (3H)


    IVO M104GNX1 R1 Optical Details

    Basic Information :Brightness350 cd/m²(Typ.)Contrast Ratio900:1 (Typ.) (Transmissive)
    Viewing Angle    75/75/75/75 (Typ.)(CR≥10)Optical ModeTN, Normally White, Transmissive
    Viewing Direction-Response Time16 (Typ.)(Tr+Td) ms
    Color Performance :ChromaticityWx:0.310; Wy:0.330Color Numbers262K/16.7M (6-bit / 6-bit + Hi-FRC)
    Color Temperature6638KUniformity1.25/1.33 (Typ./Max.)(9 points)
    1931 Color Gamlt :NTSC Ratio50%sRGB70% coverage
    Adobe RGB53% coverageDCI-P352% coverage
    Rec.202038% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


    IVO M104GNX1 R1 Electronics Details

    Frame Frequency :60Hz
    Reverse Scan :Yes (180°)
    Power Consumption :3.72W (Max.)


    IVO M104GNX1 R1 Backlight Details

    Back-light Features :Lamp TypeWLEDAmount-Life Time30K(Min.) (Hours)
    Replacement-Lamp Shape-PositionEdge light type
    Interface Features :TypeConnectorPosition-Lamp DriverWith LED Driver
    Interface Detail :BrandModelPin Pitch AmountConfiguration

    STM

    MSB24038P5A1.25 mm5 pins1 pcs
    Driver Electrical :Voltage Input12.0V (Typ.)Current Input-
    Consumption2.88W (Max.)


    IVO M104GNX1 R1 Interface Detail

    Signal Systerm :LVDS (1 ch, 6/8-bit)Logic Voltage-
    Signal Electrical :Voltage Input3.3V (Typ.)Current InputTBD
    Interface Features :TypeConnectorPosition-
    Connector Detail :BrandModelPin PitchPinsAmountConfiguration
    STMMSB24013P20HA1.0 mm20 pins1 pcsLVDS-20P1C8B-080D
