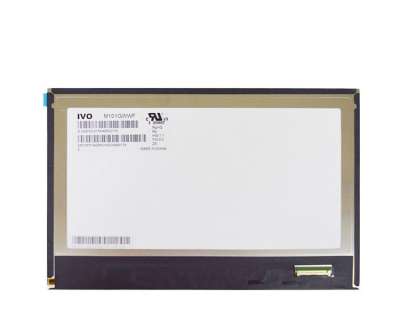

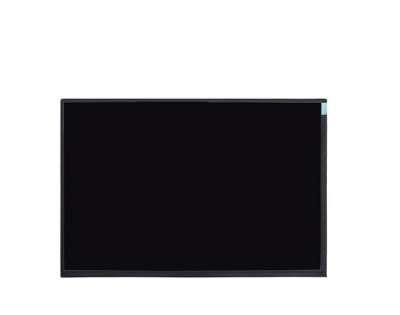

  • New 10.1 inch 1280x800 IVO IPS TFT LCD Panel For Industry M101GWWF R0
  • New 10.1 inch 1280x800 IVO IPS TFT LCD Panel For Industry M101GWWF R0
  • Model:M101GWWF R0
  • Brand:IVO
  • Size:10.1inch
  • Resolution:1280×800
  • Brightness:350 cd/m² (Typ.)
  • Perspective:85/85/85/85 (Typ.)
  • Interface:LVDS
  • Operating Temp.:-20 ~ 70 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1IVO M101GWWF R0 Application Details

    Basic Info :

    Panel Brand

    IVO

    Panel Model

    M101GWWF R0

    Diagonal Size

    10.1"

    Application

    Industrial

    Panel Type

    a-Si TFT-LCD , LCM



    Reliability :

    Operating Temp.

    -20 ~ 70 °C

    Storage Temp.

    -30 ~ 80 °C

    RoHS State

    RoHS

    Vibration Rating

    1.5G (14.7 m/s²)

    Specific Features :

    WLED BacklightWith LED DriverReverse I/F,Glossy


    2IVO M101GWWF R0 Mechanical Details

    Pixel Features :

    Pixel Format

    1280(RGB)×800 [WXGA]

    Dot Pitch (W×H)

    0.0565×0.1695 mm

    Configuration

    RGB Vertical Stripe

    Pixel Pitch (W×H)

    0.1695×0.1695 mm  [149PPI]

    Mechanical Size :


    Display Area

    216.96(W)×135.6(H) mm

    Overall   Dim.

    229.46(W)×149.1(H) mm

    Bezel Opening

    -

    Outline Depth

    2.5/4.56 (Typ./Max.) mm

    Outline Features :

    Form Factor

    Flat Rectangle

    Orientation

    Landscape type

    Aspect Ratio

    16:10 (H:V)

    Shape Style

    Slim (PCBA Bent, T3.0mm)

    Fixation :

    Without

    Other Features :

    Mass

    165g (Max.)

    Surface

    Glare (Haze 0%), Hard coating (3H)


    3IVO M101GWWF R0 Optical Details

    Basic Information :

    Brightness

    350 cd/m² (Typ.)

    Contrast Ratio

    800:1 (Typ.) (Transmissive)

    Viewing Angle

    85/85/85/85 (Typ.)(CR10)

    Optical Mode

    IPS, Normally Black, Transmissive

    Viewing Direction

    Symmetry

    Response Time

    25 (Typ.)(Tr+Td) (ms)

    Color Performance :

    Chromaticity

    Wx:0.313; Wy:0.329

    Color Numbers

    16.7M (8-bit)

    Color Temperature

    6485K

    Uniformity

    1.33/1.43 (Typ./Max.)(9 points)

    1931 Color Gamut :

    NTSC Ratio

    46%

    sRGB

    65% coverage

    Adobe RGB

    48% coverage

    DCI-P3

    48% coverage

    Rec.2020

    34% coverage

    Remarks

    sRGB (Rec.709, BT.709), Rec.2020   (BT.2020)



    4IVO M101GWWF R0 Electronics Details

    Frame Frequency :

    60Hz

    Reverse Scan :

    No

    Power Consumption :

    3.5W (Max.)


    5IVO M101GWWF R0 Backlight Details

    Back-light Features :

    Lamp Type

    WLED

    Amount

    -

    Life Time

    30K(Typ.) (Hours)

    Replacement

    -

    Lamp Shape

    -

    Position

    Edge light type

    Interface Features :

    Type

    Included in signal interface

    Position

    -

    Lamp Driver

    With LED Driver

    Driver Electrical :

    Voltage Input

    5.0/12.0/21.0V (Min./Typ./Max.)

    Current Input

    -

    Consumption

    2.5W (Max.)


    6IVO M101GWWF R0 Interface Detail

    Signal Systerm :

    LVDS (1 ch, 8-bit)

    Logic Voltage

    -

    Signal Electrical :

    Voltage Input

    3.3V (Typ.)


    Current Input

    -

    Interface Features :

    Type

    Connector


    Position

    Down right of panel

    Connector Detail :

    Brand

    Model

    Pin Pitch

    Pins

    Amount

    Configuration

    I-PEX

    20455-040E-66

    0.5 mm

    40 pins

    1 pcs



    7IVO M101GWWF R0 Carton Details

    Box Type

    Pcs/Box

    Package LWH (mm)

    G.W (kgs)

    40

    N/A

    N/A
