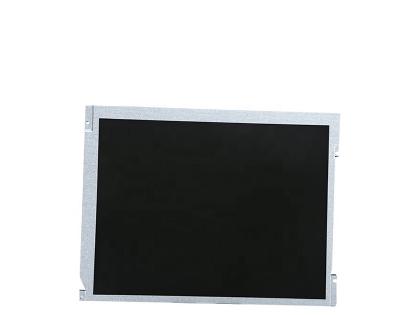

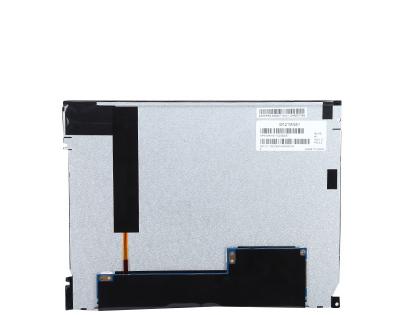

  • IVO 12.1 inch LCD panel M121MNS1 R1 support800(RGB)*600, SVGA, 82PPI ,450 cd/m²
  • IVO 12.1 inch LCD panel M121MNS1 R1 support800(RGB)*600, SVGA, 82PPI ,450 cd/m²
  • Model:M121MNS1 R1
  • Brand:IVO
  • Size:12.1inch
  • Resolution:800×600
  • Brightness:450 cd/m²
  • Perspective:80/80/60/80
  • Interface:LVDS
  • Operating Temp.:-20 ~ 70 °C
  • Production State:Discontinued
  • Click For Price
  • Technical Parameters
  • IVO M121MNS1 R1 Application Details

    Basic Detail :Panel BrandIVOModel NameM121MNS1 R1
    Panel Typea-Si TFT-LCD , LCMAnother Name
    Panel Size12.1”Designed ForIndustrial
    Maximum Ratings :OP Temperature-20 ~ 70 °CST Temperature-30 ~ 80 °C
    RoHSRoHSVibration Level
    Features :WLED Backlight, Life>=50K hours,With LED Driver,180°;Reverse, Matte


    IVO M121MNS1 R1 Optical Details

    Basic Information :Luminance450  cd/m² (Min.)Contrast Ratio800:1 (Typ.) (Transmissive)
    Good View at6 o'clockResponse Speed7/23 (Typ.)(Tr/Td) (ms)
    Viewing Angle80/80/60/80 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
    Color Performance :ChromaticityWx:0.300; Wy:0.315Display Colors262K (6-bit)
    Color Temperature7435KWhite Variation1.33 (Max.)(5 points)
    1931 Color Gamlt :NTSC Ratio55%sRGB76% coverage
    Adobe RGB57% coverageDCI-P357% coverage
    Rec.202041% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


    IVO M121MNS1 R1 Mechanical Details

    Pixel Features :Number of Pixel800(RGB)*600 [SVGA]ArrangementRGB Vertical Stripe
    Dot Pitch (mm)0.1025*0.3075 mmPixel Pitch (mm)0.3075*0.3075 mm  [82PPI]
    Physical Size :Active Viewing(mm)246(W)*184.5(H) mmBezel Area (mm)249.0(W)*187.5(H) mm
    Outline Dim. (mm)276(W)*209(H) mmOutline Depth9.1±0.5 mm
    Outline Features :Form StyleFlat RectangleOutline Shape
    Aspect Ratio4:3 (H:V)OrientationLandscape type
    Holes & Brackets :Face mounting holes (2-Φ3.4, 2-R1.7) on left, right bezel
    Other Features :Weight700g (Max.)SurfaceAntiglare, Hard coating (3H)


    IVO M121MNS1 R1 Electronics Details

    Frame Frequency :60Hz
    Reverse Scan :Yes (180°)


    IVO M121MNS1 R1 Interface Details

    Signal Systerm :LVDS (2 ch, 6-bit)
    Signal Electrical :Voltage Input3.3V (Typ.)Current Input270/350mA (Typ./Max.)
    Consumption-
    Interface Features :Position-Physical TypeConnector
    Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
    STARCONN076B20-0048RA-G41.25mm20pins1 pcsLVDS-20P1C6B-070F


    IVO M121MNS1 R1 Backlight Details

    Lamp Features :Lamp TypeWLEDQuantity-PositionEdge light type
    Exchange
    -
    Lamp Shape-Lamp Life50K(Min.) Hours
    Interface Features :Position-Physical TypeConnector
    Interface Detail :BrandModelPitchPinsQuantityPin Configuration
    JSTSM06B-SHLS-TF1.0mm6pins1 pcs-
    Backlight Driver :With LED Driver
    Driver Electrical :Voltage Supply12.0±1.8VCurrent Supply570/670mA (Typ./Max.)


    IVO M121MNS1 R1 Packing Details

    Package Box :AmountSize (L*W*H)Weight
    30 pcs / box520*370*315 mm23.0 Kgs
