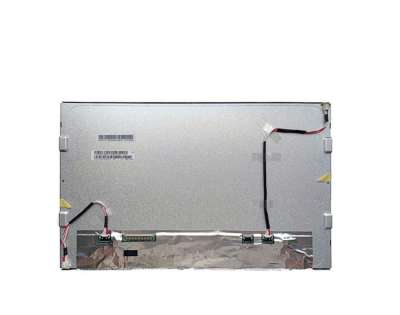

1、IVO M156GWFA R0 Application Details
Basic Info : | Panel Brand | IVO | Panel Model | M156GWFA R0 |
Diagonal Size | 10.1" | Application | Industrial，Outdoor High Brightness，Automotive Display | |
Panel Type | a-Si TFT-LCD , LCM | |||
Reliability : | Operating Temp. | -30 ~ 85 °C | Storage Temp. | -30 ~ 85 °C |
RoHS State | RoHS | Vibration Rating | 2.9G (28.4 m/s²) | |
Specific Features : | Wide Temperature，3G Vibration，Ultra High Brightness，Life≥50K hours，WLED Backlight，With LED Driver，Matte | |||
2、IVO M156GWFA R0 Mechanical Details
Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.05975×0.17925 mm (H×V) |
Configuration | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.17925×0.17925 mm (H×V) [141PPI] | |
Mechanical Size : | Display Area | 344.16×193.59 mm (H×V) | Bezel Area | 347.06×196.49 mm (H×V) |
Outline Dim. | 363.8×215.9 mm (H×V) | Orientation | Landscape type | |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:9 (H:V) | Shape Style | ||
Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
Other Features : | Weight | 960g (Max.) | Surface | Antiglare, Hard coating (3H) |
3、IVO M156GWFA R0 Optical Details
Basic Information : | Brightness | 1000 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
Viewing Direction | Symmetry | Response Time | 35 (Typ.)(Tr+Td) (ms) | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
Color Temperature | 6485K | Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
4、IVO M156GWFA R0 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
Power Consumption : | 27.8W (Max.) |
5、IVO M156GWFA R0 Backlight Details
Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 50K(Min.) (Hours) |
Replacement | - | Lamp Shape | - | Position | Edge light type | |
Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
STM | MSB24038P5A | 1.25 mm | 5 pins | 1 pcs | ||
Driver Electrical : | Voltage Input | 12.0±1.2V | Current Input | - | ||
Consumption | 26.3W (Max.) | |||||
6、IVO M156GWFA R0 Interface Detail
Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - | |||
Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 0.45A (Max.) | ||
Consumption | 1.5W (Max.) | |||||
Interface Features : | Type | Connector | Position | - | ||
Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
STM | MSBKT2407P30HB | 1.0mm | 30 pins | 1 pcs | ||
7、IVO M156GWFA R0 Carton Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
14 | N/A | N/A |
