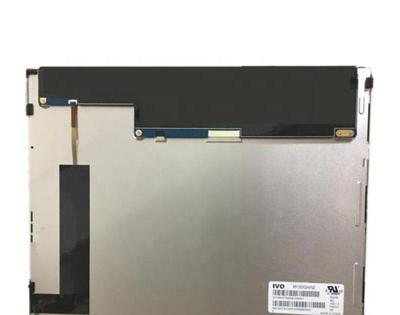

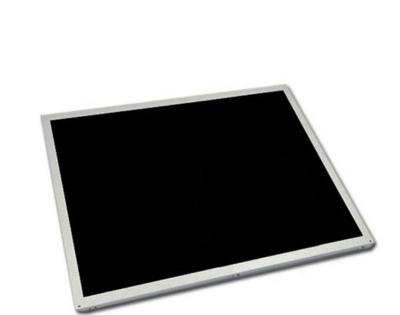

IVO M150GNN2 R0 Application Details
| Basic Detail : | Panel Brand | IVO | Model Name | M150GNN2 R0 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | M150GNN2-R0 | |
| Panel Size | 15.0” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -30 ~ 85 °C |
| RoHS | RoHS | Vibration Level | ||
| Features : | Wide Temperature,WLED Backlight, Life>=50K hours,With LED Driver,180°C;Reverse, Matte | |||
IVO M150GNN2 R0 Optical Details
| Basic Information : | Luminance | 500 cd/m² (Min.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 25 (Typ.)(Tr+Td) ms | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.305; Wy:0.325 | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6974K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 70% | sRGB | 89% coverage |
| Adobe RGB | 70% coverage | DCI-P3 | 73% coverage | |
| Rec.2020 | 52% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
IVO M150GNN2 R0 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)*768, XGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (mm) | 0.099*0.297 mm | Pixel Pitch (mm) | 0.297*0.297 mm [85PPI] | |
| Physical Size : | Active Viewing(mm) | 304.128(W)*228.096(H) mm | Bezel Area (mm) | 307.4(W)*231.3(H) mm |
| Outline Dim. (mm) | 326.5(W)*253.5(H) mm | Outline Depth | 12.0 (Typ.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 930g (Typ.) | Surface | Antiglare, Hard coating (3H) |
IVO M150GNN2 R0 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | Yes (180°) |
IVO M150GNN2 R0 Interface Details
| Signal Systerm : | LVDS (1 ch, 8-bit) | |||||||
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 0.25A (Typ.) | ||||
| Consumption | 1.3W (Max.) | |||||||
| Interface Features : | Position | - | Physical Type | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||
| STM | MSB240420HD | 1.25mm | 20pins | 1 pcs | ||||
IVO M150GNN2 R0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type (Bottom side) | ||||||
| Exchange | - | Lamp Shape | - | Lamp Life | 50K(Min.) Hours | |||||||
| Interface Features : | Position | - | Physical Type | Connector | ||||||||
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration | ||||||
| STM | MSB24038P5A | 1.25mm | 5pins | 1 pcs | - | |||||||
| Backlight Driver : | With LED Driver | |||||||||||
| Driver Electrical : | Voltage Supply | 10.8/12.0/12.6V (Min./Typ./Max.) | Current Supply | - | ||||||||
| Consumption | 12.5W (Max.) | |||||||||||
IVO M150GNN2 R0 Packing Details
| Package Box : | Amount | Size (L*W*H) | Weight |
| 15 pcs / box | 433*370*372 mm | 19.0 Kgs |
