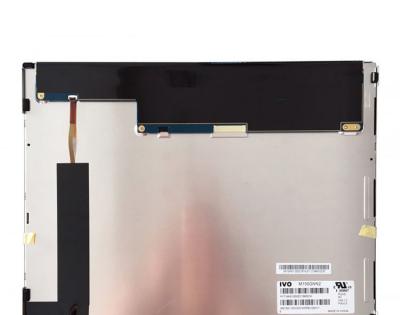

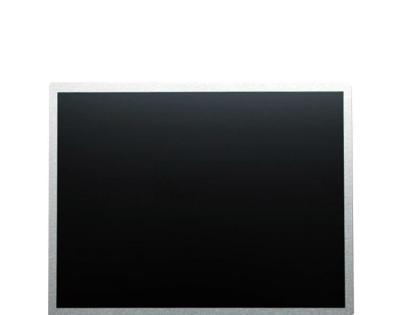

  • Industrial IVO 15 inch 1024x768 4:3 TFT LCD Panel LVDS Display M150GNN2 R1
  • Industrial IVO 15 inch 1024x768 4:3 TFT LCD Panel LVDS Display M150GNN2 R1
  • Model:M150GNN2 R1
  • Brand:IVO
  • Size:15.0inch
  • Resolution:1024×768
  • Brightness:420 cd/m²
  • Perspective:80/80/80/80
  • Interface:LVDS
  • Operating Temp.:-20 ~ 70 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • IVO M150GNN2 R1 Application Details

    Basic Detail :Panel BrandIVOModel NameM150GNN2 R1
    Panel Typea-Si TFT-LCD , LCMAnother NameM150GNN2-R1
    Panel Size15.0”Designed ForIndustrial
    Maximum Ratings :OP Temperature-20 ~ 70 °CST Temperature-30 ~ 80 °C
    RoHSRoHSVibration Level
    Features :WLED Backlight, With LED Driver,180°;Reverse, Matte


    IVO  M150GNN2 R1  Optical Details

    Basic Information :Luminance420 cd/m²(Typ.)Contrast Ratio800:1 (Typ.) (Transmissive)
    Good View at6 o'clockResponse Speed16 (Typ.)(Tr+Td) ms
    Viewing Angle80/80/80/80 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
    Color Performance :ChromaticityWx:0.305; Wy:0.325Display Colors16.7M (6-bit + Hi-FRC)

    Color Temperature
    6974KWhite Variation1.25/1.33 (Typ./Max.)(9 points)
    1931 Color Gamlt :NTSC Ratio70%sRGB91% coverage
    Adobe RGB71% coverageDCI-P373% coverage
    Rec.202052% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


    IVO  M150GNN2 R1 Mechanical Details

    Pixel Features :Number of Pixel1024(RGB)*768, XGAArrangementRGB Vertical Stripe
    Dot Pitch (mm)0.099*0.297 mmPixel Pitch (mm)0.297*0.297 mm  [85PPI]
    Physical Size :Active Viewing(mm)304.128(W)*228.096(H) mmBezel Area (mm)307.4(W)*231.3(H) mm
    Outline Dim. (mm)326.5(W)*253.5(H) mmOutline Depth12.0±0.5 mm
    Outline Features :Form StyleFlat RectangleOutline Shape
    Aspect Ratio4:3 (H:V)OrientationLandscape type
    Holes & Brackets :Side mounting holes (4-M3) on left, right bezel
    Other Features :Weight930/960g (Typ./Max.)SurfaceAntiglare, Hard coating (3H)


    IVO  M150GNN2 R1 Electronics Details

    Frame Frequency :60Hz
    Reverse Scan :Yes (180°)


    IVO  M150GNN2 R1  Interface Details

    Signal Systerm :LVDS (1 ch, 8-bit)
    Signal Electrical :Voltage Input3.3V (Typ.)Current Input0.25A (Typ.)
    Consumption1.3W (Max.)
    Interface Features :Position-Physical TypeConnector
    Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
    STMMSB240420HD1.25mm20pins1 pcsLVDS-20P1C8B-060C


    IVO  M150GNN2 R1 Backlight Details

    Lamp Features :Lamp TypeWLEDQuantity-PositionEdge light type (Bottom side)
    Exchange
    -
    Lamp Shape-Lamp Life30K(Min.) Hours
    Interface Features :Position-Physical TypeConnector
    Interface Detail :BrandModelPitchPinsQuantityPin Configuration
    STMMSB24038P5A1.25mm5pins1 pcs-
    Backlight Driver :With LED Driver
    Driver Electrical :Voltage Supply10.8/12.0/12.6V (Min./Typ./Max.)Current Supply-
    Consumption7.5W (Max.)


    IVO  M150GNN2 R1 Packing Details

    Package Box :AmountSize (L*W*H)Weight
    15 pcs / box433*370*372 mm19.0 Kgs
