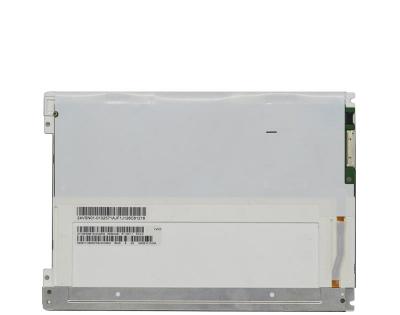

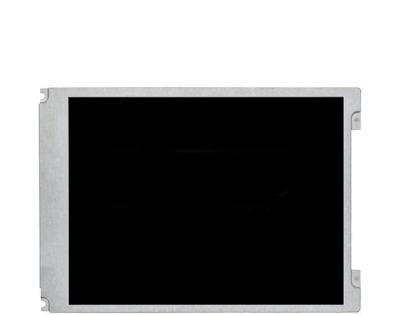

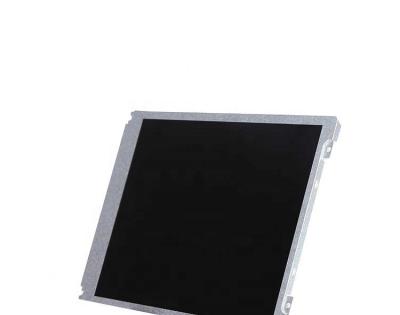

IVO M084GNS1 R1 Application Details
| Basic Detail : | Panel Brand | IVO | Model Name | M084GNS1 R1 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 8.4” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| RoHS | RoHS | Vibration Level | ||
| Features : | WLED Backlight,Life>=50K hours,With LED Driver,U/D,L/R Reverse,6/8 bit,Matte | |||
IVO M084GNS1 R1 Optical Details
| Basic Information : | Luminance | 350 cd/m²(Min.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
| Good View at | 12 o'clock | Response Speed | 16 (Typ.)(Tr+Td) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
Color Temperature | 6638K | White Variation | 1.33/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 49% | sRGB | 69% coverage |
| Adobe RGB | 52% coverage | DCI-P3 | 51% coverage | |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
IVO M084GNS1 R1 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)*600, SVGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (mm) | 0.071*0.213 (H*V) | Pixel Pitch (mm | 0.213*0.213 (H*V) [119PPI] | |
| Physical Size : | Active Viewing(mm) | 170.4(H) *127.8(V) | Bezel Area (mm) | 173.4(H) *131.2(V) |
| Outline Dim. (mm) | 203(H) *142.5(V) | Outline Depth | 5.7±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Face mounting holes (4 pcs) on left, right bezel | |||
| Other Features : | Weight | 200/220g (Typ./Max.) | Surface | Antiglare |
IVO M084GNS1 R1 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Total Consumption : | 2.81W (Max.) |
IVO M084GNS1 R1 Interface Details
| Signal Systerm : | LVDS (2 ch, 6/8-bit) | |||||||
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 0.14A (Max.) | ||||
| Consumption | 0.5W (Max.) | |||||||
| Interface Features : | Position | - | Physical Type | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||
| STM | MSB24013P20 | 1.0mm | 20pins | 1 pcs | - | |||
IVO M084GNS1 R1 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 8S4P | Position | Edge light type | ||||||
| Exchange | - | Lamp Shape | 4strings | Lamp Life | 50K(Typ.) (Hours) | |||||||
| Interface Features : | Position | - | Physical Type | Connector | ||||||||
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration | ||||||
| STM | MSB24038P4 | 1.25mm | 4pins | 1 pcs | - | |||||||
| Backlight Driver : | With LED Driver | |||||||||||
| Driver Electrical : | Voltage Supply | 12.0±1.2V | Current Supply | - | ||||||||
| Consumption | 2.31W (Max.) | |||||||||||
IVO M084GNS1 R1 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 40 pcs / box | - | - |
