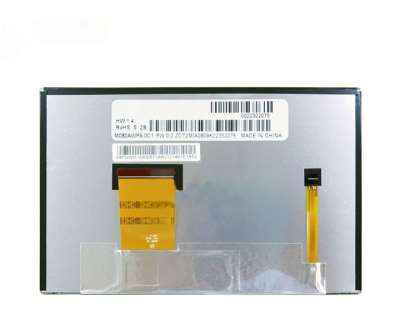

1、IVO M080AWP9 R0 Application Details
Basic Info : | Panel Brand | IVO | Panel Model | M080AWP9 R0 |
Diagonal Size | 8.0" | Application | Automotive Display | |
Panel Type | a-Si TFT-LCD , LCM | |||
Reliability : | Operating Temp. | -30 ~ 85 °C | Storage Temp. | -40 ~ 95 °C |
RoHS State | RoHS | |||
Specific Features : | Wide Temperature，Hight Brightness，WLED Backlight，U/D,L/R Reverse，Matte | |||
2、IVO M080AWP9 R0 Mechanical Details
Pixel Features : | Pixel Format | 800(RGB)×480, WVGA | Dot Pitch | 0.073×0.219 mm (H×V) |
Configuration | RGB Vertical Stripe | Pixel Pitch | 0.219×0.219 mm (H×V) [115PPI] | |
Mechanical Size : | Display Area | 175.2×105.12 mm (H×V) | Outline Dim. | 177.4×107.32 mm (H×V) |
Outline Dim. | 186.5×117.22 mm (H×V) | Outline Depth | 6.05/6.65 (Typ./Max.) mm | |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 15:9 (H:V) | Shape Style | ||
Holes & Brackets : | Without | |||
Other Features : | Weight | 195/215g (Typ./Max.) | Surface | Antiglare |
3、IVO M080AWP9 R0 Optical Details
Basic Information : | Brightness | 750 cd/m² (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
Viewing Direction | - | Response Time | 13 (Typ.)(Tr+Td) ms | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K (6-bit) |
Color Temperature | 6485K | Uniformity | - | |
1931 Color Gamut : | NTSC Ratio | 76% | sRGB | 97% coverage |
Adobe RGB | 78% coverage | DCI-P3 | 79% coverage | |
Rec.2020 | 57% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
4、IVO M080AWP9 R0 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | Yes (U/D, L/R) |
Power Consumption : | 4.1W (Max.) |
Time Controller (T-CON) : | Embedded T-CON |
5、IVO M080AWP9 R0 Backlight Details
Back-light Features : | Lamp Type | WLED | Amount | 7S3P | Life Time | 30K(Min.) Hours |
Replacement | - | Lamp Shape | 3 strings | Position | Edge light type | |
Lamp Electrical : | Voltage Input | 18.9/23.8V (Min./Max.) | Current Input | 55mA (Typ.) | ||
Consumption | 3.92W (Max.) | |||||
Interface Features : | Type | FPC | Position | - | Lamp Driver | No |
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
10 pins | 1 pcs | |||||
6、IVO M080AWP9 R0 Interface Details
Signal Systerm : | Parallel RGB (1 ch, 6-bit) | Logic Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||
Signal Electrical : | Voltage Input | 3.3/10.6/22/-7.0V (Typ.)(VCC/VDDA/VGH/VGL) | Current Input | 10.55/12.65/0.34/0.34mA (Typ.)(ICC/IDDA/IGH/IGL) | ||
Interface Features : | Type | FPC | Position | - | ||
FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
0.5 mm | 60 pins | 1 pcs | ||||
7、IVO M080AWP9 R0 Carton Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
40 | N/A | N/A |
