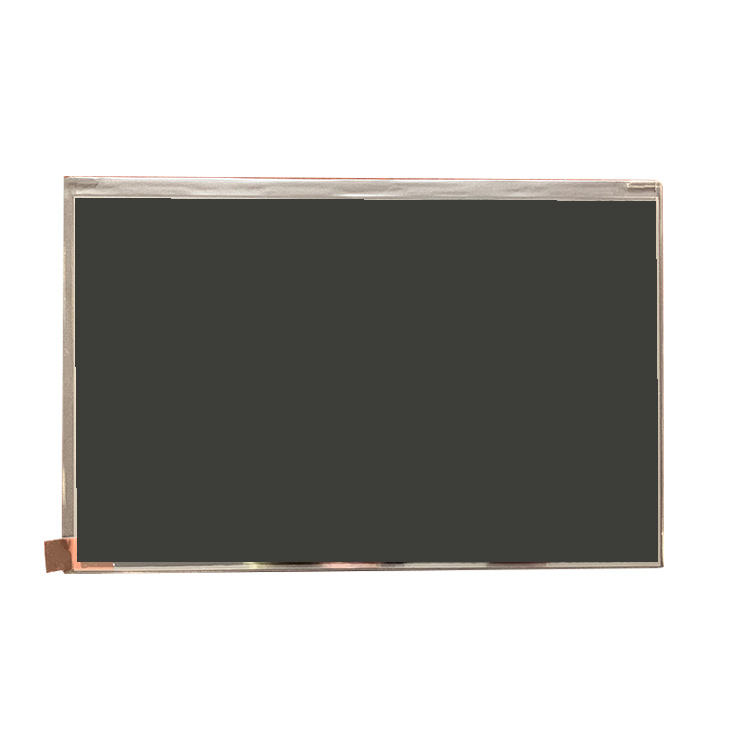

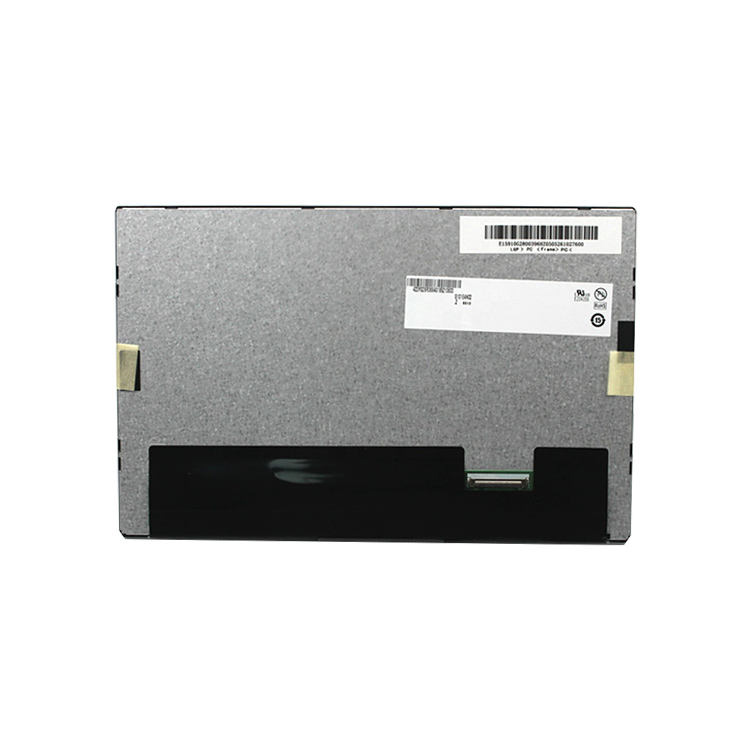

AUO G101EAN02.4 Application Details
| Basic Info : | Panel Brand | AUO | Panel Model | G101EAN02.4 |
| Diagonal Size | 10.1" | Application | Industrial |
| Panel Type | a-Si TFT-LCD , LCM | | |
Reliability :
| Operating Temp. | 0 ~ 60 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | RoHS | Vibration Rating | 1.5G (14.7 m/s²)
|
| Specific Features : | WLED Backlight，With LED Driver，Reverse I/F |
AUO G101EAN02.4 Mechanical Details
| Pixel Features : | Pixel Format | 1280(RGB)*800, WXGA | Dot Pitch | 0.0565*0.1695 mm (H*V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1695*0.1695 mm (H*V) [149PPI] |
Mechanical Size :
| Display Area | 216.96*135.6 mm (H*V) | Outline Dim. | - |
| Outline Dim. | 227.72*147.8 mm (H*V) | Outline Depth | 2.67/4.8 (Typ./Max.) mm |
Outline Features :
| Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:10 (H:V) | Shape Style | |
| Holes & Brackets : | Without |
| Other Features : | Weight | 200g (Max.) | Surface | Hard coating |
AUO G101EAN02.4 Optical Details
| Brightness | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 800:1(Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AHVA, Normally Black, Transmissive |
| Viewing Direction | Symmetry | Response Time | 29 (Typ.)(Tr+Td) ms |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | Uniformity | 1.43 (Max.)(5 points) |
| 1931 Color Gamut : | NTSC Ratio | 47% | sRGB | 66% coverage |
| Adobe RGB | 49% coverage | DCI-P3 | 49% coverage |
| Rec.2020 | 35% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G101EAN02.4 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 4.314W (Max.) |
AUO G101EAN02.4 Backlight Details
| Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 20K(Min.) Hours |
| Replacement | - | Lamp Shape | - | Position | Edge light type |
| Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 12V (Typ.) | Current Input | 222/252mA (Typ./Max.) |
| Consumption | 2.66/3.02W (Typ./Max.) |
AUO G101EAN02.4 Interface Details
| Signal Systerm : | eDP (1 Lane) | | Logic Voltage | - | |
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | | Current Input | 357.6/388.8mA (Typ./Max.) |
| Consumption | 1.18/1.29W (Typ./Max.) | | | |
| Interface Features : | Type | Connector | | Position | Down middle of panel |
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| STM | MSAK24025P30 | 0.5 mm | 30 pins | 1 pcs | EDP-30P1L-030A |
AUO G101EAN02.4 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 40 pcs / box | - | 484*328*257 mm |
-
