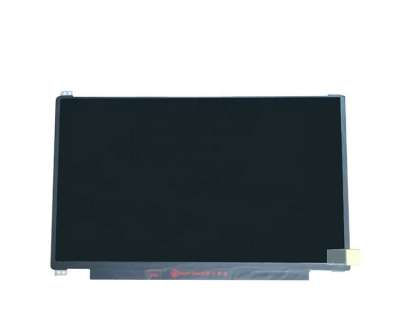

1.AUO G133HAN03.1 Application Details
Basic Info : | Panel Brand | AUO | Panel Model | G133HAN03.1 |
Diagonal Size | 13.3" | Application | Industrial |
Panel Type | a-Si TFT-LCD , LCM | Model Alias | - |
Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
RoHS State | RoHS | Vibration Rating | 1.5G (14.7 m/s²) |
Specific Features : | WLED Backlight，With LED Driver，Matte |
2.AUO G133HAN03.1 Mechanical Details
Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.051×0.153 mm (H×V) |
Configuration | RGB Vertical Stripe | Pixel Pitch | 0.153×0.153 mm (H×V) [166PPI] |
Mechanical Size : | Display Area | 293.76×165.24 mm (H×V) | Bezel Area | - |
Outline Features :
| Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:9 (H:V) | Shape Style |
|
Other Features : | Weight | - | Surface
| Antiglare |
3.AUO G133HAN03.1 Optical Details
Basic Information : | Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AHVA, Normally Black, Transmissive |
Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) (ms) |
Color Performance :
| Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.2M (6-bit + FRC) |
Color Temperature | 6485K | White Uniformity | 1.25 (Typ.)(5 points) |
4.AUO G133HAN03.1 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
5.AUO G133HAN03.1 Backlight Details
Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 30K(Typ.) (Hours) |
Replacement | No | Amount | - | Position | Edge light type |
Interface Features : | Type | Included in signal interface | Position | - | Lamp Drive | With LED Driver |
6.AUO G133HAN03.1 Interface Details
Signal Systerm : | eDP (2 Lanes), eDP1.2 | Logic Voltage | - |
Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 364mA (Max.) |
Consumption | 1.2W (Max.) |
Interface Features : | Type | Connector | Position | - |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G133HAN03.1. Please include your application and required quantity so we can confirm the applicable revision.
