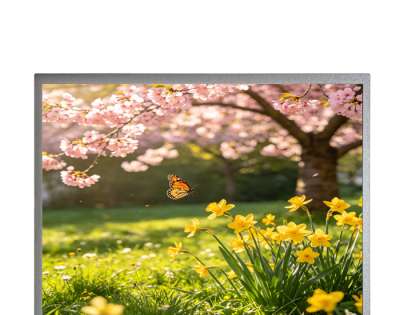

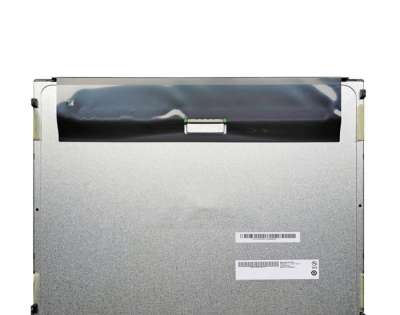

1.AUO G170ETN02.1 Application Details
Basic Info : | Panel Brand | AUO | Panel Model | G170ETN02.1 |
Diagonal Size | 17.0" | Application | Industrial,Outdoor High Brightness |
Panel Type | a-Si TFT-LCD , LCM |
|
|
Reliability : | Operating Temp. | -30 ~~ 85 °C | Storage Temp. | -30 ~~ 85 °C |
RoHS State | RoHS | Vibration | 1.5G (14.7 m/s²) |
Specific Features : | Wide Temperature,Hight Brightness,WLED Backlight,Life≥50K hours，Upside I/F,Matte |
2.AUOG170ETN02.1 Mechanical Details
Pixel Features : | Pixel Format | 1280(RGB)×1024, SXGA | Dot Pitch(W×H) | 0.088×0.264 mm (H×V) |
Configuration | RGB Vertical Stripe | Pixel Pitch(W×H) | 0.264×0.264 mm (H×V) [96PPI] |
Mechanical Size : | Active Viewing | 337.92×270.336 mm (H×V) | Bezel Area. | 341.6×274.0 mm (H×V) |
Outline Dim. | 358.5×296.5 mm (H×V) | Depth(mm) | 12.45 (Max.) mm |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 5:4 (H:V) | Shape Style |
|
Mounting : | Side mounting holes (4-M3) on left, right bezel |
Other Features : | Weight | 1.59Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
3.AUO G170ETN02.1 Optical Details
Basic Information : | Brightness | 800 cd/m² | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive |
Viewing Direction | - | Response Time | 15/5 (Typ.)(Tr/Td) ms |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
Color Temperature | 6485K | White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
1931 Color Gamut : | NTSC Ratio | 71% | sRGB | 92% coverage |
Adobe RGB | 71% coverage | DCI-P3 | 74% coverage |
Rec.2020 | 53% coverage | Low Blue Light | - |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
4.AUO G170ETN02.1 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
Power Consumption : | 18.4W (Max.) |
5.AUO G170ETN02.1 Backlight Details
Lamp Features: | Lamp Type | WLED | Amount | 10S4P | Life Time | 50K(Min.) Hours |
Replacement | No | Lamp Shape | 4 strings | Position | Edge light type (Top and Bottom) |
WLED Electrical : | Input Voltage | 31/34V (Typ./Max.) | Input Current | 100mA (Typ.) |
|
Power Usage | 12.4/13.6W (Typ./Max.) |
Interface Features : | Position | Down left corner | Type | Connector |
Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
E&T | 3707K-S06N-00L | 1pcs | 6pins | 1.0mm | BLE-6PINS-CCAACC |
Backlight Driver : | No |
6.AUO G170ETN02.1 Interface Detail
Signal Systerm : | LVDS (2 ch, 8-bit) | Consumption | 4/4.5W (Typ./Max.) |
Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 0.8/1.0A (Typ./Max.) |
Interface Features : | Type | Connector | Position | Upper middle of panel |
Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
HRS | MDF76URW-30S-1H | 1pcs | 30pins | 1.0mm | LVDS-30P2C8B-200A |
7.AUO G170ETN02.1 Packing Details
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 8 | 1 | 448×283×397 mm | 13.5 | 0.0503 |
