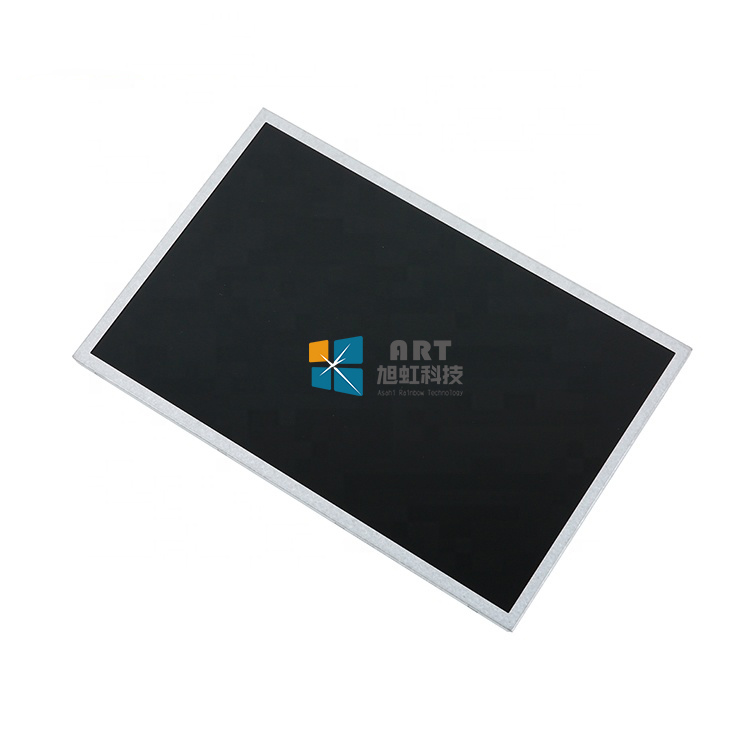

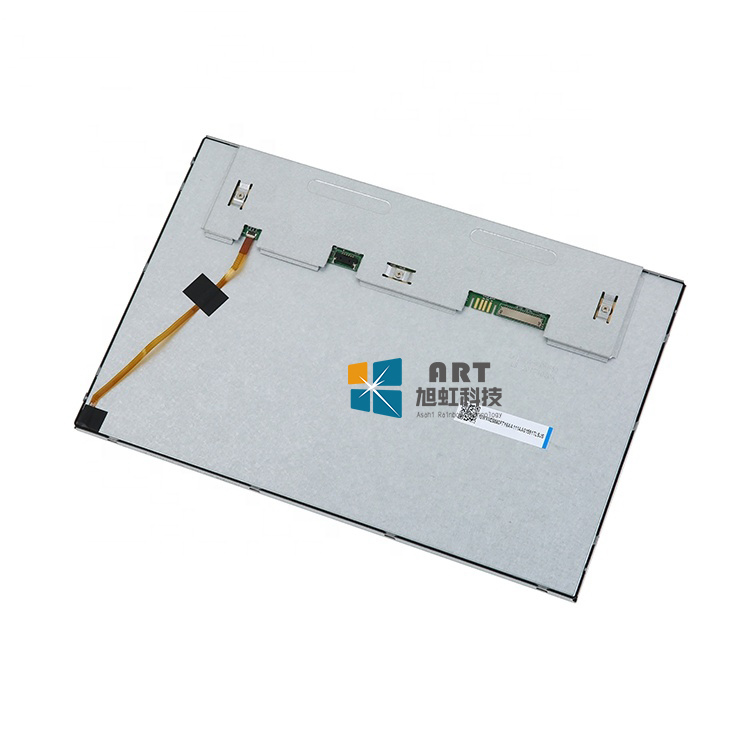

BOE AV121X0M-N10 Application Details
| Basic Detail : | Panel Brand | BOE | Model Name | AV121X0M-N10 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 12.1” | Designed For | Industrial,Automotive Display | |
| Maximum Ratings : | OP Temperature | -20 ~ 85 °C | ST Temperature | -30 ~ 85 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | Hight Brightness,WLED Backlight | |||
BOE AV121X0M-N10 Optical Details
| Basic Information : | Luminance | 600 cd/m² (Min.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 30 (Typ.)(Tr+Td) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.311; Wy:0.310 | Display Colors | 16.2M (8-bit) |
| Color Temperature | 6789K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 69% | sRGB | 92% coverage |
| Adobe RGB | 71% coverage | DCI-P3 | 71% coverage | |
| Rec.2020 | 51% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
BOE AV121X0M-N10 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)*768, XGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (mm) | 0.080*0.240 (H×V) | Pixel Pitch (mm) | 0.240*0.240 (H*V) [105PPI] | |
| Physical Size : | Active Viewing(mm) | 245.76(H) *184.32(V) | Bezel Area (mm) | 257.68(H) *187.32(V) |
| Outline Dim. (mm) | 265.5(H) *206.3(V) | Outline Depth | 8/13.5 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Rear mounting Pole | |||
| Other Features : | Weight | TBD | Surface | - |
BOE AV121X0M-N10 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 10.1/11.8W (Typ./Max.) |
BOE AV121X0M-N10 Interface Details
| Signal Systerm : | LVDS (1 ch, 8-bit) | |||||||
| Signal Electrical : | Voltage Input | 3.3/11.5/17.0/-9.0V (Typ.)(VCC/AVDD/VGH/VGL) | Current Input | - | ||||
| Consumption | 1.2/2.0W (Typ./Max.) | |||||||
| Interface Features : | Position | - | Physical Type | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||
| IRISO | IMSA-9686S-30B-GF4N | 0.5mm | 30pins | 1 pcs | ||||
BOE AV121X0M-N10 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 8S6P | Position | Edge light type | ||||||
| Exchange | - | Lamp Shape | 6 strings | Lamp Life | 30K(Min.) (Hours) | |||||||
| Lamp Electrical : | Voltage Supply | 24.0V (Typ.) | Current Supply | 60mA (Typ.) | ||||||||
| Consumption | 8.64±0.86W | |||||||||||
| Interface Features : | Position | - | Physical Type | Connector | ||||||||
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration | ||||||
| IRISO | IMSA-9686S-10B-GF4N | 0.5 mm | 10pins | 1 pcs | BLE-10PINS-AANCCCCCCN | |||||||
| Backlight Driver : | No | |||||||||||
BOE AV121X0M-N10 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 11 pcs / box | - | 545*380*270 mm |
