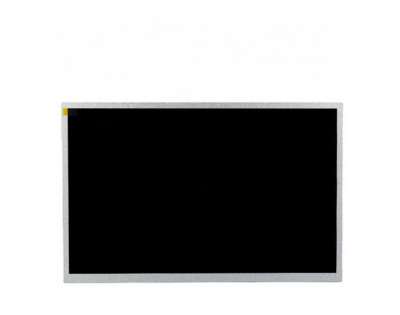

1、BOE EV156FHM-N11 Application Details
Basic Detail : | Manufacturer | BOE | Model Name | EV156FHM-N11 |
Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
Panel Size | 15.6 inch | Designed For | Industrial，Medical imaging | |
Maximum Ratings : | OP Temperature | 0 ~ 70 °C | ST Temperature | -20 ~ 80 °C |
RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
Features : | Srgb,WLED Backlight，Life≥50K hours，With LED Driver，Matte | |||
2、BOE EV156FHM-N11 Optical Details
Basic Detail : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) ms | |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
1931 Color Gamut : | NTSC Ratio | 79% | sRGB | 99% coverage |
Adobe RGB | 80% coverage | DCI-P3 | 82% coverage | |
Rec.2020 | 59% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3、BOE EV156FHM-N11 Mechanical Details
Pixel Features : | Number of Pixel | 1920(RGB)×1080, FHD | Arrangement | RGB Vertical Stripe |
Dot Pitch(W×H) | 0.05975×0.17925 mm | Pixel Pitch(W×H) | 0.17925×0.17925 mm [141PPI] | |
Physical Size : | Active Viewing | 344.16×193.59 mm (H×V) | Bezel Area | - |
Outline Dim. | 363.8×216 mm (H×V) | Outline Depth | 9.9 (Max.) mm | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 16:9 (H:V) | Shape Style | ||
Fixation : | Side mounting holes (4-Φ3.0) on left, right bezel | |||
Other Detail : | Weight | 850g (Max.) | Surface | Antiglare (Haze 25%) |
4、BOE EV156FHM-N11 Electronics Details
Refresh Rate : | 60Hz |
Reverse Scan : | No |
Total Consumption : | 13.3W (Max.) |
5、BOE EV156FHM-N10 Interface Detail
Signal Electrical : | Input Current | 900mA (Typ.) | Input Voltage | 3.3V (Typ.) | ||
Consumption | 4.5W (Typ.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
Interface Features : | Position | - | Type | Connector | ||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment |
I-PEX | 20455-040E-66 | 0.5mm | 40 pins | 1 pcs | ||
6、BOE EV156FHM-N11 Backlight Details
Lamp Features : | Lamp Type | WLED | Amount | - | Position | Edge light type | |||
Exchange | - | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) | ||||
Interface Features : | Position | - | Type | Included in signal interface | |||||
Lamp Electrical : | Voltage Input | 12.0±1.2V | Current Input | - | |||||
Consumption | 7.8/8.8W (Typ./Max.) | ||||||||
Backlight Driver : | With LED Driver | ||||||||
7、BOE EV156FHM-N11 Carton Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
9 | 496×396×290 | N/A |
