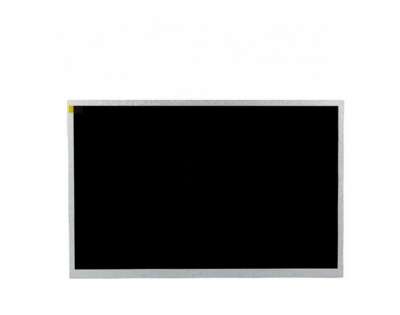

1、BOE NV156FHM-T00 Application Details
Basic Detail : | Manufacturer | BOE | Model Name | NV156FHM-T00 |
Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
Panel Size | 15.6 inch | Designed For | Laptop | |
Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
Features : | With Touch，WLED Backlight，With LED Driver，Reverse I/F,Glossy | |||
2、BOE NV156FHM-T00 Optical Details
Basic Detail : | Luminance | 250 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) ms | |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
Color Temperature | 6485K | White Variation | 1.25/1.67 (Max.)(5/13 points) | |
1931 Color Gamut : | NTSC Ratio | 45% | sRGB | 62% coverage |
Adobe RGB | 47% coverage | DCI-P3 | 47% coverage | |
Rec.2020 | 34% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3、BOE NV156FHM-T00 Mechanical Details
Pixel Features : | Number of Pixel | 1920(RGB)×1080, FHD | Arrangement | RGB Vertical Stripe |
Dot Pitch(W×H) | 0.05975×0.17925 mm | Pixel Pitch(W×H) | 0.17925×0.17925 mm[141PPI] | |
Physical Size : | Active Viewing | 344.16×193.59 mm (H×V) | Overall Dim. | 350.76(W)×223.74(H) mm |
Bezel Opening | - | Overall Depth | 3.05/3.2 (Typ./Max.) mm | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 16:9 (H:V) | Shape Style | Slim (PCBA Flat, T≤3.2mm) | |
Touchscreen : | TP Controller | With controller | Control Signal | USB (Win8, Win10) |
Touch Points | TP Technology | On-Cell Touch | ||
Fixation : | Face mounting holes (8 pcs) on up, down slugs | |||
Other Detail : | Weight | 385g (Max.) | Surface | Glare (Haze 0%), Hard coating (3H) |
4、BOE NV156FHM-T00 Electronics Details
Refresh Rate : | 60Hz |
Reverse Scan : | No |
Total Consumption : | 5.2W (Max.) |
5、BOE NV156FHM-T00 Interface Detail
Signal Electrical : | Input Current | 273/636mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
Consumption | 0.9/1.6W (Typ./Max.) | Signal Interface | eDP (2 Lanes) | |||
Interface Features : | Position | Right of Board | Type | Connector | ||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment |
I-PEX | 20455-040E-02 | 0.4mm | 40 pins | 1 pcs | ||
6、BOE NV156FHM-T00 Backlight Details
Lamp Features : | Lamp Type | WLED | Amount | 10S4P | Position | Edge light type (Bottom side) | |||
Exchange | - | Lamp Shape | 4 strings | Lamp Life | 50K(Min.) (Hours) | ||||
Interface Features : | Position | - | Type | Included in signal interface | |||||
Lamp Electrical : | Voltage Input | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Input | - | |||||
Consumption | 3.6W (Max.) | ||||||||
Backlight Driver : | With LED Driver | ||||||||
7、BOE NV156FHM-T00 Carton Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
38 | N/A | N/A |
