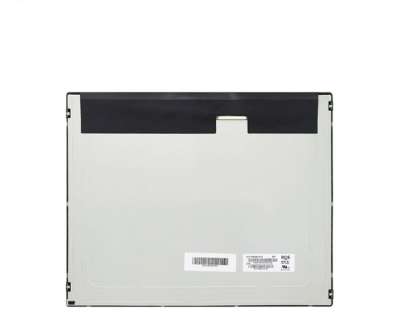

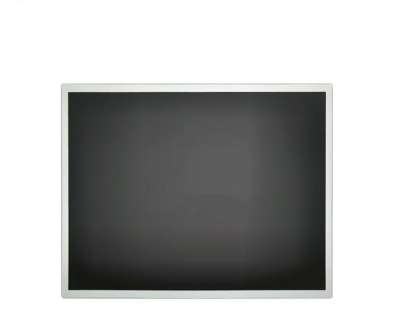

  • DV170E0M-N10 BOE 17 inch IPS TFT LCD Panel For digital signage
  • DV170E0M-N10 BOE 17 inch IPS TFT LCD Panel For digital signage
  • Model:DV170E0M-N10
  • Brand:BOE
  • Size:17.0inch
  • Resolution:1280×1024
  • Brightness:250 cd/m² (Typ.)
  • Perspective:89/89/89/89 (Typ.)
  • Interface:LVDS
  • Operating Temp.:0 ~ 50 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1BOE DV170E0M-N10 Application Details

    Basic Detail :

    Manufacturer

    BOE

    Model Name

    DV170E0M-N10

    Panel Type

    a-Si TFT-LCD , LCM



    Panel Size

    17.0 inch

    Designed For

    Digital Signage

    Maximum Ratings :

    OP Temperature

    0 ~ 50 °C

    ST Temperature

    -20 ~ 60 °C

    RoHS

    RoHS

    Vibration Level


    Features :

    Landscape/Portrait,Hight WLED BacklightUpside I/F, Matte


    2BOE DV170E0M-N10  Mechanical Details

    Pixel Features :

    Number of Pixel

    1280(RGB)×1024, SXGA

    Arrangement

    RGB Vertical Stripe

    Dot Pitch (mm)

    0.088×0.264   (H×V)

    Pixel Pitch (mm)

    0.264×0.264 (H×V)  [96PPI]

    Physical Size :

    Active Viewing (mm)

    337.92(H) × 270.336(V)

    Bezel Area(mm)


    341.72(H) × 274.14(V)

    Outline Dim.(mm)

    358.5(H) × 296.5(V)

    Depth(mm)

    8.7/10.8 (Typ./Max.)

    Outline Features :

    Form Shape

    Flat Rectangle

    Orientation

    Landscape type

    Aspect Ratio(W:H)

    5:4 (H:V)

    Shape Style


    Mounting :

    Side mounting holes (4-M2) on left, right   bezel

    Other Detail :

    Mass

    1.35Kgs   (Typ.)

    Surface

    Antiglare (Haze 25%), Hard coating (3H)


    3BOE DV170E0M-N10 Optical Details

    Basic Information :

    Luminance

    250 cd/m² (Typ.)

    Contrast Ratio

    1000:1 (Typ.) (Transmissive)

    Good View at

    Symmetry

    Response Speed

    20 (Typ.)(Tr+Td)

    Viewing Angle

    89/89/89/89 (Typ.)(CR10)

    Operating Mode

    HADS, Normally Black, Transmissive

    Color Performance :

    Chromaticity

    Wx:0.313; Wy:0.329

    Support Color

    16.7M (6-bit + Hi-FRC)

    Color Temperature

    6485K

    White Variation

    1.25/1.33 (Typ./Max.)(9 points)

    1931 Color Gamut :

    NTSC Ratio

    73%

    sRGB

    94% coverage

    Adobe RGB

    73% coverage

    DCI-P3

    76% coverage

    Rec.2020

    55% coverage

    Remarks

    sRGB (Rec.709, BT.709), Rec.2020   (BT.2020)



     4BOE DV170E0M-N10 Electronics Details

    Refresh Rate :

    60Hz

    Reverse Scan :

    No

    Total Consumption :

    10.92W (Typ.)



     5BOE DV170E0M-N10 Interface Details

    Signal Electrical :

    Input Current

    0.6/1.0A   (Typ./Max.)

    Input Voltage

    5.0V (Typ.)

    Consumption

    3.0/5.5W (Typ./Max.)

    Signal Interface

    LVDS (2 ch, 8-bit)

    Interface Features :

    Position

    Upper right of panel

    Physical Type

    Connector

    Interface Detail :

    Brand

    Model

    Pin Pitch

    Pins

    Amount

    Pin Assignment

    UJU

    IS100-L30O-C23

    1.0 mm

    30 pins

    1 pcs

    LVDS-30P2C8B-160A


    6BOE DV170E0M-N10  Lightting Details

    Lamp Features :

    Lamp Type

    WLED

    Amount

    12S4P

    Position

    Edge light type (Bottom side)

    Exchange

    -

    Lamp Shape

    4 strings

    Lamp Life

    30K(Min.) (Hours)

    Lamp Electrical :

    Input Voltage

    32.4/36/38.4V (Min./Typ./Max.)

    Input Current

    55mA (Typ.)

    Consumption

    7.13/7.92/8.45W (Min./Typ./Max.)

    Interface Features :

    Position

    Down left corner

    Physical Type

    Connector

    Interface Detail :

    Brand

    Model

    Pitch

    Pins

    Quantity

    Pin Configuration

    E&T

    3707K-S06N-21L

    1.0 mm

    6 pins

    1 pcs


    BLE-6PINS-CCAACC

    Backlight Driver :

    No













    7BOE DV170E0M-N10 Packing Details

    Box/Package

    Pcs/Package

    Package LWH (mm)

    G.W (kgs)

    14

    512×442×357

    N/A
