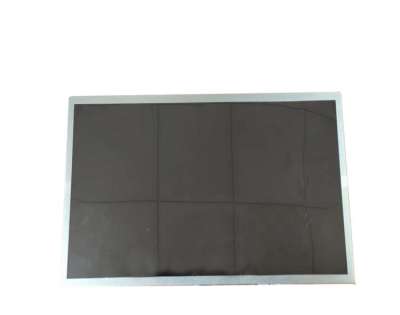

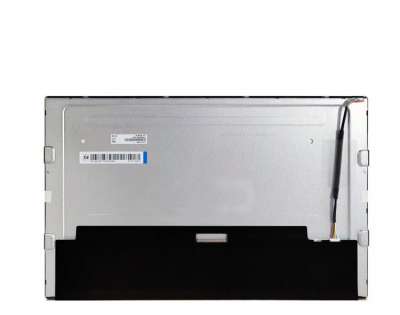

  • BOE 18.5 Inch FHD Screen TFT IPS Display GV185FHM-N10-3M30 350nits 30 pins LVDS
  • BOE 18.5 Inch FHD Screen TFT IPS Display GV185FHM-N10-3M30 350nits 30 pins LVDS
  • Model:GV185FHM-N10-3M30
  • Brand:BOE
  • Size:18.5inch
  • Resolution:1920×1080
  • Brightness:350 cd/m² (Typ.)
  • Perspective:85/85/85/85 (Typ.)
  • Interface:LVDS
  • Operating Temp.:-30 ~ 85 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1BOE GV185FHM-N10-3M30  Application Details

    Basic Detail :

    Manufacturer

    BOE

    Model Name

    GV185FHM-N10-3M30

    Panel Type

    a-Si TFT-LCD , LCM

    Another Name


    Panel Size

    18.5 inch

    Designed For

    Desktop MonitorIndustrial

    Maximum Ratings :

    OP Temperature

    -30 ~ 80 °C

    ST Temperature

    -30 ~ 80 °C

    RoHS

    RoHS

    Vibration Level

    1.5G (14.7 m/s²)

    Features :

    Wide TemperatureWLED BacklightWith LED DriverUpside I/F,Matte


    2BOE GV185FHM-N10-3M30  Optical Details

    Basic Detail :

    Luminance

    350 cd/m² (Typ.)

    Contrast Ratio

    1200:1 (Typ.) (Transmissive)

    Good View at

    Symmetry

    Response Speed

    30 (Typ.)(Tr+Td)

    Viewing Angle

    85/85/85/85 (Typ.)(CR10)

    Operating Mode

    ADS, Normally Black, Transmissive

    Color Performance :

    Chromaticity

    Wx:0.286; Wy:0.296

    Support Color

    16.7M (8-bit)

    Color Temperature

    9066K

    White Variation

    1.18/1.25 (Typ./Max.)(9 points)


    3BOE GV185FHM-N10-3M30  Mechanical Details

    Pixel Features :

    Number of Pixel

    1920(RGB)×1080, FHD

    Arrangement

    RGB Vertical Stripe

    Dot Pitch

    0.071×0.213 (H×V)

    Pixel Pitch(W×H)

    0.213×0.213 (H×V)  [119PPI]

    Physical Size :

    Active Viewing

    (mm)

    408.96(H) × 230.04(V)

    Bezel Area(mm)

    410.96(H) × 232.04(V)

    Outline Dim.

    (mm)

    430.4(H) × 254.6(V)

    Depth(mm)

    12.5 (Max.)

    Outline Features :

    Form Shape

    Flat Rectangle

    Orientation

    Landscape type

    Aspect Ratio(W:H)

    16:9

    Shape Style


    Fixation :

    Side mounting holes (4-M3) on left, right   bezel

    Other Detail :

    Mass

    1.80Kgs (Typ.)

    Surface

    Antiglare (Haze 25%), Hard coating (3H)



     4BOE GV185FHM-N10-3M30  Electronics Details

    Refresh Rate :

    60Hz

    Reverse Scan :

    No


    5BOE GV185FHM-N10-3M30  Interface Detail

    Signal Electrical :

    Input Current

    500mA (Typ.)

    Input Voltage

    5.0V (Typ.)

    Consumption

    -

    Signal Interface

    LVDS (2 ch, 8-bit)

    Interface Features :

    Position

    Upper middle of panel

    Type

    Connector

    Interface Detail :

    Brand

    Model

    Pitch

    Pins

    Amount

    Pin Assignment

    UJU

    IS100-L30O-C23

    1.0mm

    30 pins

    1 pcs



    6BOE GV185FHM-N10-3M30   Backlight Details

    Lamp Features :

    Lamp Type

    WLED

    Amount

    11S4P

    Position

    Edge light type (Bottom side)

    Exchange

    -

    Lamp Shape

    4strings

    Lamp Life

    -

    Lamp Electrical :



    Input Current


    300mA (Typ.)

    Input Voltage

    33V (Typ.)

    Consumption

    10W (Typ.)

    Interface Features :

    Position

    -

    Type

    Connector

    Interface Detail :

    Brand

    Model

    Pin Pitch

    Pins

    Amount

    Configuration


    CI4216S


    5 pins

    1 pcs


    Backlight Driver :

    With LED Driver

    Driver Electrical :

    Voltage Supply

    10.8/12.0/12.6V (Min./Typ./Max.)

    Current Supply

    1000mA (Typ.)

    Consumption

    12W (Typ.)
















    7BOE GV185FHM-N10-3M30  Carton Details

    Box Type

    Pcs/Box

    Package LWH (mm)

    G.W (kgs)

    9

    -

    -
