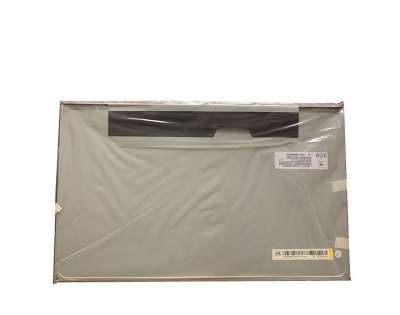

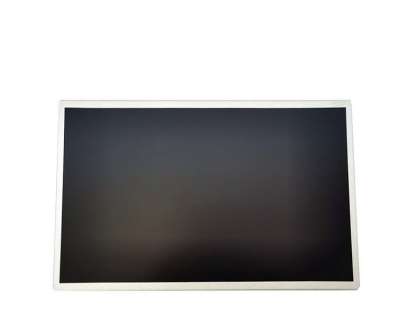

  • Original 18.5 inch 1366x768 WXGA BOE TFT LCD Panel DV185WHM-NM2 with 500 nits
  • Original 18.5 inch 1366x768 WXGA BOE TFT LCD Panel DV185WHM-NM2 with 500 nits
  • Model:DV185WHM-NM2
  • Brand:BOE
  • Size:18.5inch
  • Resolution:1366*768
  • Brightness:500 cd/m² (Typ.)
  • Perspective:89/89/89/89 (Typ.)
  • Interface:LVDS
  • Operating Temp.:0 ~ 50 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1BOE DV185WHM-NM2 Application Details

    Basic Detail :

    Manufacturer

    BOE

    Model Name

    DV185WHM-NM2

    Panel Type

    a-Si TFT-LCD , LCM



    Panel Size

    18.5 inch

    Designed For

    Digital Signage

    Maximum Ratings :

    OP Temperature

    0 ~ 50 °C

    ST Temperature

    -20 ~ 60 °C

    RoHS

    RoHS

    Vibration Level

    1.5G (14.7 m/s²)

    Features :

    SrgbWLED BacklightLife50K hoursUpside I/F, Matte


    2BOE DV185WHM-NM2 Mechanical Details

    Pixel Features :

    Number of Pixel

    1366(RGB)×768, WXGA

    Arrangement

    RGB Vertical Stripe

    Dot Pitch (mm)

     0.100×0.300   mm (H×V)

    Pixel Pitch (mm)

    0.300×0.300 mm (H×V)  [84PPI]

    Physical Size :

    Active Viewing (mm)

    409.8×230.4 mm (H×V)

    Bezel Area(mm)


     413.4×234.0   mm (H×V)

    Outline Dim.(mm)

    430.4×254.6 mm (H×V)

    Depth(mm)

    7.7/11.4 (Typ./Max.) mm

    Outline Features :

    Form Shape

    Flat Rectangle

    Orientation

    Landscape type

    Aspect Ratio(W:H)

    16:9 (H:V)

    Shape Style


    Mounting :

    Without

    Other Detail :

    Mass

    1.30Kgs   (Typ.)

    Surface

    Antiglare (Haze 25%), Hard coating (3H)


    3BOE DV185WHM-NM2 Optical Details

    Basic Information :

    Luminance

    500 cd/m² (Typ.)

    Contrast Ratio

    1000:1 (Typ.) (Transmissive)

    Good View at

    Symmetry

    Response Speed

    14 (Typ.)(G to G) ms

    Viewing Angle

    89/89/89/89 (Typ.)(CR10)

    Operating Mode

    ADS,   Normally Black, Transmissive

    Color Performance :

    Chromaticity

    Wx:0.313; Wy:0.329

    Support Color

    16.7M (6-bit + Hi-FRC)

    Color Temperature

    6485K

    White Variation

    1.25/1.33 (Typ./Max.)(9 points)

    1931 Color Gamut :

    NTSC Ratio

    75%

    sRGB

    99% coverage

    Adobe RGB

    77% coverage

    DCI-P3

    78% coverage

    Rec.2020

    56% coverage

    Remarks

    sRGB (Rec.709, BT.709), Rec.2020   (BT.2020)





    4BOE DV185WHM-NM2 Electronics Details

    Refresh Rate :

    60Hz

    Reverse Scan :

    No

    Total Consumption :

    11.1/12.8W (Typ./Max.)



     5BOE DV185WHM-NM2 Interface Details

    Signal Electrical :

    Input Current

    0.5/0.72A   (Typ./Max.)

    Input Voltage

    5.0V (Typ.)

    Consumption

     2.5/3.6W   (Typ./Max.)

    Signal Interface

    LVDS (1 ch, 8-bit)

    Interface Features :

    Position

    Upper right of panel

    Physical Type

    Connector

    Interface Detail :

    Brand

    Model

    Pin Pitch

    Pins

    Amount

    Pin Assignment

    UJU

    IS100-L30O-C23

    1.0 mm

    30 pins


    1 pcs

    LVDS-30P1C8B-170A


    6BOE DV185WHM-NM2  Lightting Details

    Lamp Features :

    Lamp Type

    WLED

    Amount

    6S4P

    Position

    Edge light type (Right side)

    Exchange

    -

    Lamp Shape

    Array

    Lamp Life

    50K(Min.) (Hours)

    Lamp Electrical :

    Input Voltage

    17.4/18.0/19.8V (Min./Typ./Max.)

    Input Current

    120mA (Typ.)

    Consumption

    8.6/9.2W (Typ./Max.)

    Interface Features :

    Position

    Down left corner

    Physical Type

    Connector

    Interface Detail :

    Brand

    Model

    Pitch

    Pins

    Quantity

    Pin Configuration

    E&T

    3708K-Q06N-00R

    1.0 mm

    6 pins

    1 pcs


    BLE-6PINS-CCAACC

    Backlight Driver :

    No













    7BOE DV185WHM-NM2 Packing Details

    Box/Package

    Pcs/Package

    Package LWH (mm)

    G.W (kgs)

    13

    508×358×325

    N/A
