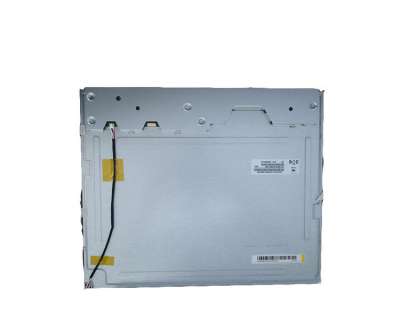

1、BOE EV190E0M-N10 Application Details
Basic Detail : | Manufacturer | BOE | Model Name | EV190E0M-N10 |
Panel Type | a-Si TFT-LCD , LCM | |||
Panel Size | 19.0 inch | Designed For | Industrial | |
Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
Features : | WLED Backlight，Upside I/F,Matte | |||
2、BOE EV190E0M-N10 Optical Details
Basic Detail : | Luminance | 250 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 8/8 (Typ.)(Tr/Td), 14 (Typ.)(G to G) ms | |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
Color Temperature | 6485K | White Variation | 1.33 (Max.)(9 points) | |
1931 Color Gamut : | NTSC Ratio | 73% | sRGB | 92% coverage |
Adobe RGB | 71% coverage | DCI-P3 | 75% coverage | |
Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3、BOE EV190E0M-N10 Mechanical Details
Pixel Features : | Number of Pixel | 1280(RGB)×1024, SXGA | Arrangement | RGB Vertical Stripe |
Dot Pitch(W×H) | 0.0976×0.2928 mm | Pixel Pitch(W×H) | 0.2928×0.2928 mm [86PPI] | |
Physical Size : | Active Viewing | 374.784(W)×299.827(H) mm | Overall Dim. | 396(W)×324(H) mm |
Bezel Opening | 378.8(W)×303.0(H) mm | Overall Depth | 8.7/10.4 (Typ./Max.) mm | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 5:4 | Shape Style | Normal bezel | |
Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
Other Detail : | Mass | 1.69Kgs (Typ.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
4、BOE EV190E0M-N10 Electronics Details
Refresh Rate : | 60Hz |
Reverse Scan : | No |
Total Consumption : | 11.55/14.62W (Typ./Max.) |
5、BOE EV190E0M-N10 Interface Detail
Signal Electrical : | Input Current | 0.6/1.1A (Typ./Max.) | Input Voltage | 5.0V (Typ.) | |||||||||||
Consumption | 3.0/5.5W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | ||||||||||||
Interface Features : | Position | Upper right of panel | Type | Connector | |||||||||||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment | |||||||||
UJU | IS100-L30R-C23 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-160A | ||||||||||
6、BOE EV190E0M-N10 Lightting Details
Lamp Features : | Lamp Type | WLED | Amount | 15S2P | Position | Edge light type (Right side) |
Exchange | - | Lamp Shape | 2 strings | Lamp Life | 30K(Min.) (Hours) | |
Lamp Electrical : | Input Voltage | 45±3V | Input Current | 95mA (Typ.) | ||
Consumption | 8.55/9.12W (Typ./Max.) | |||||
Interface Features : | Position | Down left corner | Type | Connector | ||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment |
JST | SM06B-SHJH(HF) | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CNAANC | |
Backlight Driver : | No | |||||
7、BOE EV190E0M-N10 Packing Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
8 | 521×346×403 | N/A |
