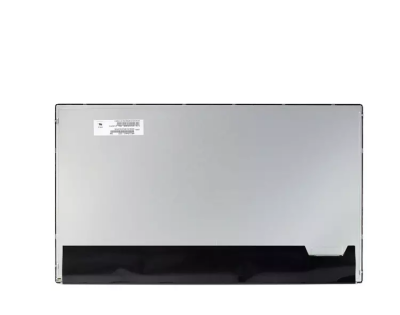

BOE HR215WU1-210 Application Details
| Basic Detail : | Panel Brand | BOE | Model Name | HR215WU1-210 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 21.5” | Designed For | Desktop Monitor | |
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | Srgb,WLED Backlight,Upside I/F,Matte | |||
BOE HR215WU1-210 Optical Details
| Basic Information : | Luminance | 250 cd/m² (Min.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 14 (Typ.)(Tr+Td) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | FFS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Display Colors | 16.7M (6-bit + Hi-FRC) |
Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 75% | sRGB | 100% coverage |
| Adobe RGB | 78% coverage | DCI-P3 | 78% coverage | |
| Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
BOE HR215WU1-210 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)*1080, FHD | Arrangement | RGB Vertical Stripe |
| Dot Pitch (mm) | 0.08275*0.24825 (H*V) | Pixel Pitch (mm) | 0.24825*0.24825 (H*V) [102PPI] | |

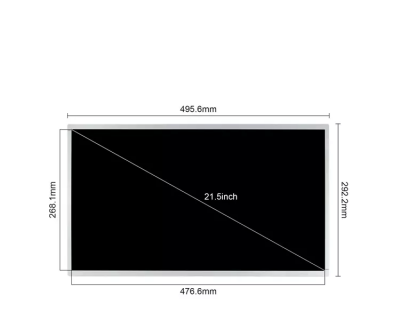

| Physical Size : | Active Viewing(mm) | 476.64(H) *268.11(V) | Bezel Area (mm) | 479.8(H) *271.3(V) |
| Outline Dim. (mm) | 495.6(H) *292.2(V) | Outline Depth | 8.2/11.3 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Normal bezel |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 1.93Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
BOE HR215WU1-210 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 12.5/14.3W (Typ./Max.) |
BOE HR215WU1-210 Interface Details
| Signal Systerm : | LVDS (2 ch, 8-bit) | |||||||
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 0.6/0.9A (Typ./Max.) | ||||
| Consumption | 3.0/4.5W (Typ./Max.) | |||||||
| Interface Features : | Position | Rear | Physical Type | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||
| UJU | IS100-L30O-C23 | 1.0mm | 30pins | 1 pcs | LVDS-30P2C8B-160A | |||
BOE HR215WU1-210 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 17S4P | Position | Edge light type (Bottom side) | ||||||
| Exchange | - | Lamp Shape | 4strings | Lamp Life | 30K(Min.) (Hours) | |||||||
| Lamp Electrical : | Voltage Supply | 51.0V (Typ.) | Current Supply | 60mA (Typ.) | ||||||||
| Consumption | 9.5/9.8W (Typ./Max.) | |||||||||||
| Interface Features : | Position | Rear | Physical Type | Connector | ||||||||
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration | ||||||
| CviLux | CI1406M1HRL-NH | 1.0mm | 6pins | 1 pcs | BLE-6PINS-CCAACC | |||||||
| Backlight Driver : | No | |||||||||||
BOE HR215WU1-210 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 7pcs / box | 16.0 Kgs | 565*240*370 mm |
