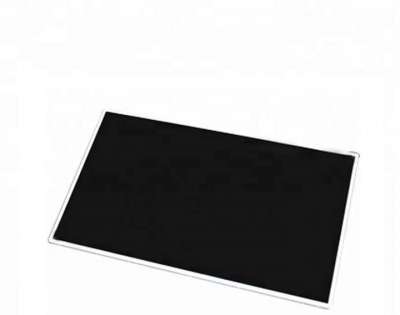

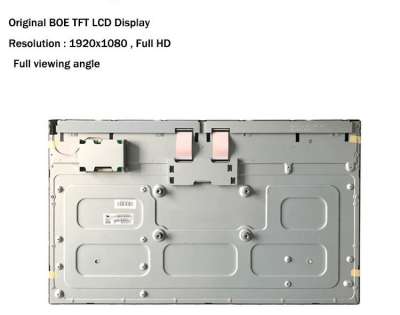

1、BOE DV320FHM-NN0 Application Details
Basic Detail : | Manufacturer | BOE | Model Name | DV320FHM-NN0 |
Panel Type | a-Si TFT-LCD , LCM | |||
Panel Size | 32.0 inch | Designed For | Digital Signage | |
Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
RoHS | RoHS | Vibration Level | ||
Features : | Landscape/Portrait， WLED Backlight，With LED Driver，Matte | |||
2、BOE DV320FHM-NN0 Mechanical Details
Pixel Features : | Number of Pixel | 1920(RGB)×1080, FHD | Arrangement | RGB Vertical Stripe |
Dot Pitch | 0.12125×0.36375 mm | Pixel Pitch | 0.36375×0.36375 mm [69PPI] | |
Physical Size : | Active Viewing | 698.4(W)×392.85(H) mm | Overall Dim. | 716.2(W)×415.05(H) mm |
Bezel Opening | Overall Depth | 8.95 (Typ.) mm | ||
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 16:9 (H:V) | Shape Style | ||
Other Detail : | Mass | 4.00Kgs (Typ.) | Surface | Antiglare (Haze 1%) |
3、BOE DV320FHM-NN0 Optical Details
Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 8 (Typ.)(G to G) ms | |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | ADSDS, Normally Black, Transmissive | |
Color Performance : | Chromaticity | Wx:0.280; Wy:0.290 | Support Color | 16.7M (8-bit) |
Color Temperature | 9969K | White Variation | 1.38 (Max.)(9 points) | |
1931 Color Gamut : | NTSC Ratio | 76% | sRGB | 97% coverage |
Adobe RGB | 76% coverage | DCI-P3 | 78% coverage | |
Rec.2020 | 57% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4、BOE DV320FHM-NN0 Electronics Details
Refresh Rate : | 60Hz |
Reverse Scan : | No |
Power Consumption : | 40W (Typ.) |
5、BOE DV320FHM-NN0 Interface Details
Signal Electrical : | Input Current | 333/630mA (Typ./Max.) | Input Voltage | 12.0V (Typ.) | ||
Consumption | 4.0/7.6W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
Interface Features : | Position | - | Physical Type | Connector | ||
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
UJU | IS050-C51B-C39-S | 0.5 mm | 51 pins | 1 pcs | ||
6、BOE DV320FHM-NN0 Lightting Details
Lamp Features : | Lamp Type | WLED | Amount | - | Position | Edge light type |
Exchange | - | Lamp Shape | - | Lamp Life | 30K(Min.) (Hours) | |
Interface Features : | Position | - | Physical Type | Connector | ||
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
2.0 mm | 14 pins | 1 pcs | ||||
Backlight Driver : | With LED Driver | |||||
Driver Electrical : | Input Voltage | 24.0V (Typ.) | Input Current | 0.7/2.0A (Typ./Max.) | ||
Consumption | 36/63.75W (Typ./Max.) | |||||
7、BOE DV320FHM-NN0 Packing Details
Box/Package | Pcs/Package | Package LWH (mm) | G.W (kgs) |
6 | 820×375×520 | 36.00 |
