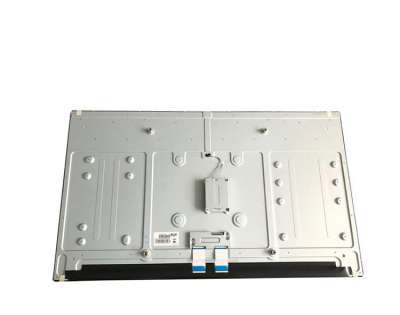

1、BOE DV430FHM-NN5 Application Details
Basic Detail : | Manufacturer | BOE | Model Name | DV430FHM-NN5 |
Panel Type | a-Si TFT-LCD , LCM |
|
|
Panel Size | 43.0" | Designed For
| Digital Signage，Outdoor High Brightness |
Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
RoHS | RoHS | Vibration Level |
|
Features : | Landscape/Portrait，Hight Brightness， WLED Backlight，With LED Driver，Reverse I/F, Matte |
2、BOE DV430FHM-NN5 Mechanical Details
Pixel Features : | Number of Pixel | 1920(RGB)×1080, FHD | Arrangement | RGB Vertical Stripe |
Dot Pitch | 0.16335×0.49005 (H×V) | Pixel Pitch | 0.49005×0.49005 (H×V) [51PPI] |
Physical Size : | Active Viewing | 940.896(H) × 529.254(V) | Bezel Area(mm). | 943.896(H) × 532.25(V)
|
Outline Dim.(mm) | 961.7(H) × 550.1(V) | Depth(mm) | 12.7/32.4 (Typ./Max.) |
Outline Features : | Form Shape | Flat Rectangle
| Orientation | Landscape / Portrait |
Aspect Ratio(W:H) | 16:9 (H:V) | Shape Style |
|
Other Detail : | Mass | 8.36Kgs (Typ.)
| Surface | Antiglare (Haze 25%) |
3、BOE DV430FHM-NN5 Optical Details
Basic Information : | Luminance | 700 cd/m² (Typ.) | Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 8 (Typ.)(G to G) ms |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive |
Color Performance : | Chromaticity | Wx:0.280; Wy:0.290 | Support Color | 16.7M (8-bit) |
Color Temperature | 9969K | White Variation | 1.33/1.43 (Typ./Max.)(9 points) |
1931 Color Gamut : | NTSC Ratio | 73% | sRGB | 95% coverage |
Adobe RGB | 76% coverage | DCI-P3 | 76% coverage |
Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
4、BOE DV430FHM-NN5 Electronics Details
Refresh Rate : | 60Hz |
Reverse Scan : | No |
5、BOE DV430FHM-NN5 Interface Details
Signal Electrical : | Input Current | 0.5/0.95A (Typ./Max.)
| Input Voltage | 12.0V (Typ.) |
Consumption | 6/11.4W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) |
Interface Features : | Position
| Down middle of panel | Physical Type | Connector |
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
UJU | PM.LVS.S040505101
| 0.5 mm | 51 pins | 1 pcs
|
|
6、BOE DV430FHM-NN5 Lightting Details
Lamp Features : | Lamp Type | WLED | Amount | - |
Position | Edge light type |
Exchange | - | Lamp Shape | - | Lamp Life |
30K(Min.) (Hours) |
Interface Features : | Position | - | Physical Type | Connector |
Interface Detail : |
Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| XH2.5-14AW | 2.0 mm | 13pins | 1 pcs |
|
Backlight Driver : | With LED Driver
|
Driver Electrical : | Voltage Supply | 22/26V (Min./Max.) | Current Supply | - |
Consumption | 68W (Typ.) |
|
|
|
|
|
|
|
|
|
|
7、BOE DV430FHM-NN5 Packing Details
Box/Package | Pcs/Package | Package LWH (mm) | G.W (kgs) |
10 | 1065×565×635
| N/A |
