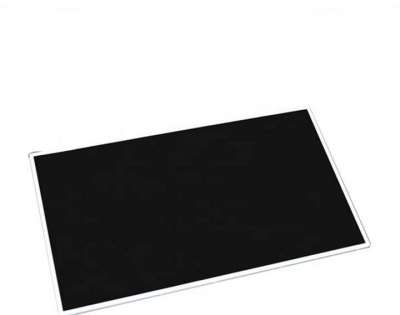

  • 49 inch BOE 1920×1080 DV490FHM-NN3 400nits  TFT IPS industrial lcd screen Panel
  • 49 inch BOE 1920×1080 DV490FHM-NN3 400nits  TFT IPS industrial lcd screen Panel
  • Model:DV490FHM-NN3
  • Brand:BOE
  • Size:49.0inch
  • Resolution:1920×1080
  • Brightness:400 cd/m² (Typ.)
  • Perspective:89/89/89/89 (Typ.)
  • Interface:LVDS
  • Operating Temp.:0 ~ 50 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1BOE DV490FHM-NN3 Application Details

    Basic Detail :

    Manufacturer

    BOE

    Model Name

    DV490FHM-NN3

    Panel Type

    a-Si TFT-LCD , LCM



    Panel Size

    49.0inch

    Designed For

    Digital Signage

    Maximum Ratings :

    OP Temperature

    0 ~ 50 °C

    ST Temperature

    -20 ~ 60 °C

    RoHS

    RoHS

    Vibration Level

    -

    Features :

    WLED BacklightWith LED DriverMatte


    2BOE DV490FHM-NN3 Mechanical Details

    Pixel Features :

    Number of Pixel

    1920(RGB)×1080, FHD

    Arrangement

    RGB Vertical Stripe

    Dot Pitch (mm)

    0.18642×0.55926 (H×V)

    Pixel Pitch (mm)

    0.55926×0.55926 (H×V)  [45PPI]

    Physical Size :

    Active Viewing (mm)

    1073.78(H) × 604(V)

    Bezel Area(mm)

    1078.6(H)   × 609.5(V)

    Outline Dim.(mm)

    1090.4(H) × 621.3(V)

    Depth(mm)

    27.36   (Max.)

    Outline Features :

    Form Shape

    Flat Rectangle

    Orientation

    Landscape type

    Aspect Ratio(W:H)

    16:9 (H:V)

    Shape Style


    Mounting :

    Rear mounting Pole (4 pcs)

    Other Detail :

    Mass

     9.80Kgs   (Max.)

    Surface

    Antiglare (Haze 1%),


    3BOE DV490FHM-NN3 Optical Details

    Basic Information :

    Luminance

    400 cd/m² (Typ.)

    Contrast Ratio

    1200:1 (Typ.) (Transmissive)

    Good View at

    Symmetry

    Response Speed

    8 (Typ.)(G to G) ms

    Viewing Angle

    89/89/89/89 (Typ.)(CR10)

    Operating Mode

    ADS,   Normally Black, Transmissive

    Color Performance :

    Chromaticity

    Wx:0.280; Wy:0.290

    Support Color

    16.7M (8-bit)

    Color Temperature

    9969K

    White Variation

    -

    1931 Color Gamut :

    NTSC Ratio

    73%

    sRGB

    95% coverage

    Adobe RGB

    76% coverage

    DCI-P3

    76% coverage

    Rec.2020

    54% coverage

    Remarks

    sRGB (Rec.709, BT.709), Rec.2020   (BT.2020)



    4BOE DV490FHM-NN3 Electronics Details

    Refresh Rate :

    60Hz

    Reverse Scan :

    No

    Power Consumption :

    96W (Max.)



    5BOE DV490FHM-NN3 Interface Details

    Signal Electrical :

    Input Current

    450/780mA   (Typ.)

    Input Voltage

    12.0V (Typ.)

    Consumption

    5.4/10.3W   (Typ./Max.)

    Signal Interface

    LVDS (2 ch, 8-bit)

    Interface Features :

    Position

    -

    Physical Type

    Connector

    Interface Detail :

    Brand

    Model

    Pin Pitch

    Pins

    Amount

    Pin Assignment

    UJU

    IS050-C51B-C39-S

    0.5mm

    51 pins

    1 pcs



    6BOE DV490FHM-NN3  Lightting Details

    Lamp Features :

    Lamp Type

    WLED

    Amount

    -

    Position

    Edge light type

    Exchange

    -

    Lamp Shape

     8   strings

    Lamp Life

    15K(Typ.)   (Hours)

    Lamp Electrical :

    Input Voltage

    71.3/75.9/80.5V   (Min./Typ./Max.)

    Input Current

    480mA (Typ.)

    Consumption

    64.5W (Typ.)

    Interface Features :

    Position

    -

    Physical Type

    Connector

    Interface Detail :

    Brand

    Model

    Pitch

    Pins

    Quantity

    Pin Configuration




    14 pins

    1 pcs


    Backlight Driver :

    With LED Driver

    Driver Electrical :

    Voltage Input

    24±2V

    Current Input

    3.75/5A (Typ./Max.)

    Consumption

    90/116W (Typ./Max.)
















    7BOE DV490FHM-NN3 Packing Details

    Box/Package

    Pcs/Package

    Package LWH (mm)

    G.W (kgs)

    5

    1185×375×700

    62.50
