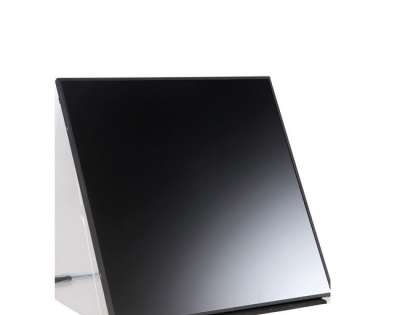

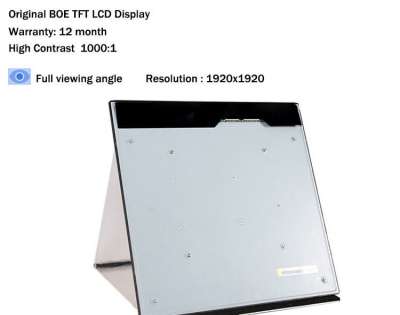

  • BOE 33 inch Square TFT IPS Screen Full View Angle DV332X2M-NV0 1920x1920 92 pins
  • BOE 33 inch Square TFT IPS Screen Full View Angle DV332X2M-NV0 1920x1920 92 pins
  • Model:DV332X2M-NV0
  • Brand:BOE
  • Size:33.0inch
  • Resolution:1920×1920
  • Brightness:420 cd/m² (Typ.)
  • Perspective:89/89/89/89 (Typ.)
  • Interface:LVDS
  • Operating Temp.:0 ~ 50 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1BOE DV332X2M-NV0 Application Details

    Basic Detail :

    Manufacturer

    BOE

    Model Name

    DV332X2M-NV0

    Panel Type

    a-Si TFT-LCD , LCM



    Panel Size

    33.0inch

    Designed For

    Digital SignageVideo Wall

    Maximum Ratings :

    OP Temperature

    0 ~ 50 °C

    ST Temperature

    -20 ~ 60 °C

    RoHS

    RoHS

    Vibration Level

    -

    Features :

    WLED BacklightMatte


    2BOE DV332X2M-NV0 Mechanical Details

    Pixel Features :

    Number of Pixel

    1920(RGB)×1920

    Arrangement

    RGB Vertical Stripe

    Dot Pitch  (H×V)

    0.0345×0.1035   mm

    Pixel Pitch  (H×V)

    0.1035×0.1035 mm  [81PPI]

    Physical Size :

    Display Area (H×V)

    596.16×596.16 mm

    Bezel Area (W×H)

    601.96×601.96   mm

    Outline Dimension (W×H)

    612.96×612.96 mm

    Depth(mm)

    7.7 (Typ.) mm

    Outline Features :

    Form Shape

    Flat Rectangle

    Orientation

    Landscape type

    Aspect Ratio(W:H)

    1:1 (H:V)

    Videowall Seam

    16.8 mm (Active to Active)

    Other Detail :

    Mass

    4.88±0.1Kgs

    Surface

    Antiglare (Haze 25%), Hard coating (3H)

    Holes & Brackets :

    Rear mounting Pole (12-M3)


    3BOE DV332X2M-NV0 Optical Details

    Basic Information :

    Luminance

    420 cd/m² (Typ.)

    Contrast Ratio

    1000:1 (Typ.) (Transmissive)

    Good View at

    Symmetry

    Response Speed

    8 (Typ.)(G to G) ms

    Viewing Angle

    89/89/89/89 (Typ.)(CR10)

    Operating Mode

     ADS,   Normally Black, Transmissive

    Color Performance :

    Color Temperature

    Support Color

    Color Coordinate

    9969K

    16.7M (8-bit)

    X:0.280; Y:0.290

    1931 Color Gamut :

    NTSC Ratio

    74%

    sRGB

    96% coverage

    Adobe RGB

    75% coverage

    DCI-P3

    77% coverage

    Rec.2020

    56% coverage

    Remarks

    sRGB (Rec.709, BT.709), Rec.2020   (BT.2020)

    Luminance Variation :

    1.33 (Typ.)(9 points)








     4BOE DV332X2M-NV0 Electronics Details

    Refresh Rate :

    60Hz

    Reverse Scan :

    No

    Power Consumption :

    52.6/57.1W (Typ./Max.)



     5BOE DV332X2M-NV0 Interface Details

    Signal Electrical :

    Input Current

    1.40/2.00A   (Typ./Max.)

    Input Voltage

    5.0V (Typ.)

    Consumption

    7.0/10.0W   (Typ./Max.)

    Signal Interface

    LVDS (4 ch, 8-bit)

    Interface Features :

    Position

    -

    Physical Type

    Connector

    Interface Detail :

    Brand

    Model

    Pin Pitch

    Pins

    Amount

    Pin Assignment

    UJU

    IS050-C51B-C39

    0.5mm

    51 pins

    1 pcs



    6BOE DV332X2M-NV0  Lightting Details

    Lamp Features :

    Lamp Type

    WLED

    Amount

    -

    Position

    Edge light type

    Exchange

    -

    Lamp Shape


    -

    Lamp Life

    30K(Min.)

    WLED Electrical :

    Input Voltage


    57±1.9V

    Input Current

    100mA (Typ.)

    Power Consumption

    45.6/47.1W (Typ./Max.)

    Interface Features :

    Position

    Down left corner& Down right corner

    Physical Type

    Connector

    Interface Detail :

    Brand

    Model

    Pitch

    Pins

    Quantity

    Pin Configuration


    3707K-X06X-08X


    6pins

    2 pcs

    BLE-6PINS-CCAACC

    Backlight Driver :

    No













    7BOE DV332X2M-NV0 Packing Details

    Box/Package

    Pcs/Package

    Package LWH (mm)

    G.W (kgs)

    8

    716×371×735

    44.00
