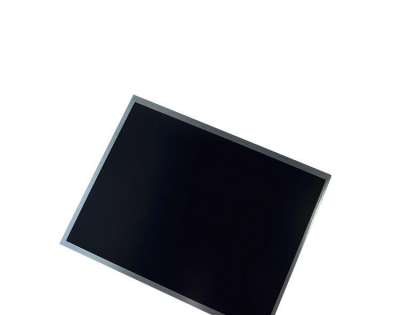

  • Industrial INNOLUX 12.1 inch IPS TFT LCD Display PanelG121XCE-L02
  • Model:G121XCE-L02
  • Brand:CHIMEI
  • Size:12.1inch
  • Resolution:1024×768
  • Brightness:500 cd/m² (Typ.)
  • Perspective:89/89/89/89 (Typ.)
  • Interface:LVDS
  • Operating Temp.:-30 ~ 70 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1Innolux G121XCE-L02 Application Details

    Basic Detail :

    Manufacturer

    INNOLUX

    Model Name

    G121XCE-L02

    Panel Type

    a-Si TFT-LCD , LCM



    Panel Size

    12.1 inch

    Designed For

    Industrial

    Maximum Ratings :

    OP Temperature

    -30 ~ 70 °C

    ST Temperature

    -40 ~ 80 °C

    RoHS

    RoHS

    Vibration Level

    1.5G (14.7 m/s²)

    Features :

    Wide TemperatureWLED BacklightWith LED DriverUpside I/F,U/D,L/R Reverse6/8bitMatte



    2Innolux G121XCE-L02 Optical Details

    Basic Detail :

    Luminance

    500 cd/m² (Typ.)

    Contrast Ratio

    1000:1 (Typ.) (Transmissive)

    Good View at

    Symmetry

    Response Speed

    13/12 (Typ.)(Tr/Td) ms

    Viewing Angle

    89/89/89/89 (Typ.)(CR10)

    Operating Mode

    AAS, Normally Black, Transmissive

    Color Performance :

    Chromaticity

    Wx:0.313; Wy:0.329

    Support Color

    262K/16.7M (6-bit / 6-bit + Hi-FRC)

    Color Temperature

    6485K

    White Variation

    1.25/1.30 (Typ./Max.)(5 points)

    1931 Color Gamut :

    NTSC Ratio

    73%

    sRGB

    93% coverage

    Adobe RGB

    72% coverage

    DCI-P3

    75% coverage

    Rec.2020

    54% coverage

    Remarks

    sRGB (Rec.709, BT.709), Rec.2020   (BT.2020)


    3Innolux G121XCE-L02 Mechanical Details

    Pixel Features :

    Number of Pixel

    1024(RGB)×768, XGA

    Arrangement

    RGB Vertical Stripe

    Dot Pitch(W×H)

    0.080×0.240 mm

    Pixel Pitch(W×H)

    0.240×0.240 mm  [105PPI]

    Physical Size :

    Active Viewing

    245.76(W)×184.32(H) mm

    Overall Dim.

    260.5(W)×204(H) mm

    Bezel Opening

    249.0(W)×187.5(H) mm

    Overall Depth

    8.4/8.9 (Typ./Max.) mm

    Outline Features :

    Form Shape

    Flat Rectangle

    Orientation

    Landscape type

    Aspect Ratio(W:H)

    4:3

    Shape Style


    Fixation :

    Side mounting holes (4-M2) on left, right   bezel

    Other Detail :

    Mass

    490/510g (Typ./Max.)

    Surface

    Antiglare, Hard coating (3H)


    4Innolux G121XCE-L02 Electronics Details

    Refresh Rate :

    60Hz

    Reverse Scan :

    Yes (U/D, L/R)

    Total Consumption :

    10.12W (Typ.)


    5Innolux G121XCE-L02 Interface Detail

    Signal Electrical :

    Input Current

    520/620mA (Typ./Max.)

    Input Voltage

    3.3V (Typ.)


    Consumption


    1.22/1.49W (Typ./Max.)

    Signal Interface

    LVDS (1 ch, 6/8-bit)

    Interface Features :

    Position

    Upper right of panel


    Type

    Connector


    Interface Detail :

    Brand

    Model

    Pitch

    Pins

    Amount

    Pin Assignment

    STARCONN

    076B20-0048RA-G4


    1.25 mm


    20 pins

    1 pcs

    LVDS-20P1C8B-160A


    6Innolux G121XCE-L02 Lightting Details

    Lamp Features :



    Lamp Type

    WLED

    Amount

    -

    Position

    Edge light type

    Exchange

    -

    Lamp Shape

    -

    Lamp Life

    30K(Min.) (Hours)

    Interface Features :

    Position


    -

    Type

    Connector

    Interface Detail :

    Brand

    Model

    Pitch

    Pins

    Amount

    Pin Assignment

    ACES

    91208-01001

    1.0 mm

    10 pins

    1 pcs


    Backlight Driver :

    With LED Driver

    Driver Electrical :

    Input Voltage

    12.0±1.2V

    Input Current

    0.7/0.85A (Typ./Max.)

    Consumption

    8.4/10.2W (Typ./Max.)
