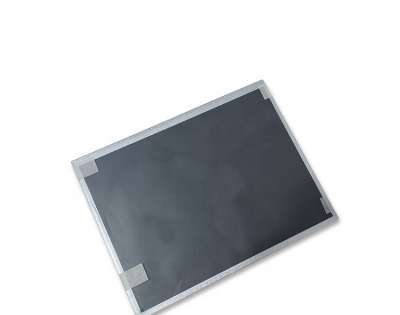

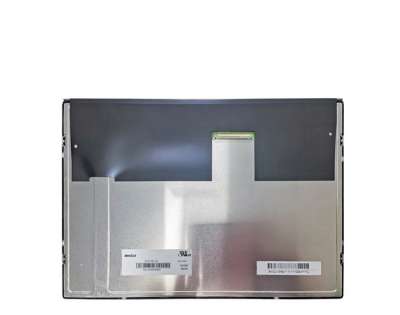

  • Industrial INNOLUX 12.1 inch IPS TFT LCD Display Panel G121ICE-LH2
  • Industrial INNOLUX 12.1 inch IPS TFT LCD Display Panel G121ICE-LH2
  • Model:G121ICE-LH2
  • Brand:CHIMEI
  • Size:12.1inch
  • Resolution:1280×800
  • Brightness:600 cd/m² (Typ.)
  • Perspective:88/88/88/88 (Typ.)
  • Interface:LVDS
  • Operating Temp.:-30 ~ 80 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1Innolux G121ICE-LH2 Application Details

    Basic Info :

    Panel Brand

    INNOLUX

    Panel Model

    G121ICE-LH2

    Diagonal Size

    12.1"

    Application

    Industrial

    Panel Type

    a-Si TFT-LCD , LCM



    Reliability :

    Operating Temp.

    -30 ~ 80 °C

    Storage Temp.

    -30 ~ 85 °C

    RoHS State

    RoHS

    Vibration Rating

    1.5G (14.7 m/s²)

    Specific Features :

    Wide TemperatureHight BrightnessWLED BacklightLife50K hoursWith LED Driver180°Reverse6/8bit Matte


    2Innolux G121ICE-LH2 Mechanical Details

    Pixel Features :

    Pixel Format

    1280(RGB)×800 [WXGA]

    Dot Pitch

    0.068×0.204 mm (H×V)

    Configuration

    RGB Vertical Stripe

    Pixel Pitch

    0.204×0.204 mm  [124PPI]

    Mechanical Size :

    Display Area

    261.12(W)×163.2(H) mm

    Overall Dim.

    278(W)×184(H) mm

    Bezel Opening

    264.12(W)×166.2(H) mm

    Overall Depth

    7.1/9.61 (Typ./Max.) mm

    Outline Features :

    Form Factor

    Flat Rectangle

    Orientation

    Landscape type

    Aspect Ratio

    16:10 (H:V)

    Shape Style


    Holes & Brackets :

    Side mounting holes (4-M2) on left, right   bezel

    Other Features :

    Weight

    470/490g (Typ./Max.)

    Surface

    Antiglare, Hard coating (3H)



     3Innolux G121ICE-LH2 Optical Details

    Basic Information :

    Brightness

    600 cd/m² (Typ.)

    Contrast Ratio

    1000:1 (Typ.) (Transmissive)

    Viewing Angle

    88/88/88/88 (Typ.)(CR10)

    Optical Mode

    AAS, Normally Black, Transmissive

    Viewing Direction

    Symmetry

    Response Time

    12/8 (Typ.)(Tr/Td) (ms)

    Color Performance :

    Chromaticity

    Wx:0.313; Wy:0.329

    Color Numbers

    262K/16.7M (6-bit / 8-bit )

    Color Temperature

    6485K

    Uniformity

    1.25/1.43 (Typ./Max.)(5points)

    1931 Color Gamut :

    NTSC Ratio

    -

    sRGB

    94% coverage

    Adobe RGB

    73% coverage

    DCI-P3

    75% coverage

    Rec.2020

    54% coverage


    Remarks

    sRGB (Rec.709, BT.709), Rec.2020   (BT.2020)


    4Innolux G121ICE-LH2 Electronics Details

    Frame Frequency :

    60Hz

    Reverse Scan :

    Yes (180°)

    Power Consumption :

    11.45W   (Typ.)


    5Innolux G121ICE-LH2 Backlight Details

    Back-light Features :

    Lamp Type

    WLED

    Amount

    -

    Life Time

    50K(Min.) (Hours)

    Replacement

    -

    Lamp Shape

    -

    Position

    Edge light type

    Interface Features :

    Type

    Included in signal interface

    Position

    -

    Lamp Driver

    With LED Driver

    Driver Electrical :

    Voltage Input

    12.0±1.2V


    Current Input

    0.8/1.0A (Typ./Max.)

    Consumption

    9.6/12W (Typ./Max.)


    6Innolux G121ICE-LH2 Interface Detail

    Signal Systerm :


    LVDS (1 ch, 6/8-bit)


    Logic Voltage

    -


    Signal Electrical :

    Voltage Input

    3.3V (Typ.)

    Current Input

    560/675mA (Typ./Max.)

    Consumption

    -

    Interface Features :

    Type

    Connector


    Position

    -

    Connector Detail :

    Brand

    Model

    Pin Pitch

    Pins

    Amount

    Configuration

     P-TWO

    187114-30091

    1.0mm

    30 pins

    1 pcs


















    7Innolux G121ICE-LH2 Carton Details

    Box Type

    Pcs/Box

    Package LWH (mm)

    G.W (kgs)

    18

    465×362×314

    10.15
