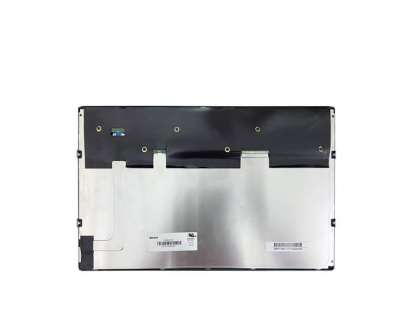

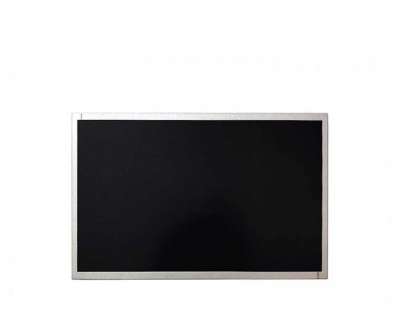

1、Innolux G156HCE-E01 Application Details
Basic Detail : | Manufacturer | Innolux | Model Name | G156HCE-E01 |
Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
Panel Size | 15.6 inch | Designed For | Industrial，Gaming | |
Maximum Ratings : | OP Temperature | 0 ~ 60 °C | ST Temperature | -20 ~ 70 °C |
RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
Features : | WLED Backlight，Life≥50K hours，With LED Driver，Matte | |||
2、Innolux G156HCE-E01 Optical Details
Basic Detail : | Luminance | 450 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 14/11 (Typ.)(Tr/Td) ms | |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AAS, Normally Black, Transmissive | |
Color Performance : | Chromaticity | Wx:0.305; Wy:0.340 | Support Color | 16.7M (8-bit) |
Color Temperature | 6808K | White Variation | 1.43 (Max.)(9 points) | |
1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 95% coverage |
Adobe RGB | 73% coverage | DCI-P3 | 74% coverage | |
Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3、Innolux G156HCE-E01 Mechanical Details
Pixel Features : | Number of Pixel | 1920(RGB)×1080, FHD | Arrangement | RGB Vertical Stripe |
Dot Pitch(W×H) | 0.05975×0.17925 mm | Pixel Pitch(W×H) | 0.17925×0.17925 mm [141PPI] | |
Physical Size : | Active Viewing | 344.16(W)×193.59(H) mm | Overall Dim. | 351.84(W)×208.88(H) mm |
Bezel Opening | - | Overall Depth | 4.5/6.5 (Typ./Max.) mm | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 16:9 | Shape Style | ||
Fixation : | Without | |||
Other Detail : | Mass | 550g (Typ.) | Surface | Antiglare, Hard coating (3H) |
4、Innolux G156HCE-E01 Electronics Details
Refresh Rate : | 60Hz |
Reverse Scan : | No |
Total Consumption : | 10.38W (Max.) |
5、Innolux G156HCE-E01 Interface Detail
Signal Electrical : | Input Current | 198/237mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
Consumption | 0.78W (Max.) | Signal Interface | eDP (2 Lanes), eDP1.2 | |||
Interface Features : | Position | - | Type | Connector | ||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment |
I-PEX | 20455-040E-76 | 0.5 mm | 40 pins | 1 pcs | ||
6、Innolux G156HCE-E01 Lightting Details
Lamp Features : | Lamp Type | WLED | Amount | - | Position | Edge light type |
Exchange | - | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) | |
Interface Features : | Position | - | Type | Included in signal interface | ||
Backlight Driver : | With LED Driver | |||||
Driver Electrical : | Input Voltage | 12/18V (Typ./Max.) | Input Current | 0.8±0.2A | ||
Consumption | 9.6W (Max.) | |||||
7、 Innolux G156HCE-E01 Packing Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
18 | 490×350×320 | 16.30 |
