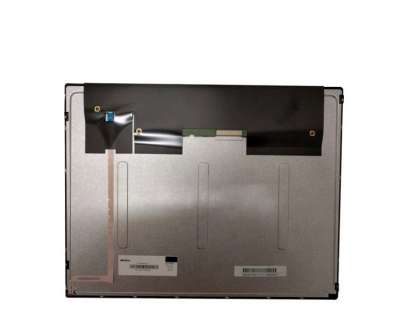

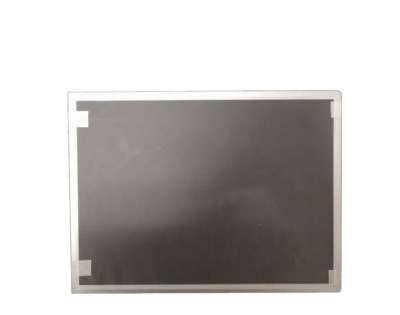

1、Innolux G150XJE-E03 Application Details
Basic Info : | Panel Brand | INNOLUX | Panel Model | G150XJE-E03 |
Diagonal Size | 15.0" | Application | Industrial，Gaming | |
Panel Type | a-Si TFT-LCD , LCM | |||
Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 70 °C |
RoHS State | RoHS | Vibration Rating | 1.5G (14.7 m/s²) | |
Specific Features : | WLED Backlight，Life≥70K hours，With LED Driver， 6/8bit ，Matte | |||
2、Innolux G150XJE-E03 Mechanical Details
Pixel Features : | Pixel Format | 1024(RGB)×768, XGA | Dot Pitch (W×H) | 0.099×0.297 mm |
Configuration | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.297×0.297 mm [85PPI] | |
Mechanical Size : | Active Viewing | 304.128(W)×228.096(H) mm | Bezel Area | 307.4×231.3 mm (H×V) |
Outline Dim. | 326.5×253.5 mm (H×V) | Outline Depth | 9.1/9.6 (Typ./Max.) mm | |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 4:3 (H:V) | Shape Style | ||
Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
Other Detail : | Weight | 942/980g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
3、Innolux G150XJE-E03 Optical Details
Basic Information : | Brightness | 450 cd/m² (Typ.) | Contrast Ratio | 2500 : 1 (Typ.) (Transmissive) |
Viewing Angle | 88/88/88/88(Typ.)(CR≥10) | Optical Mode | NPVA, Normally Black, Transmissive | |
Viewing Direction | Symmetry | Response Time | 16/7 (Typ.)(Tr/Td) (ms) | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.7M (6-bit / 8-bit) |
Color Temperature | 6485K | Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 92% coverage |
Adobe RGB | 71% coverage | DCI-P3 | 74% coverage | |
Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4、Innolux G150XJE-E03 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
Power Consumption : | 8.0W (Max.) |
5、Innolux G150XJE-E03Backlight Details
Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 70K(Min.) (Hours) |
Replacement | - | Lamp Shape | - | Position | Edge light type | |
Interface Features : | Type | Included in signal interface | Position | -
| ||
Driver Electrical : | Voltage Input | 12.0±1.2V | Current Input | 0.5±0.1A | ||
Consumption | 6.0/6.5W (Typ./Max.) | |||||
6、Innolux G150XJE-E03 Interface Detail
Signal Systerm : | eDP (1 Lane), eDP1.2 | Logic Voltage | - | |||||||||||
Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 440/535mA (Typ./Max.) | ||||||||||
Interface Features : | Type | Connector | Position | - | ||||||||||
Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | ||||||||
I-PEX | 20455-030E-76 | 0.5 mm | 30 pins | 1 pcs | EDP-30P1L-030A | |||||||||
7、Innolux G150XJE-E03 Carton Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
16 | 511×420×360 | 16.70 |
