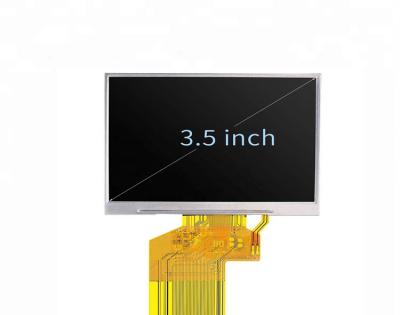

Chimei Innolux LQ035NC111 Application Details
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | LQ035NC111 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 3.5” | Designed For | Handheld&PDA,Portable Navigation，Digital Still Camera，Digital Video Camera | |
| Maximum Ratings : | OP Temperature | -20 ~ 70°C | ST Temperature | -30 ~ 80°C |
| RoHS | RoHS | Vibration Level | - | |
| Features : | WLED Backlight，Matte | |||
Chimei Innolux LQ035NC111 Optical Details
| Basic Information : | Luminance | 300 cd/m²(Typ.) | Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 10/15 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 60/60/50/55 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | X:0.310; Y:0.330 | Display Colors | 16.7M (8-bit) |
Color Temperature | 6638K | White Variation | - |
Chimei Innolux LQ035NC111 Mechanical Details
| Pixel Features : | Number of Pixel | 320(RGB)*;240 [QVGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W*H) | 0.073*0.219 mm | Pixel Pitch (W×H) | 0.219*0.219 mm [115PPI] | |
| Physical Size : | Active Viewing(mm) | 70.08(W)*52.56(H) mm | Bezel Area (mm) | 73.03(W)*55.50(H) mm |
| Outline Dim.(mm) | 76.9(W)*63.9(H) mm | Depth(mm) | 3.26±0.2 mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (W:H) | Orientation | Landscape type | |
| Other Spec : | Weight | 30.0g (Typ.) | Surface | Antiglare (Haze 20%) |
Chimei Innolux LQ035NC111 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Time Controller (T-CON) : | Built-in HX8238-D |
Chimei Innolux LQ035NC111 Interface Details
| Signal Electrical : | Signal Interface | Digital RGB (8/24-bit) + SPI, CCIR601/656 | Logic Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | ||||
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 8.6/15mA (Typ./Max.) | ||||
| Interface Features : | Position | - | Physical Type | FPC | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||
| 0.5mm | 54pins | 1 pcs | ||||||
Chimei Innolux LQ035NC111 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 6S1P | Position | Edge light type | |||
| Exchange | - | Lamp Shape | 1 string | Lamp Life | 10K(Min.) (Hours) | ||||
| Lamp Electrical : | Voltage Supply | 17.4/19.8/21V (Min./Typ./Max.) | Current Supply | 20mA (Typ.) | |||||
| Consumption | 400/420mW (Typ./Max.) | ||||||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | |||||
| Backlight Driver : | No | ||||||||
Chimei Innolux LQ035NC111 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 114 pcs / box | 6.37±0.32 Kgs | 375*280*210 mm |
