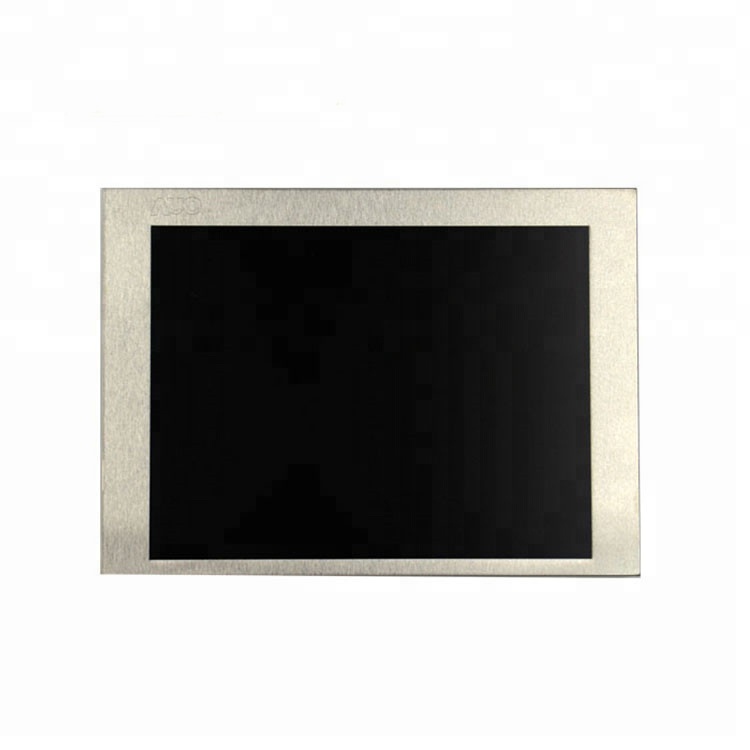

AUO G057VCE-TH1 Application Details
| Basic Info : | Panel Brand | AUO | Panel Model | G057VCE-TH1 |
| Diagonal Size | 5.7inch | Application | Industrial | |
| Panel Type | a-Si TFT-LCD , LCM | |||
| Reliability : | Operating Temp. | -30 ~ 85 °C | Storage Temp. | -40 ~ 85 °C |
| RoHS State | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Specific Features : | Wide Temperature，WLED Backlight，Life>=50 hours,With LED Driver,U/D,L/R Reverse,Matte | |||
AUO G057VCE-TH1 Mechanical Details
| Pixel Features : | Pixel Format | 640(RGB)*480, VGA | Dot Pitch(mm) | 0.060*0.180 (H*V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch (mm) | 0.180*0.180 (H*V) [141PPI] | |
| Mechanical Size : | Active Viewing | 115.2(H) *86.4(V)mm | Bezel Area(mm) | 118.2(H) *89.4(V) |
| Outline Dim.(mm) | 144(H) *104.6(V) | Depth(mm) | 12.3±0.5 | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Fixation : | Side mounting holes (4-Φ2.6), Rear mounting holes (4-Φ2.6) | |||
| Other Detail : | Mass | TBD | Surface | Antiglare, Hard coating (3H) |
AUO G057VCE-TH1 Optical Details
| Brightness | Brightness | 450 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Viewing Angle | 88/88/88/88(Typ.)(CR≥10) | Optical Mode | AMVA, Normally Black, Transmissivee | |
| Viewing Direction | Symmetry | Response Time | 13/12 (Typ.)(Tr/Td) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6485K | Uniformity | 1.255/1.39 (Typ./Max.)(5 points) | |
| 1931 Color Gamut : | NTSC Ratio | 71% | sRGB | 94% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G057VCE-TH1 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Time Controller (T-CON) : | Embedded T-CON |
AUO G057VCE-TH1 Backlight Details
| Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 50K(Min.) (Hours) | |||||||
| Replacement | - | Lamp Shape | - | Position | Edge light type | ||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment | |||||||
| CviLux | CI4205M2HRP-NH | 1 pcs | 1.25 mm | 5pins | |||||||||
| Backlight Driver : | With LED Driver | ||||||||||||
| Backlight Driver : | Input Current | 0.19±0.3A | Input Voltage | 12.0±1.2V | |||||||||
| Consumption | 2.3W (Typ.) | ||||||||||||
AUO G057VCE-TH1 Interface Details
| Signal Electrical : | Input Current | 145/175mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||||
| Consumption | 0.88/1.06W (Typ./Max.) | Signal Interface | Parallel RGB (1 ch, 6-bit) | |||||
| Logic Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment | ||
| I-PEX | 20455-040E-76 | 1 pcs | 0.5mm | 40pins | ||||
Innolux G057VCE-TH1 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 60 pcs / box | 11.65 Kgs | 500*400*330 mm (L*W*H) |
