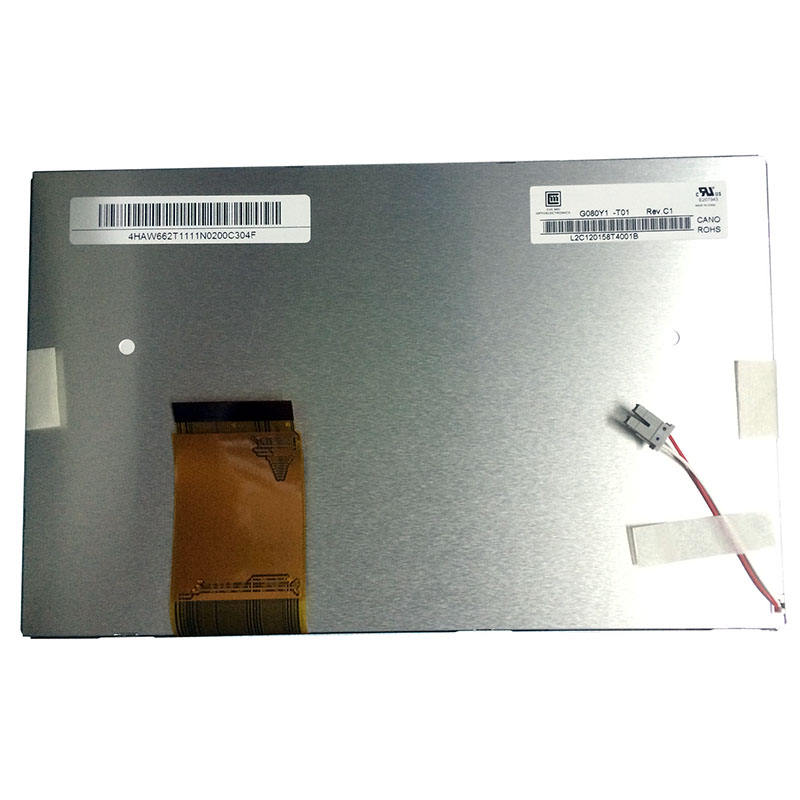

Chimei Innolux G080Y1-T01 Application Details
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | G080Y1-T01 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 8.0” | Designed For | Industrial,Automotive Display | |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -40 ~ 90 °C |
| RoHS | RoHS | Vibration Level | 3.0G (29.4 m/s²) | |
| Features : | Wide Temperature，Hight Brightness,WLED Backlight，U/D,L/R Reverse,Matte,6/8bit | |||
Chimei Innolux G080Y1-T01 Optical Details
| Basic Information : | Luminance | 600 cd/m²(Typ.) | Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 5/11 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.315 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
Color Temperature | 6485K | White Variation | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 92% coverage |
| Adobe RGB | 71% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Chimei Innolux G080Y1-T01 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)*480, WVGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W*H) | 0.07225*0.21675 mm | Pixel Pitch (W*H) | 0.21675*0.21675 mm [117PPI] | |
| Physical Size : | Active Viewing(mm) | 173.4(W)*104.04(H) mm | Bezel Area (mm) | 175.2(W)*105.84(H) mm |
| Outline Dim.(mm) | 190(W)*120(H) mm | Depth(mm) | 5.06±0.3 mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 15:9 (W:H) | Orientation | Landscape type | |
| Other Spec : | Weight | 172g (Typ.) | Surface | Antiglare, Hard coating (3H) |
Chimei Innolux G080Y1-T01 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Total Consumption : | 3.97W (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
Chimei Innolux G080Y1-T01 Interface Details
| Signal Electrical : | Voltage Input | 3.3/12/18/-7V (Typ.)(VCC/AVDD/VGH/VGL) | Current Input | 22.8/36.5/0.206/0.211mA (Typ.)(ICC/IDD/IGG/IEE) | ||||
| Consumption | - | Signal Interface | TTL (1 ch, 6/8-bit) | |||||
| Logic Voltage : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||||
| Interface Features : | Position | - | Physical Type | FPC | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||
| 0.5mm | 60pins | 1 pcs | ||||||
Chimei Innolux G080Y1-T01 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 9S3P | Position | Edge light type (Bottom side) | |||||
| Exchange | - | Lamp Shape | Array | Lamp Life | 30K(Min.) (Hours) | ||||||
| Lamp Electrical : | Input Voltage | 28.8/31.5V (Typ./Max.) | Input Current | 120/130mA (Typ./Max.) | |||||||
| Consumption | 3.45W (Typ.) | ||||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||
| Backlight Driver : | No | ||||||||||
| Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment | |||||
| YEONHO | 35001HS-02L | 3.5 mm | 2 pins | 1 pcs | BLE-2PINS-AC | ||||||
Chimei Innolux G080Y1-T01 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 40 pcs / box | 9.9 Kgs | 465*362*314 mm |
