G121EAN01.2andG121EAN01.3Mass production of Youda 12.1-inch high brightness full
Date:2019-04-25

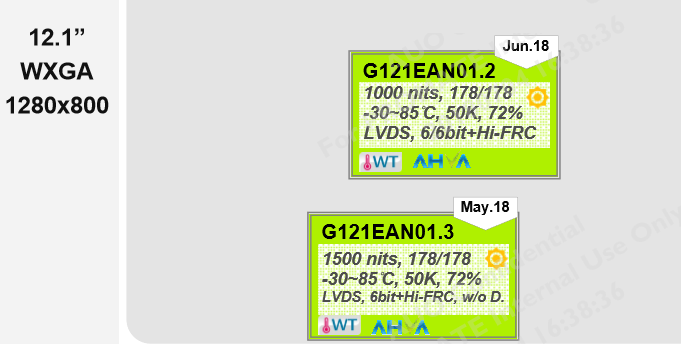

In Q2 of 2018, Youda 12.1-inch also launched two outdoor bright full view wide temperature industrial LCD products. G121ean01.2 and g121ean01.3 are Youda 12.1-inch 1280 * 800 Industrial LCD. According to the above figure, g121ean01.2 began mass production in June 2018. At present, samples have been produced, and orders can be accepted in batches. The batch delivery time is 4-6 weeks. G121ean01.3 started mass production in May 2018. At present, samples have been produced, and the batch can accept orders. The batch delivery time is 4-6 weeks.
G121ean01.2 is AUO's 12.1-inch a-Si TFT-LCD industrial liquid crystal screen. It is equipped with WLED backlight and LED driver backlight drive. The operating temperature is - 30 ~ 85 ℃ ° C. The storage temperature is - 30 ~ 85 ℃ ° C. Wide color gamut, surface fog, 6 / 8 bit gray scale, wide viewing angle, landscape mode, wide temperature, ultra-high brightness, white LED backlight, backlight life more than 70000 hours, wide screen. Outdoor highlight. G121ean01.2 as an IPS, constant black display, transmission LCD module product, g121ean01.2 can provide 1000 CD / m ² The best viewing angle is full angle, and its response time is 25 (typ.) (TR + TD) Ms. Because each pixel uses 6-bit / 8-bit gray scale signal to display 262K / 16.7M color, the color saturation of the display also reaches 72% (CIE1931). In terms of backlight, this product adopts WLED side entry light source with a service life of 70K hours, including LED driver. G121ean01.2 adopts LVDS (1 ch, 6 / 8-bit) signal interface, with a total of 30 pins, terminal connection, and screen driving voltage of 3.3V (typ.). Its typical vertical refresh rate FV is 60Hz.
G121ean01.3 is a 12.1-inch wide temperature high brightness full view industrial TFT-LCD screen launched by AUO, with working temperature of - 30 ~ 85 ℃ ° C. The storage temperature is - 30 ~ 85 ℃ ° C. The vibration resistance is 1.5g (14.7 M / s) ²)。 Wide color gamut, surface fog, 6 / 8 bit gray scale, wide viewing angle, landscape mode, wide temperature, ultra-high brightness, white LED backlight, backlight life more than 70000 hours, wide screen. Based on its feature screen library, this model is recommended for industrial and outdoor application. G121ean01.3 can provide 1500 CD / m as an IPS, constant black display and transmission LCD module ² The best viewing angle is full angle, and its response time is 25 (typ.) (TR + TD) Ms. Because each pixel adopts 6-bit / 6-bit + hi FRC gray scale signal, this product can display 262K / 16.7M color, and its color saturation reaches 72% (CIE1931). In terms of backlight, this product adopts WLED side entry light source, the service life of the light source is 70K hours, without backlight driving. G121ean01.3 adopts LVDS (1 ch, 6 / 8-bit) signal interface, with a total of 20 pins, terminal connection, and screen driving voltage of 3.3V (typ.). Its typical vertical refresh rate FV is 60Hz.
If you want to develop new products with g121ean01.2 or g121ean01.3 LCD module, please consult online.
