IPA150-E-12I3/I5/I7
WIFI, Bluetooth, 4G Ι Solid hard disk support 1T Max
Ι Adaptive gigabit network chip

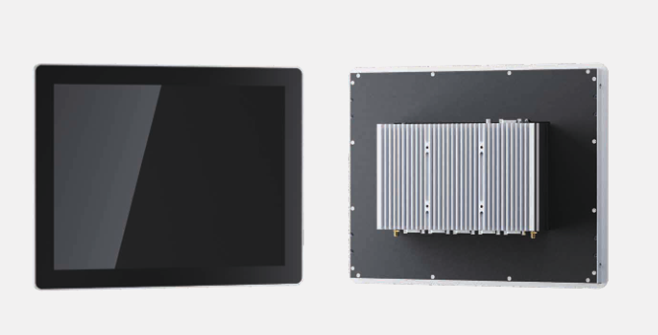

15 inch Ultra-thin All-aluminum Fanless Panel PC
l Intel®Core i3-1215U Six cores and eight threads 0.9-4.4GHz/ i5-1235U Ten cores and twelve threads 1.3-4.4GHz/ i7-1255U Ten cores and twelve threads 1.7-4.7GHz
l DDR4 High speed memory, support MAX 32G; SSD solid hard disk, support MAX 1T
l Dual intel 10M/100M/1000M Adaptive gigabit network chip, 6 serial ports, 4*USB3.0, 2*GLAN, 1*HDMI
l WIFI, Bluetooth, 4G , Wireless configuration optional
l Panel mounting hole dimensions (Recommended) 345mm*271mm (1.50/1.70mm larger than the actual hole size)
l Outline dimension: 358mm*282mm*69mm (W*H*D)
l Installation mode: support 75mm*75mm VESA installation, Front embedded mounting
SPECIFICATION PARAMETER
System Parameters | Model | IPC150-E-12I3 | IPC150-E-12I5 | IPC150-E-12I7 |
CPU | Intel®Core i3-1215U | Intel®Core i5-1235U | Intel®Core i7-1255U |
Frequency | Six cores and eight threads/0.9-4.4GHz | Ten cores and twelve threads/1.3-4.4GHz | Ten cores and twelve threads/1.7-4.7GHz |
Memory | Support DDR4 High speed memory, Support MAX 32GB |
Storage | 1*3.0” SATA + 1*M2 2280 M-key slot |
Network | 2*Intel 1000Mbps, Ethernet interface RJ45 |
I/O Interfaces | Audio frequency | Realtek® HDA Codec, with MIC/Line-out and Amplifier |
USB | 4*USB3.0 |
Serial port | 4*RS-232; 2*RS-232/RS-485(com5/com6) |
Expansion slot | Onboard 1 M.2 2242/50 B-Key card slot, supports 4G; WIFI wireless network card |
Other ports | 1*HDMI/1*DC-IN |
Physical characteristics | Dimension（W*H*D） | 358mm*282mm*69mm |
Hole size (W*H) | 345mm*271mm(1.50/1.70mm larger than the actual hole size) |
Net Weight | 4.56kg |
Operating System | Operating System | support Windows 10, Linux |
Power Supply | Input voltage | 9-36V DC |
Max power consumption | 64W |
Panel | Panel type | 15’’ FULL HD TFT |
Resolution | 1024*768 |
Maximum color | 16.7MB |
Backlight | LED |
Backlight MTBF(hours) | 30,000Hrs |
Pixel pitch | 0.297*0.297 |
Brightness | 350cd/m² |
Contrast Ratio | 700:1 |
Viewing Angle | 80/80/80/80 (L/R/U/D) |
Touch Screen | Touch screen type | 10 contact capacitor touch screen/High tempreture 5wire resistive touch screen/no touch screen |
Transmittance | ＞95% |
Controller | USB interface |
Response time (touch pen) | ＜5ms |
Surface hardness | Mohl hardness 7H |
Touch life | 250g/35,000,000 times |
Stroke life | 250g/5,000,000 times |
Environmental parameter | Operating temperature | 1) Standard: 0~50℃; 2) optional: -20~60℃(Use wide temperature SSD) |
Storage temperature | -20~60℃ |
Relative humidity | 10~95% RH@40℃，non-condensing |
Working vibration | SSD applied:1.5 Grms,5~500Hz, 1 Hr/axis |
Working impact | SSD applied:10G, Half sine wave |
EMC | CE/FCC, Class B |
Waterproof | IP65 (Front panel) |

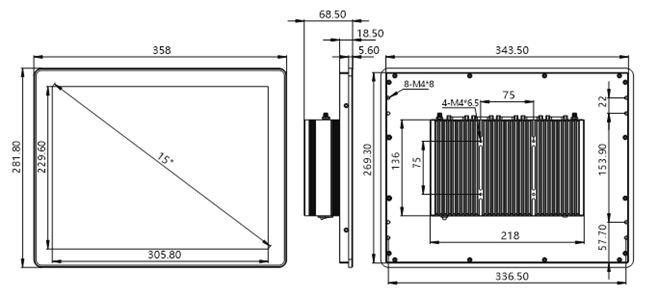

DIMENSIONS

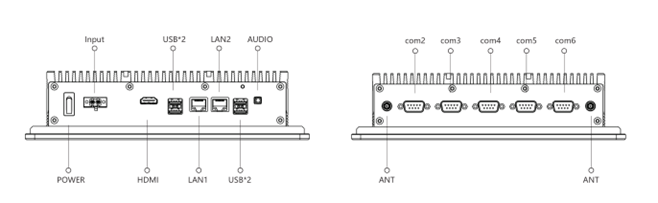

INTERFACE DRAWING

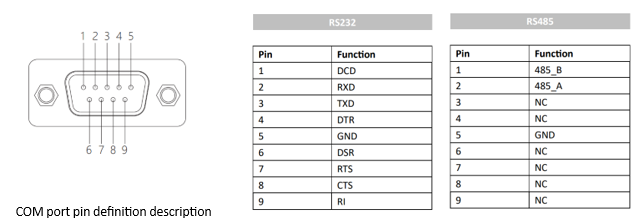

PIN DEFINITION
