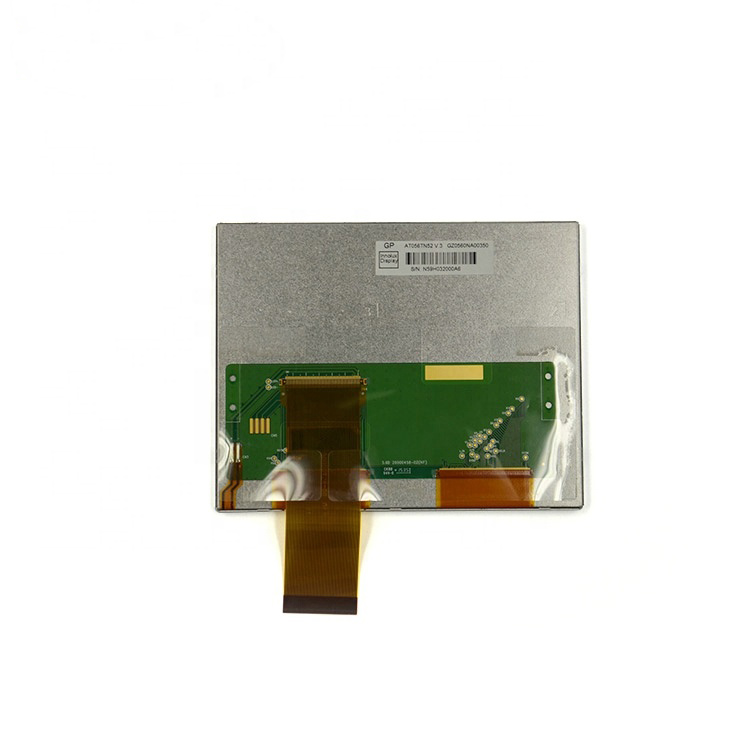

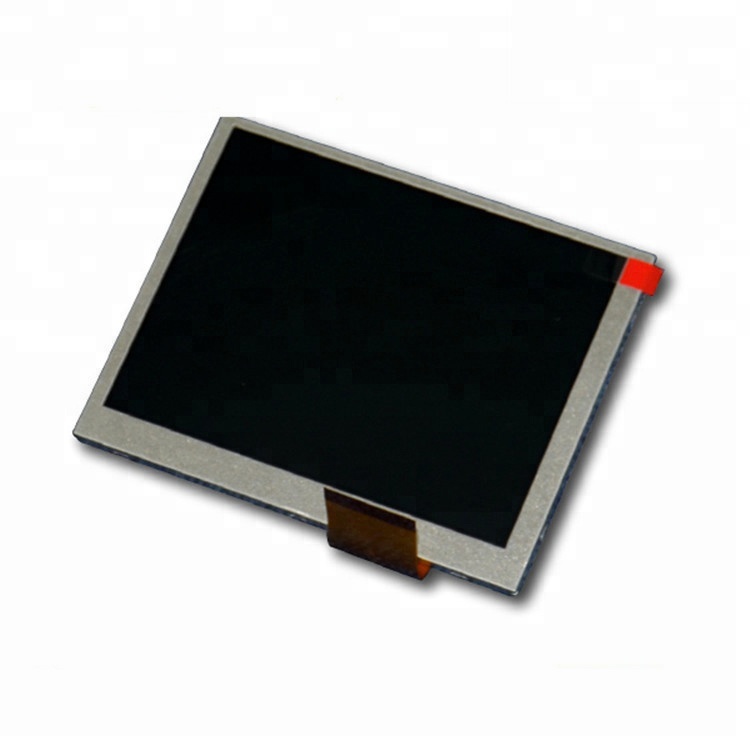

Innolux AT056TN52 V.3 5.6inch LCD Panel
AT056TN52 V 3 has been discontinued for many years. We recommend using the DS-TO565BGEA-015.6-inch assembled screen as a direct replacement. Interested customers can email our customer service to request the DS-TO565BGEA01 product specification sheet.
Innolux AT056TN52 V.3 Application Details
| Basic Detail : | Panel Brand
| INNOLUX/CHI MEI | Model Name | AT056TN52 V.3 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | |
| Panel Size | 5.6” | Designed For | Industrial，Digital Photo Frame，Video Door Phone，VOIP Phone |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| RoHS | RoHS | Vibration Level | - |
| Features : | WLED Backlight，U/D.L/R Reverse，Matte |
Innolux AT056TN52 V.3 Optical Details
| Basic Information : | Luminance | 200 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 10/15 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | X:0.310; Y:0.330 | Display Colors | 16.7M (8-bit) |
Color Temperature | 6638K | White Variation | 1.33/1.43 (Typ./Max.)(9 points) |
Innolux AT056TN52 V.3 Mechanical Details
| Pixel Features : | Number of Pixel | 640(RGB)*480, VGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W*H) | 0.0588*0.1764 mm (H*V) | Pixel Pitch (W×H) | 0.1764*0.1764 mm (H*V) [143PPI] |
| Physical Size : | Active Viewing(mm) | 112.896*84.672 mm (H*V) | Bezel Area (mm) | 115.90*87.67 mm (H*V) |
| Outline Dim.(mm) | 126.5*100 mm (H*V) | Depth(mm) | 5.7±0.3 mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| Other Spec : | Weight | 127.5g (Typ.) | Surface | Antiglare |
Innolux AT056TN52 V.3 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 1.047W (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
Innolux AT056TN52 V.3 Interface Details
| Signal Electrical : | Signal Interface | Parallel RGB (1 ch, 8-bit) | Logic Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC |
| Signal Electrical : | Voltage Input | 3.3/5.0/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) | Current Input | 10/16/0.12/0.13mA (Typ.)(ICC/IDD/IGH/IGL) |
| Consumption | 117mW (Typ.) |
| Interface Features : | Position | - | Physical Type | FPC |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| |
| 0.5mm | 40 pins | 1 pcs | DRGB-50P1C8B-110A |
Innolux AT056TN52 V.3 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 3S5P | Position | Edge light type |
| Exchange |
- | Lamp Shape | Array | Lamp Life | 20K(Min.) (Hours) |
| Lamp Electrical : | Voltage Supply | 8.4/9.3/10.5V (Min./Typ./Max.) | Current Supply | 100±10mA |
| Consumption | 930mW (Typ.) |
| Interface Features : | Position | - | Physical Type | Included in panel signal interface |
| Backlight Driver : | No |
Innolux AT056TN52 V.3 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 60pcs / box | 10.31±0.52 Kgs | 530*355*255 mm |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for AT056TN52 V.3. Please include your application and required quantity so we can confirm the applicable revision.
