AT056TN53 V.1 is compatible with alternative assembly LCD screens PC056TN53 V.1, manufactured by Innolux LCD glass, with reliable quality and guaranteed quality. It is shipped in large quantities and steadily every month. If you have a large usage and need to reduce costs, we recommend PC056TN53 V.1. Cost-effective.
Innolux AT056TN53 V.1 Application Details
Basic Detail :
Panel Brand
INNOLUX/CHI MEI
Model Name
AT056TN53 V.1
Panel Type
a-Si TFT-LCD , LCM
Another Name
Panel Size
5.6”
Designed For
Industrial，Digital Photo Frame，Video Door Phone，VOIP Phone
Maximum Ratings :
OP Temperature
-20 ~ 70 °C
ST Temperature
-30 ~ 80 °C
RoHS
RoHS
Vibration Level
-
Features :
WLED Backlight，U/D.L/R Reverse，With LED Driver，Matte
Innolux AT056TN53 V.1 Optical Details
Basic Information :
Luminance
350 cd/m²(Typ.)
Contrast Ratio
500 : 1 (Typ.) (Transmissive)
Good View at
6 o'clock
Response Speed
10/15 (Typ.)(Tr/Td) (ms)
Viewing Angle
70/70/50/70 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
X:0.310; Y:0.330
Display Colors
262K (6-bit)
Color Temperature
6638K
White Variation
1.33/1.43 (Typ./Max.)(9 points)
Innolux AT056TN53 V.1 Mechanical Details
Pixel Features :
Number of Pixel
640(RGB)*480, VGA
Arrangement
RGB Vertical Stripe
Dot Pitch
0.0588*0.1764 mm (H*V)
Pixel Pitch (W*H)
0.1764*0.1764 mm (H*V) [143PPI]
Physical Size :
Active Viewing(mm)
112.896*84.672 mm (H*V)
Bezel Area (mm)
115.90*87.67 mm (H*V)
Outline Dim.(mm)
126.5*100 mm (H*V)
Depth(mm)
5.7±0.3 mm
Outline Features :
Form Style
Flat Rectangle
Outline Shape
Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Other Spec :
Weight
83.1g (Typ.)
Surface
Antiglare
Innolux AT056TN53 V.1 Electronics Details
Refresh Rate :
60Hz
Reverse Scan :
Yes (U/D, L/R)
Power Consumption :
2.56W (Typ.)
Time Controller (T-CON) :
Embedded T-CON
Innolux AT056TN53 V.1 Interface Details
Signal Electrical :
Signal Interface
Parallel RGB (1 ch, 6-bit)
Logic Voltage
0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Signal Electrical :
Voltage Input
3.3V (Typ.)(VCC)
Current Input
200/250mA (Typ./Max.)(ICC)
Consumption
660mW (Typ.)
Interface Features :
Position
-
Physical Type
FPC
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Pin Assignment
0.5mm
40 pins
1 pcs
DRGB-40P1C6B-260B
Innolux AT056TN53 V.1 Backlight Details
Lamp Features :
Lamp Type
WLED
Quantity
-
Position
Edge light type
Exchange
-
Lamp Shape
-
Lamp Life
20K(Min.) (Hours)
Lamp Electrical :
Voltage Supply
5.0±0.2V
Current Supply
380/450mA (Typ./Max.)
Consumption
1.90W(Typ.)
Interface Features :
Position
-
Physical Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Innolux AT056TN53 V.1 Carton Details
Package Box :
Amount
Weight
Size (L*W*H)
60pcs / box
8.88±0.44 Kgs
530*355*255 mm
Verified purchasing summary
AT056TN53 V.1 specifications, applications and sourcing advice

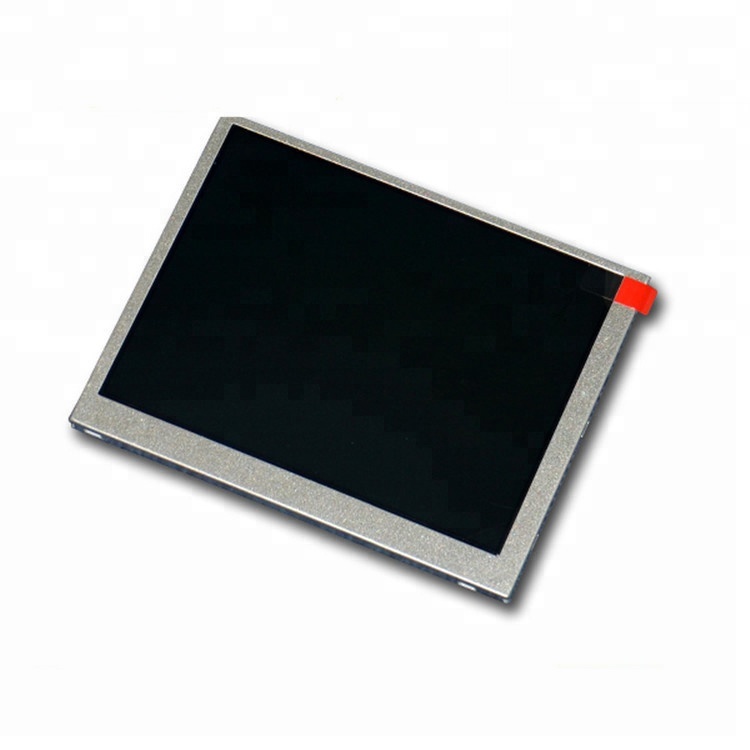

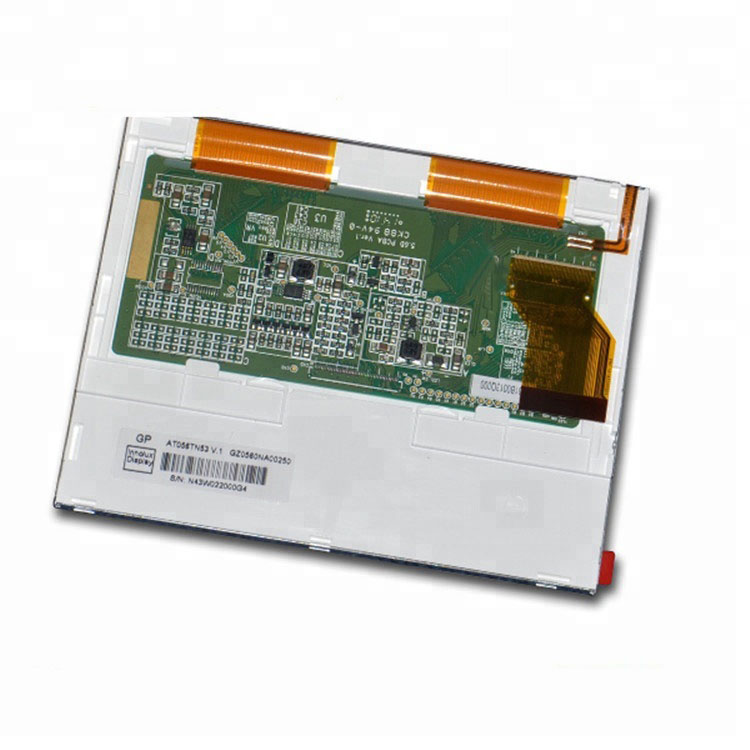

AT056TN53 V.1 is a 5.6-inch 4:3 VGA Innolux module for compact industrial and embedded systems. The V.1 suffix, 40-pin FPC orientation and parallel RGB timing must be preserved during replacement screening.
Verification note: Values are based on the current product record. Confirm the latest manufacturer datasheet, drawing and supply status for the exact revision before approval or purchase.
Updated: · Reviewed by: Xuhong LCD Technical Content Team
Data sources:
Current AUO-LCD product record for AT056TN53 V.1
Latest Innolux datasheet, pin map and mechanical drawing required for final approval
Method: Specifications are checked against the current product record and converted into practical compatibility and purchasing guidance. Final approval requires the latest manufacturer documentation for the exact suffix.
Key specifications
Panel size
5.6 inch
Resolution
640 × 480 (VGA)
Brightness
350 cd/m² typical
Contrast
500:1 typical
Interface
Single-channel 6-bit parallel RGB, 40-pin 0.5 mm FPC
Viewing angle
70/70/50/70 typical
Operating range
-20°C to 70°C listed operating range
Outline
126.5 × 100 × 5.7 mm typical outline
Backlight
WLED, 20,000-hour minimum listed life, integrated LED driver
Supply status
Listed in production; reconfirm before purchase
Application scenarios
Industrial HMI and measurement equipment
Video intercom and compact communication terminals
Legacy embedded systems using 5.6-inch VGA panels
Selection advice
Confirm the 126.5 × 100 mm outline, 40-pin 0.5 mm FPC, single-channel 6-bit RGB timing, 3.3 V supply, integrated backlight-driver input, viewing direction and enclosure fit.
Compatibility and replacement guidance
The existing page mentions PC056TN53 V.1 as a lower-cost alternative, but it must not be treated as a guaranteed drop-in replacement. Verify glass source, mechanical drawing, pin assignment, voltage, timing, optical performance and reliability evidence.
Frequently asked questions
What interface does AT056TN53 V.1 use?
The current product record lists single-channel 6-bit parallel RGB on a 40-pin 0.5 mm FPC.
Can PC056TN53 V.1 be used as a direct replacement?
Not without validation. Compare the latest drawings, pin assignment, voltage, timing, optical values, backlight and qualification requirements.
Is the panel suitable for industrial use?
The page lists industrial applications and -20°C to 70°C operation, but the complete product and environment must be validated for the final system.
What should be included in an RFQ?
Provide the full model and revision, label photos, quantity, application, destination, delivery date and any cable, touch or controller needs.
