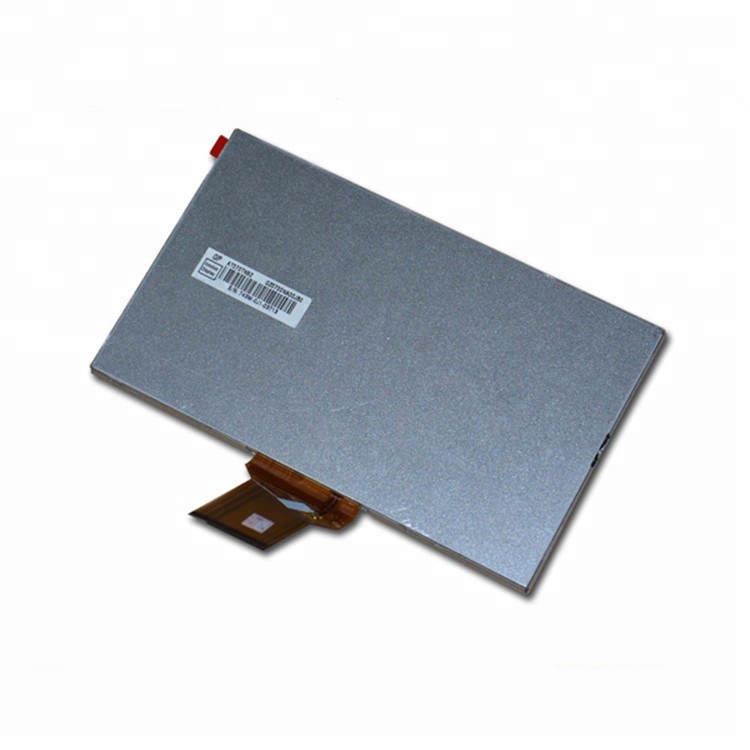

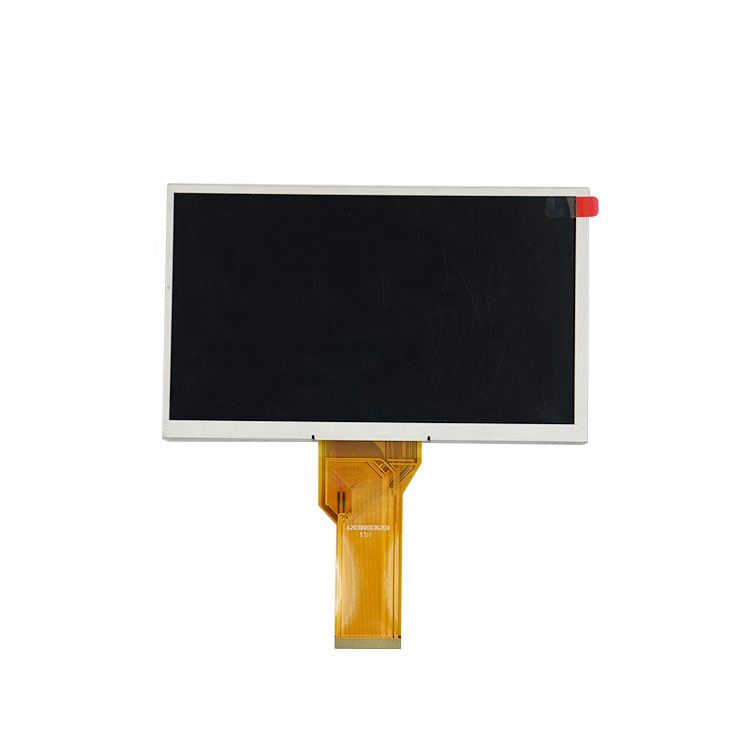

• Innolux AT070TN92 7-inch LCD | 800x480 50-pin RGB
  • Innolux AT070TN92 7-inch LCD | 800x480 50-pin RGB
  • Model:AT070TN92
  • Brand:Innolux
  • Size:7.0 inch
  • Resolution:800×480
  • Brightness:250 cd/m² (Typ.)
  • Perspective:70/70/50/70
  • Interface:Parallel RGB, 50-pin FPC
  • Operating Temp.:-20 ~ +70 °C
  • Production State:Contact us to confirm
  • Click For Price
  • Technical Parameters
  • Innolux AT070TN92 7.0 inch LCD Panel

    Innolux AT070TN92 is a 7-inch 800 × 480 LCD module with a 50-pin parallel RGB interface and 250 cd/m² typical brightness. Request the applicable datasheet, availability and quotation for the original panel.

    Looking for a cost-effective assembled alternative? Xuhong also supplies PC070TN92-L, the long-FPC version, with quality assurance and project support. Compare the two supply options below.

    Request AT070TN92 datasheet & quote

    AT070TN92 specifications

    The original-panel specifications below are summarized from Innolux Final Specification V08, dated 14 November 2023, document A070-92-TT-03. Optical values use the stated test conditions, including 25 °C ambient and 180 mA backlight current.

    ParameterAT070TN92 specification
    Manufacturer / modelInnolux / AT070TN92
    Size / resolution7.0 inches / 800 × 480 pixels (WVGA)
    Display modeTN, normally white, transmissive; anti-glare surface
    Luminance250 cd/m² typical; 200 cd/m² minimum
    Contrast ratio800:1 typical; 600:1 minimum, per Final Specification V08
    Viewing angles70° left / 70° right / 50° up / 70° down, typical at CR ≥ 10
    Response time10 ms on / 15 ms off, typical
    Luminance uniformity75% typical; 70% minimum
    Active area (W × H)154.08 × 85.92 mm
    Module size (W × H × D)164.9 × 100.0 × 5.7 mm, per general specifications; use the mechanical drawing for tolerances and local details
    Weight150 g typical
    Signal interfaceParallel RGB digital input, 18/24-bit RGB configurations; DE/SYNC mode selection
    FPC connection50 pins, 0.5 mm pitch; recommended mating connector: Hirose FH12A-50S-0.5SH
    Typical supply railsDVDD 3.3 V; AVDD 10.4 V; VGH +16.0 V; VGL −7.0 V. VCOM requires module-specific adjustment.
    Backlight drive180 mA typical; 170–200 mA specified range. LED voltage 9.3 V typical at 25 °C and 180 mA.
    Backlight lifetime20,000 hours minimum to 50% initial brightness at 25 °C and 180 mA
    Typical component power1.900 W: panel 0.226 W plus backlight 1.674 W. External controller/driver losses are additional.
    Operating temperature−20 to +70 °C, as listed in the specification
    Storage temperature−30 to +80 °C

    Parallel RGB interface and controller matching

    AT070TN92 uses parallel RGB signals. LVDS, VGA and HDMI are not native inputs of the bare panel. If your host provides one of these outputs, send the host and controller details so we can review a suitable controller and cable configuration.

    The module requires multiple supply rails and the specified power sequence. A 3.3 V logic supply alone does not power the complete display. Confirm the pin assignment, signal levels, timing, VCOM setting and backlight driver before connecting a sample.

    PC070TN92-L assembled alternative with long FPC

    Hangzhou Xuhong Technology offers PC070TN92-L as a cost-effective assembled alternative to the original Innolux AT070TN92, with Xuhong quality assurance. The L suffix identifies the long-FPC version; the supplied Version 01 specification, dated 24 February 2022, identifies an 80 mm FPC on its cover.

    Choose this option when you want to evaluate an assembled replacement and need the longer flex cable for installation. Tell us which panel and controller are currently fitted so we can confirm the proposed configuration, sample and quotation.

    On small screens, scroll horizontally inside the table to compare both models.

    ComparisonInnolux AT070TN92PC070TN92-L
    Supply optionOriginal Innolux LCD moduleXuhong-supplied assembled alternative; L denotes the long-FPC version
    Size / resolution7 inches / 800 × 4807 inches / 800 × 480
    Active area154.08 × 85.92 mm154.08 × 85.92 mm
    Typical luminance250 cd/m²300 cd/m²
    Typical contrast ratio800:1 (V08)500:1 (Version 01)
    Typical viewing angles (L/R/U/D)70° / 70° / 50° / 70°80° / 80° / 60° / 80°
    Interface / connectionParallel RGB / 50-pin FPCParallel RGB / 50-pin FPC; specification cover identifies an 80 mm FPC
    Typical backlight drive180 mA; 9.3 V120 mA; 9.0 V
    Mechanical fit / temperatureUse the applicable Innolux drawing and temperature limitsConfirm the approved assembly drawing and temperature range with your quotation

    Backlight driver check: the PC070TN92-L specification lists 120 mA typical and 150 mA maximum, while the original AT070TN92 uses 180 mA typical. Check and adjust the driver for the selected assembly; do not reuse the original backlight-current setting without review.

    Confirm FPC length, contact orientation, pin assignment, timing, enclosure clearances and the approved operating-temperature range before approving the replacement. Ask for the current assembly drawing and validate a sample in your equipment.

    Request PC070TN92-L sample & quote

    Touch screens, driver boards and bonding

    We support display assemblies with matching driver boards and touch screens, including frame bonding and optical bonding. Send the host output, touch interface, cover-glass drawing and installation requirements for a configuration review.

    Explore capacitive touch-screen and bonding options · Browse Innolux 7-inch panel records

    What to include in your enquiry

    Specify original Innolux AT070TN92 or PC070TN92-L assembled alternative, along with quantity, application, delivery country and required date. For a replacement, also provide the installed model, controller details, FPC routing and mechanical constraints.

    We will confirm the supplied configuration, applicable specification, availability, sample options, quality-assurance terms, price and lead time with your quotation.

    Enquire about original AT070TN92Enquire about PC070TN92-L

    Complete your display assembly

    Build a display assembly around AT070TN92. Explore touch panels, LCD controller boards and signal or backlight cables.

    Touch panels and bonding

    Review touch dimensions, host connection, cover glass and bonding requirements.

    LCD controller boards

    Match the host video output to the panel interface, timing and power requirements.

    Signal and backlight cables

    Confirm both connector ends, pin mapping, cable length and backlight connections.

    We will review the selected panel, controller firmware, cable pinout, power and touch configuration before confirming the proposed assembly. Send your quantity, application, delivery country and required date.

    Request a matched display assembly

Datasheet and Drawing Request

Contact us to request the current datasheet and mechanical drawing for AT070TN92. Please include your application and required quantity so we can confirm the applicable revision.

Request AT070TN92 Datasheet
