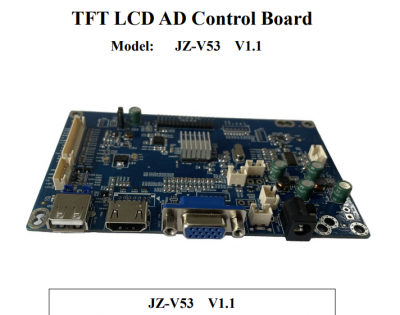

  • JZ-V53 V1.1 TFT LCD AD Control Board
  • JZ-V53 V1.1 TFT LCD AD Control Board
  • JZ-V53 V1.1 TFT LCD AD Control Board
  • Model:JZ-V53
  • Brand:Xuhong
  • Aximum:≤ 1920*1200
  • Size: ≤82"
  • Maximum resolution supported:
  • Interface signal:1 VGA / 1 HDMI/2 CVBS(I)/1CVBS(O)
  • LCDinterface:
  • Operating Temp.:-20 ~ 60 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1Product Overview

    The driver board is mainly used to support TFT LCD, with 1-channel VGA, 2-channel CVBS input, 1-channel CVBS output, 1-channel USB, 1-channel YPbPr and 1-channel HDMI / DVI interface, supporting LVDS (6-bit, 8-bit) output. The main board adopts MSTAR signal processing chip, which has powerful processing function and can support all kinds of standard and non-standard signals. Using high specification devices, it has good working performance.


    Operating temperature range - 20 to 60 °C

    board with solid-state capacitor,the operating temp is -30~70℃

    Support the maximum resolution to 1920x1200

    Remote control function


    2、GENERAL SPECIFICATION

    2 channels of CVBS signal input, 1 channel of CVBS output, 1 channel of VGA, 1 channel of HDMI / DVI, 1 channel of YPbPr and 1 channel of USB

    Video System support: NTSC m, NTSC-J, NTSC 4.43, pal (B, D, G, h, m, N, I, NC), 3D image filter

    Bitmap OSD menu and control

    Support boot screen display

    Flip/ mirror and rotate function

    Audio input function

    2x8W Audio amplifier speake

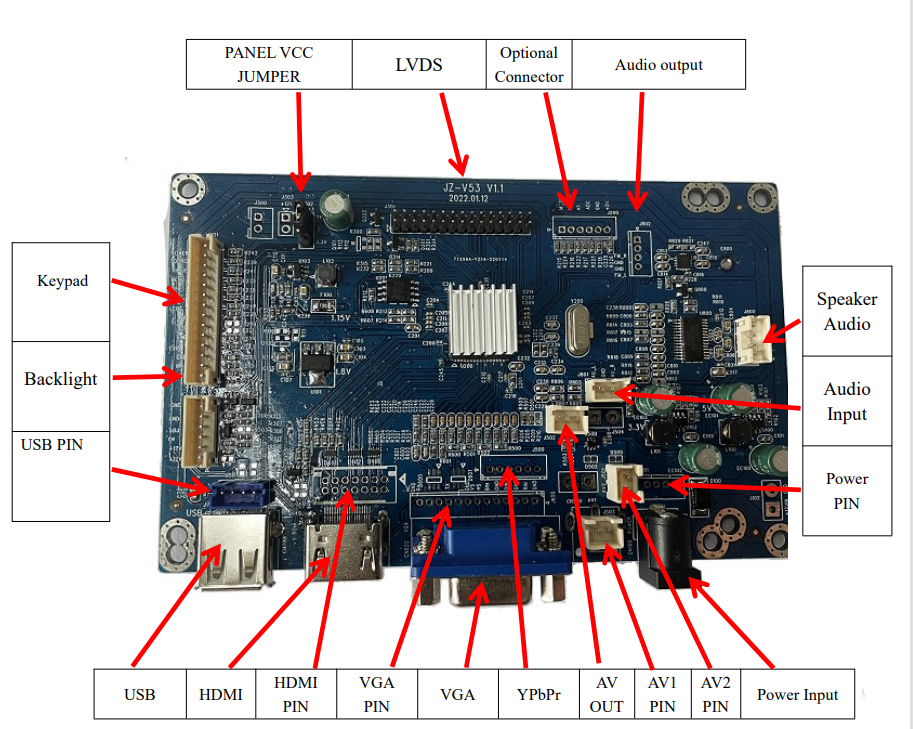

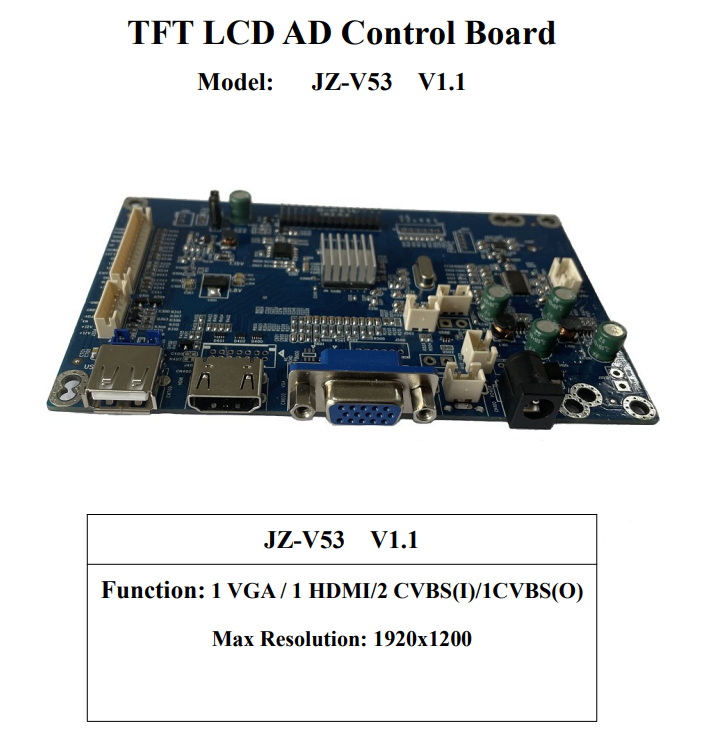

    3、CONTROLLER PICTURE

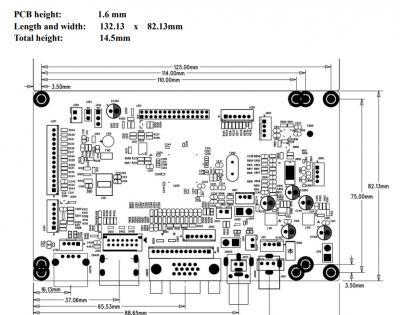

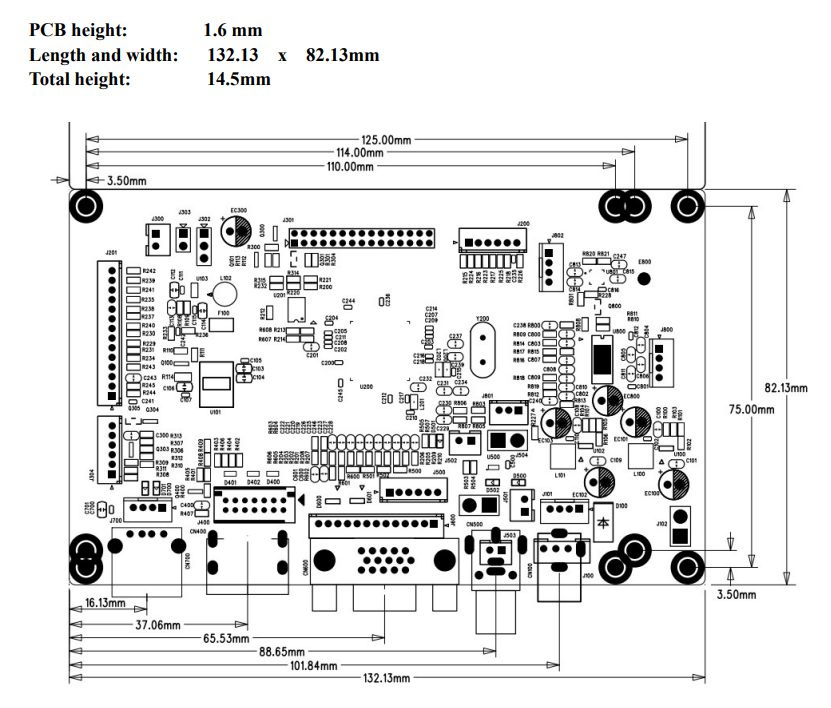

    4、CONTROLLER DIMENSIONS
