• Technical Parameters

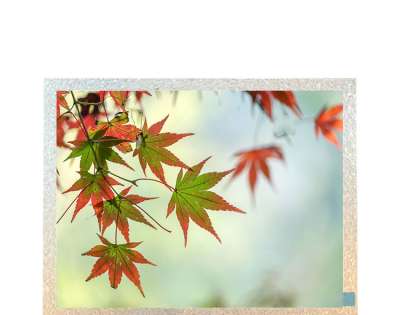

TIANMA P1010WSF1MB00 10.1inch LCD Panel

• 1.TIANMA P1010WSF1MB00 Application Details

  Basic Information :	Brand	TIANMA	Model	P1010WSF1MB00
  	Type	a-Si TFT-LCD , LCM	Used For	Industrial，Healthcare
  	Screen Size	10.1 inch
  Environment :	Storage Temp.	-30 ~ 80 °C	Operating Temp.	-20 ~ 70 °C
  	RoHS	RoHS
  Typical Features :	WLED Backlight，6/8 bit，Matte




  2.TIANMA P1010WSF1MB00 Mechanical Details

  Pixel Features :	Resolution	1024(RGB)×600, WSVGA	Dot Pitch(mm)	0.0725×0.2088 (H×V)
  	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.2175×0.2088 (H×V)  [117PPI]
  Mechanical Size :	Active Area(mm)	222.72(H) × 125.28(V)	Bezel Area(mm)	225.52(H) × 128.1(V)
  	Outline Dim.(mm)	235(H) × 143(V)	Depth(mm)	4.9(Typ.)
  Outline Features :	Form Style	Flat Rectangle	Shape Style
  	Aspect Ratio	16:9 (H:V)	Orientation	Landscape type
  Mounting :	Without
  Other Spec :	Weight	-	Treatment	Antiglare




  3.TIANMA P1010WSF1MB00 Optical Details

  Basic Information :	Luminance(cd/m²)	450 (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
  	Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Display Mode	FFS, Normally Black, Transmissive
  	Best View on	Symmetry	Response(ms)	30 (Typ.)(Tr+Td)
  Color Performance :	White Coordinate	-	Display Colors	262K/16.7M (6-bit / 6-bit + Hi-FRC)
  Dispaly Performance :	Outdoor Visibility	Sunlight Readable	Transmissivity	-




  4.TIANMA P1010WSF1MB00 Electronics Details

  Frame Rate :

  60Hz




  5.TIANMA P1010WSF1MB00 Interface Details

  Signal Type :

  Parallel RGB (1 ch, 8-bit)

  Logic Voltage

  -




  6.TIANMA P1010WSF1MB00 Backlight Details

  Backlight Features :	Type	WLED	Quantity	-	Position	Edge light type
  	Replacement	-	Shape	-	Life Time	30K(Typ.) Hours
