• Technical Parameters

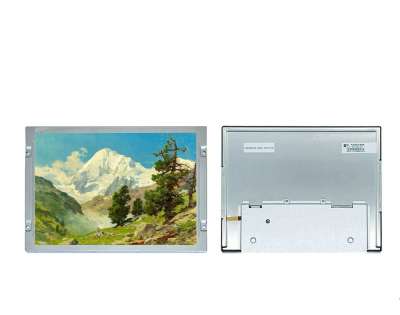

TIANMA P1010WSN1ME01 10.1inch LCD Panel

• 1.TIANMA P1010WSN1ME01 Application Details

  Basic Info :	Panel Brand	TIANMA	Panel Model	P1010WSN1ME01
  	Diagonal Size	10.1"	Application	Industrial
  	Panel Type	a-Si TFT-LCD , LCM	Model Alias	-
  Reliability :	Operating Temp.	-20 ~ 70 °C	Storage Temp.	-30 ~ 80 °C
  	RoHS	RoHS	Vibration Rating	-
  Specific Features :	WLED Backlight，U/D,L/R Reverse，Matte



  2. TIANMA P1010WSN1ME01 Mechanical Details

  Pixel Features :	Pixel Format	1024(RGB)×600, WSVGA	Dot Pitch	0.0725×0.2088 mm (H×V)
  	Configuration	RGB Vertical Stripe	Pixel Pitch	0.2175×0.2088 mm (H×V)  [117PPI]
  Mechanical Size :	Display Area	222.72×125.28 mm (H×V)	Bezel Area	-
  	Outline Dim.	235×143 mm (H×V)	Outline Depth	5.0±0.5 mm
  Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
  	Aspect Ratio	16:9 (H:V)	Shape Style	-
  Holes & Brackets :	Without
  Other Features :	Weight	272±14g	Surface	Antiglare




  3. TIANMA P1010WSN1ME01 Optical Details

  Basic Information :	Brightness	350 cd/m² (Typ.)	Contrast Ratio	500:1 (Typ.)   (Transmissive)
  	Viewing Angle	80/80/75/80 (Typ.)(CR≥10)	Optical Mode	TN, Normally White,   Transmissive
  	Viewing Direction	6 o'clock	Response Time	35 (Typ.)(Tr+Td) ms
  1931 Color Gamut :	NTSC Ratio	47%	sRGB	65% coverage
  	Adobe RGB	49% coverage	DCI-P3	48% coverage
  	Rec.2020	35% coverage	Remarks	sRGB (Rec.709, BT.709),   Rec.2020 (BT.2020)



   4. TIANMA P1010WSN1ME01 Electronics Details

  Frame Frequency :	60Hz
  Reverse Scan :	Yes (U/D, L/R)
  Time Controller (T-CON) :	Embedded T-CON



  5. TIANMA P1010WSN1ME01 Backlight Details

  Back-light Features :

  Lamp Type

  WLED

  Amount

  3S8P

  Life Time

  30K(Typ.)   (Hours)

  Replacement

  -

  Lamp Shape

  Array

  Position

  Edge light type

  Lamp Electrical :

  Voltage Input

  9.6±0.9V

  Current Input

  224/240mA (Typ./Max.)

  Consumption

  2.15/2.52W (Typ./Max.)

  Interface Features :

  Type

  Connector

  Position

  -

  Lamp Driver

  No

  Interface Detail :

  Brand

  Model

  Pin Pitch

  Pins

  Amount

  Configuration

  JST

  BHSR-02VS-1

  3.5 mm

  2 pins

  1 pcs

  BLE-2PINS-CA




  6. TIANMA P1010WSN1ME01 Interface Detail

  Signal Systerm :	Parallel RGB (1 ch, 8-bit)						Logic Voltage	0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
  Signal Electrical :	Voltage Input		3.3/11/22/-7.0V (Typ.)(VDD/AVDD/VGH/VGL)				Current Input	5/40/0.5/0.5mA (Typ.)(IDD/AIDD/IGH//IGL)
  	Consumption		450mW
  Interface Features :	Type		FPC		Position			-
  FPC Detail :	Brand	Model		Pin Pitch		Pins		Amount	Configuration
  				0.5 mm		50 pins		1 pcs




  7. TIANMA P1010WSN1ME01 Carton Details

  Package Type	Pcs/Package	Package LWH (mm)	G.W (kgs)
  Inner box	14	N/A	N/A
  Outer box	28	544×365×250	11.60
