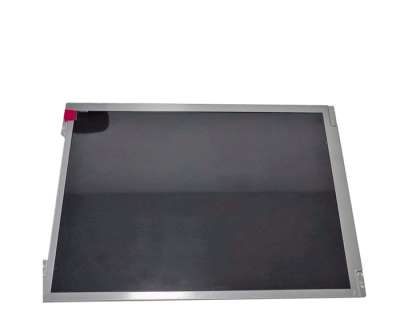

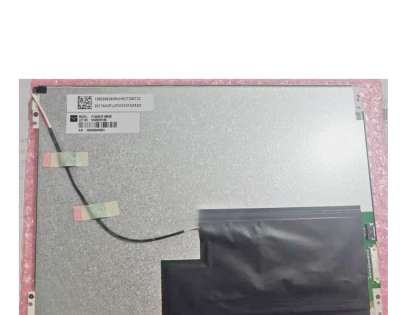

1.TIANMA P1040SVF1MB00 Application Details
Basic Information : | Brand | TIANMA | Model | P1040SVF1MB00 |
Type | a-Si TFT-LCD , LCM | Used For | Industrial |
Screen Size | 10.4 inch | Alias | - |
Environment : | Storage Temp. | -30 ~ 80 °C | Operating Temp. | -20 ~ 70 °C |
RoHS | RoHS | Vibration Level |
|
Typical Features : | WLED Backlight，Life≥50K hours，With LED Driver，180°Reverse，6/8bit，Matte |
2.TIANMA P1040SVF1MB00 Mechanical Details
Pixel Features : | Resolution | 800(RGB)×600 [SVGA] | Dot Pitch(W×H) | 0.088×0.264 mm |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.264×0.264 mm [96PPI] |
Mechanical Size : | Active Viewing | 211.2(W)×158.4(H) mm | Overall Dim. | 236(W)×176.9(H) mm |
Bezel Opening | - | Depth(mm) | 6.02±0.4 mm |
Outline Features : | Form Style | Flat Rectangle | Shape Style |
|
Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
Holes & Brackets : | Face mounting holes (4 pcs) on left, right bezel |
Other Spec : | Weight | TBD | Treatment | Antiglare |
3.TIANMA P1040SVF1MB00 Optical Details
Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Display Mode | SFT, Normally Black, Transmissive |
Best View on | Symmetry | Response(ms) | 35 (Typ.)(Tr+Td) |
| Color Performance : | Chromaticity | Wx:0.305; Wy:0.335 | Support Color | 262K/16.7M (6-bit / 8-bit) |
Color Temperature | 6859K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
1931 Color Gamut : | NTSC Ratio | 54% | sRGB | 74% coverage |
Adobe RGB | 57% coverage | DCI-P3 | 56% coverage |
Rec.2020 | 41% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. TIANMA P1040SVF1MB00 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | Yes (180°) |
5.TIANMA P1040SVF1MB00 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | - |
Consumption | 435mW (Typ.) |
Signal Type : | LVDS (1 ch, 6/8-bit) |
Interface Features : | Position | - | Type | Connector |
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
STM | MSB24013P20HA | 1.0mm | 20 pins | 1 pcs |
|
6.TIANMA P1040SVF1MB00 Backlight Details
Backlight Features : | Type | WLED | Amount | 10S3P | Position | Edge light type |
Replacement | - | Shape | 3 strings | Life Time | 50K(Typ.) Hours |
Interface Features : | Position | Type |
- | Connector |
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
STM | MSB24038P5 | 1.25mm | 5pins | 1 pcs |
|
Backlight Driver : | With LED Driver |
Driver Electrical : | Input Current | 213mA (Typ.) | Input Voltage | 12.0±1.2V |
Consumption | 1.92W (Typ.) |
7. TIANMA P1040SVF1MB00 Packing Features
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 8 | 1 | 520×345×74 | N/A | 0.0133 |
Outer box | 24 | 3 | 544×365×250 | 13.14 | 0.0496 |
