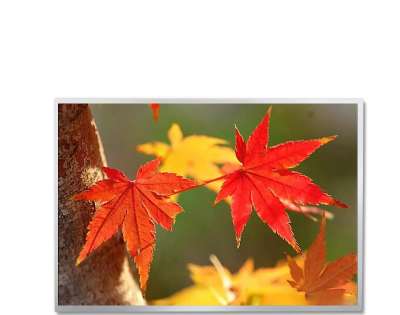

1.TIANMA P1040SVN1ME10 Application Details
Basic Information : | Brand | TIANMA | Model | P1040SVN1ME10 |
Type | a-Si TFT-LCD , LCM | Used For | Industrial |
Screen Size | 10.4 inch | Alias | - |
Environment : | Storage Temp. | -30 ~ 80 °C | Operating Temp. | -20 ~ 70 °C |
RoHS | RoHS | Vibration Level |
|
Typical Features : | WLED Backlight，6/8bit，Matte |
2.TIANMA P1040SVN1ME10 Mechanical Details
Pixel Features : | Resolution | 800(RGB)×600 [SVGA] | Dot Pitch(W×H) | 0.088×0.264 mm |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.264×0.264 mm [96PPI] |
Mechanical Size : | Active Viewing | 211.2(W)×158.4(H) mm | Overall Dim. | 228.4×175.4 mm(H×V) |
Bezel Opening | 214.2×162.5 mm(H×V) | Depth(mm) | 6.2±0.3 mm |
Outline Features : | Form Style | Flat Rectangle | Shape Style |
|
Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
Holes & Brackets : | Without |
Other Spec : | Weight | 350g (Typ.) | Treatment | Antiglare |
3.TIANMA P1040SVN1ME10 Optical Details
Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
Best View on | 6 o'clock | Response(ms) | 25 (Typ.)(Tr+Td) |
Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
7239K | 262K/16.2M (6-bit / 6-bit + FRC) | Wx:0.302; Wy:0.319 |
1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
50% | 70% | 52% |
DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
52% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Luminance Variation : | 1.33/1.43 (Typ./Max.)(9 points) |
4. TIANMA P1040SVN1ME10 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | No |
Power Consumption : | 2.739W (Typ.) |
5.TIANMA P1040SVN1ME10 Interface Details
Signal Electrical : | Voltage Supply | 3.3/11/25/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) | Current Supply | 10.2/34.3/0.7/0.7mA (Typ.)(ICC/IAVDD/IGH/IGL) |
Consumption | 435mW (Typ.) |
Signal Type : | TTL (1 ch, 6/8-bit) |
Interface Features : | Position | - | Type | FPC |
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
|
| 0.5mm | 60 pins | 1 pcs |
|
6.TIANMA P1040SVN1ME10 Backlight Details
Backlight Features : | Type | WLED | Amount | 3S12P | Position | Edge light type |
Replacement | - | Shape | Array | Life Time | 30K(Typ.) Hours |
Lamp Electrical : | Input Current | 240/360mA (Typ./Max.) | Input Voltage | 9.0/9.6/9.9V (Min./Typ./Max.) |
Consumption | 2.304W (Typ.) |
Interface Features : | Position | WLED Driver State | Type |
- | No | Connector |
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
JST | BHSR-02VS-1 | 3.5mm | 2pins | 1 pcs | BLE-2PINS-AC |
7. TIANMA P1040SVN1ME10 Packing Features
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 22 | 1 | 544×365×250 | 9.06 | 0.0496 |
