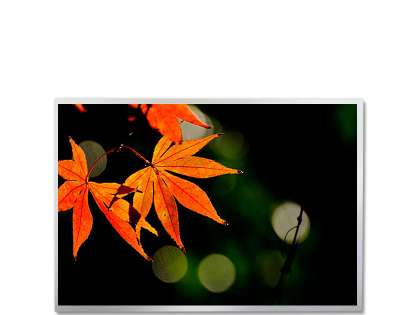

1.TIANMA P1040VGF1MB00 Application Details
Basic Information : | Brand | TIANMA | Model | P1040VGF1MB00 |
Type | a-Si TFT-LCD , LCM | Used For | Industrial |
Screen Size | 10.4 inch |
|
|
Environment : | Storage Temp. | -30 ~ 80 °C | Operating Temp. | -30 ~ 85 °C |
RoHS | RoHS | Vibration Level | 2.0G (19.6 m/s²) |
Typical Features : | Wide Temperature,WLED Backlight，Life≥70K hours，180°Reverse,Matte |
2.TIANMA P1040VGF1MB00 Mechanical Details
Pixel Features : | Resolution | 640(RGB)×480, VGA | Dot Pitch(W×H) | 0.11×0.33 mm |
Pixel Format | RGB Vertical Stripe | Pixel Pitch(W×H) | 0.33×0.33 mm [76PPI] |
Mechanical Size : | Active Area | 211.2(W)×158.4(H) mm | Overall Dim. | 243(W)×185.1(H) mm |
Bezel Opening | 215.4(W)×161.8(H) mm | Depth(mm) | 8.6/11.47 (Typ./Max.) mm |
Outline Features : | Form Style | Flat Rectangle | Shape Style |
|
Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
Fixation : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel |
Other Spec : | Weight | 475g (Typ.) | Treatment | Antiglare, Hard coating (3H) |
3.TIANMA P1040VGF1MB00 Optical Details
Basic Information : | Luminance(cd/m²) | 450 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Display Mode | SFT, Normally Black, Transmissive |
Best View on | Symmetry | Response(ms) | 25 (Typ.)(Tr+Td) |
Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
7213K | 262K (6-bit) | X:0.301; Y:0.325 |
1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
59% | 81% | 62% |
DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
61% | 44% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Luminance Variation : | 1.25/1.39 (Typ./Max.)(5 points) |
4. TIANMA P1040VGF1MB00 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | Yes (180°) |
Time Controller (T-CON) : | Embedded T-CON |
5.TIANMA P1040VGF1MB00 Interface Details
Signal Electrical : | Voltage Supply | 3.3/5.0V (Typ.)(VCC) | Current Supply | 85/73mA (Typ.)(3.3/5.0V) |
Consumption | 280.5/365mW (Typ.)(3.3/5.0V) |
Signal Type : | Parallel RGB (1 ch, 6-bit) |
Logic Voltage : | GND≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC |
Interface Features : | Position | - | Type | Connector |
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
STM | MSAK24025P40 | 0.5 | 40 pins | 1 pcs |
|
6.TIANMA P1040VGF1MB00 Backlight Details
Backlight Features : | Type | WLED | Amount | 6S3P | Position | Edge light type |
Replacement | - | Shape | 3strings | Life Time | 70K(Typ.) Hours |
WLED Electrical : | Input Voltage | Input Current | Consumption |
18.0±1.8V | 50/55mA (Typ./Max.) | 2.70W (Typ.) |
Interface Features : | WLED Driver State | Physical Type | Interface Position |
No | Connector | - |
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
STM | MS24011P8RA | 1.0 mm | 8 pins | 1 pcs | BLE-8PINS-ACACACNN |
7.TIANMA P1040VGF1MB00 Packing Features
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 16 | 1 | 544×273.5×312.5 | 9.39 | 0.0465 |
