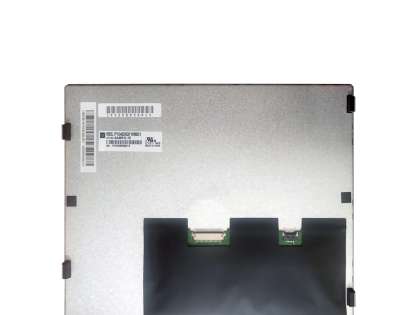

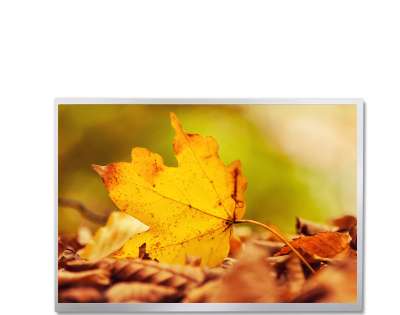

1.TIANMA P1040XGF1MB01 Application Details
Basic Information : | Brand | TIANMA | Model | P1040XGF1MB01 |
Type | a-Si TFT-LCD , LCM | Used For | Industrial |
Screen Size | 10.4 inch | Alias | - |
Environment : | Storage Temp. | -30 ~ 80 °C | Operating Temp. | -20 ~ 70 °C |
RoHS | RoHS | Vibration Level |
|
Typical Features : | WLED Backlight，Life≥50K hours，With LED Driver，180°Reverse,6/8bit，Matte |
2.TIANMA P1040XGF1MB01 Mechanical Details
Pixel Features : | Resolution | 1024(RGB)×768 [XGA] | Dot Pitch(mm) | 0.0685×0.2055 |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (mm) | 0.2055×0.2055 [123PPI] |
Mechanical Size : | Active Viewing | 210.432(W)×157.824(H) mm | Bezel Opening | 213.43(W)×160.82(H) mm |
Overall Dim. | 230(W)×175.8(H) mm | Depth(mm) | 5.7/9.06 (Typ./Max.) mm |
Outline Features : | Form Style | Flat Rectangle | Shape Style |
|
Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
Fixation : | Side mounting holes (4-M3) on left, right bezel |
Other Spec : | Weight | 430g (Typ.) | Treatment | Antiglare |
3.TIANMA P1040XGF1MB01 Optical Details
Basic Information : | Luminance(cd/m²) | 500 (Typ.) | Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | SFT, Normally Black, Transmissive |
Best View on | Symmetry | Response(ms) | 35 (Typ.)(Tr+Td) |
Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
6485K | 6727K | Wx:0.308; Wy:0.332 |
1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
56% | 78% | 59% |
DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
58% | 42% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Luminance Variation : | 1.18/1.33 (Typ./Max.)(9 points) |
4. TIANMA P1040XGF1MB01 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | Yes (180°) |
5.TIANMA P1040XGF1MB01 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 430/650mA (Typ./Max.) |
Consumption | 1.42/2.15W (Typ./Max.) |
Signal Type : | LVDS (1 ch, 8-bit) |
Interface Features : | Position | - | Type | Connector |
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
HRS | DF19K-20P-1H | 1.0mm | 20 pins | 1 pcs |
|
6.TIANMA P1040XGF1MB01 Backlight Details
Backlight Features : | Type | WLED | Amount | 8S4P | Position | Edge light type |
Replacement | - | Shape | Array | Life Time | 50K(Typ.) Hours |
Interface Features : | Position | Backlight Driver | Type |
- | With LED Driver | Connector |
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
STM | MSB24038P5 | 1.25 mm | 5pins | 1 pcs |
|
Backlight Driver : | With LED Driver |
Driver Electrical : | Input Voltage | 12.0V (Typ.) | Input Current | 330/495mA (Typ./Max.) |
Consumption | 3.97/5.94W (Typ./Max.) |
7. TIANMA P1040XGF1MB01 Packing Features
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 6 | 1 | 520×345×74 | N/A | 0.0133 |
Outer box | 18 | 3 | 544×365×250 | 12.64 | 0.0496 |
