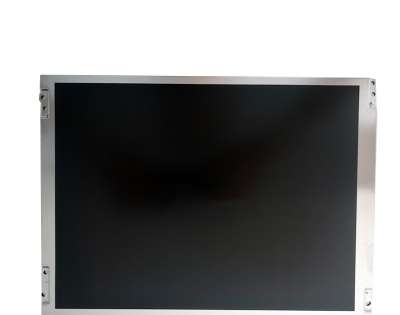

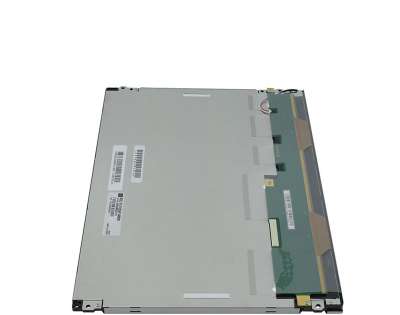

1.TIANMA P1210SVF1MB00 Application Details
Basic Information : | Brand | TIANMA | Model | P1210SVF1MB00 |
Type | a-Si TFT-LCD , LCM | Used For | Industrial |
Screen Size | 12.1 inch | Alias |
|
Environment : | Storage Temp. | -30 ~ 80°C | Operating Temp. | -20 ~ 70 °C |
RoHS | RoHS | Vibration Level |
|
Typical Features : | sRGB,WLED Backlight，Life≥50K hours，With LED Driver,180°Reverse，6/8bit，Matte |
2.TIANMA P1210SVF1MB00 Mechanical Details
Pixel Features : | Resolution | 800(RGB)×600, SVGA | Dot Pitch | 0.1025×0.3075 mm (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch | 0.3075×0.3075 mm (H×V) [82PPI] |
Mechanical Size : | Active Viewing | 246×184.5 mm (H×V) | Bezel Area | 249.05×188.3 mm (H×V) |
Outline Dim. | 279×209 mm (H×V) | Depth(mm) | 6.27/9.0 (Typ./Max.) mm |
Outline Features : | Form Style | Flat Rectangle | Shape Style |
|
Aspect Ratio | 4:3 (W : H) | Orientation | Landscape type |
Fixation : | Face mounting holes (6-Φ3.4, 1-R1.7) on left, right bezel |
Other Spec : | Weight | 492g (Typ.) | Surface | Antiglare |
3.TIANMA P1210SVF1MB00 Optical Details
Basic Information : | Brightness | 500 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Optical Mode | SFT, Normally Black, Transmissive |
Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) ms |
Color Performance : | Chromaticity | Wx:0.302; Wy:0.331 | Color Numbers | 262K/16.7M (6-bit / 8-bit) |
Color Temperature | 7073K | Uniformity | 1.25/1.43 (Typ./Max.)(9 points) |
1931 Color Gamut : | NTSC Ratio | 73% | sRGB | 98% coverage |
Adobe RGB | 76% coverage | DCI-P3 | 76% coverage |
Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. TIANMA P1210SVF1MB00 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | Yes (180°) |
5.TIANMA P1210SVF1MB00 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Input Current | 345/450mA (Typ./Max.) |
Consumption | 1.14/1.49W (Typ./Max.) |
Signal Type : | LVDS (1 ch, 6/8-bit) |
Interface Features : | Position | - | Type | Connector |
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
STM | MSB240420HE | 1.25mm | 20 pins | 1 pcs | LVDS-20P1C8B-080G |
6.TIANMA P1210SVF1MB00 Backlight Details
Backlight Features : | Type | WLED | Amount | 8S4P | Position | Edge light type |
Replacement | - | Shape | Array | Life Time | 50K(Typ.) Hours |
Interface Features : | Position | - | Type | Connector |
Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
STM | MSB24038P5 | 1 pcs | 1.25 mm | 5 pins |
|
Lamp Driver | With LED Driver |
Driver Electrical : | Input Currentt | 0.72/1.0A (Typ./Max.) | Input Voltage | 12.0±1.2V |
Consumption | 8.64/12W (Typ./Max.) |
