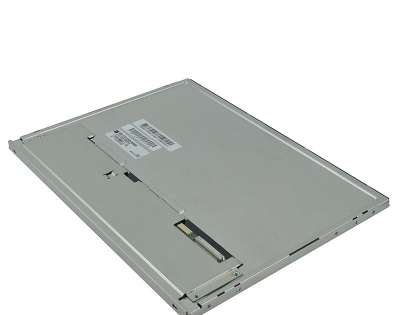

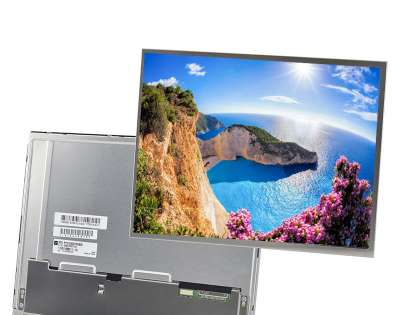

1.TIANMA P1210WXF1MB00 Application Details
Basic Information : | Brand | TIANMA | Model | P1210WXF1MB00 |
Type | a-Si TFT-LCD , LCM | Used For | Industrial |
Screen Size | 12.1 inch | Alias | - |
Environment : | Storage Temp. | -30 ~ 80 °C | Operating Temp. | -20 ~ 70 °C |
RoHS | RoHS | Vibration Level | 2.0G (19.6 m/s²) |
Typical Features : | WLED Backlight，Life≥50K hours，With LED Driver，Reverse I/F, |
2.TIANMA P1210WXF1MB00 Mechanical Details
Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(W×H) | 0.068×0.204 mm |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.204×0.204 mm [124PPI] |
Mechanical Size : | Active Viewing | 261.12(W)×163.2(H) mm | Overall Dim. | 278(W)×184(H) mm |
Bezel Opening | 264.12(W)×166.2(H) mm | Depth(mm) | 6.7/9.9 (Typ./Max.) mm |
Outline Features : | Form Style | Flat Rectangle | Shape Style |
|
Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type |
Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
Other Spec : | Weight | 445g (Typ.) | Surface | Antiglare |
3.TIANMA P1210WXF1MB00 Optical Details
Basic Information : | Luminance(cd/m²) | 450 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Display Mode | SFT, Normally Black, Transmissive |
Best View on | Symmetry | Response(ms) | 25 (Typ.)(Tr+Td) |
| Color Performance : | Chromaticity | Wx:0.309; Wy:0.340 | Support Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
Color Temperature | 6602K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) |
1931 Color Gamut : | NTSC Ratio | 71% | sRGB | 91% coverage |
Adobe RGB | 73% coverage | DCI-P3 | 74% coverage |
Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. TIANMA P1210WXF1MB00 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | No |
Driver IC : | COG Built-in EK79202C8 |
5.TIANMA P1210WXF1MB00 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Input Current | 200mA (Typ.) |
Consumption | 660mW (Typ.) |
Signal Type : | LVDS (1 ch, 6/8-bit) |
Interface Features : | Position | Down middle of panel | Type | Connector |
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
STM | MSAKT2407P30HB | 1.0mm | 30 pins | 1 pcs |
|
6.TIANMA P1210WXF1MB00 Backlight Details
Backlight Features : | Type | WLED | Amount | 8S3P | Position | Edge light type (Top side) |
Replacement | - | Shape | Array | Life Time | 50K(Typ.) Hours |
Interface Features : | Position | - | Type | Included in signal interface |
Backlight Driver : | With LED Driver |
Driver Electrical : | Input Voltage | 12.0±1.0V | Input Current | 787mA (Typ.) |
Consumption | 9.4W (Typ.) |
7. TIANMA P1210WXF1MB00 Packing Features
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 15 | 1 | 530×430×274 | 10.10 | 0.0624 |
