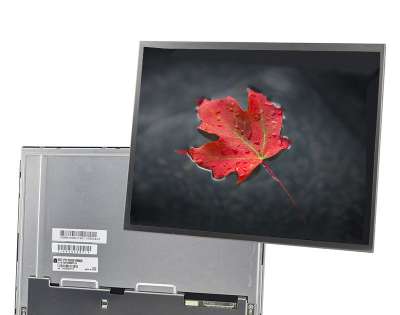

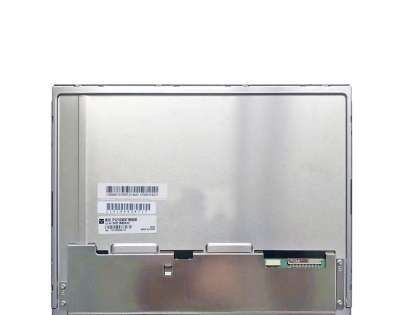

1.TIANMA P1210XGF1MA00 Application Details
Basic Information : | Brand | TIANMA | Model | P1210XGF1MA00 |
Type | a-Si TFT-LCD , LCM | Used For | Industrial，Outdoor High Brightness，Automotive Display |
Screen Size | 12.1 inch | Alias | TM121TDGP01-00 |
Environment : | Storage Temp. | -40 ~ 90°C | Operating Temp. | -30 ~ 80 °C |
RoHS | RoHS | Vibration Level | 2.0G (19.6 m/s²) |
Typical Features : | Srgb ，Wide Temperature，Ultra High Brightness，WLED Backlight，Life≥100K hours，180°Reverse，6/8bit， Matte |
2.TIANMA P1210XGF1MA00 Mechanical Details
Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(W×H) | 0.080×0.240 mm |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.240×0.240 mm [105PPI] |
Mechanical Size : | Active Viewing(W×H) | 245.76×184.32 mm | Bezel Area (W×H) | 249×187.5 mm |
Outline Dimension (W×H) | 260.5×203 mm | Depth(mm) | 8.3/10.0 (Typ./Max.) mm |
Outline Features : | Form Style | Flat Rectangle | Shape Style |
|
Aspect Ratio | 4:3 (W : H) | Orientation | Landscape type |
Fixation : | Side mounting holes (5-M2) on left, right bezel |
Other Spec : | Weight | 550g (Typ.) | Surface | Antiglare |
3.TIANMA P1210XGF1MA00 Optical Details
Basic Information : | Luminance(cd/m²) | Operating Mode | Contrast Ratio |
1300 cd/m² (Typ.) | SFT, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) |
Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed |
88/88/88/88 (Typ.)(CR≥10) | Symmetry | 25 (Typ.)(Tr+Td) (ms) |
Dispaly Color : | Chromaticity | Color Amount | White color Chromaticity |
6816K | 262K/16.7M (6-bit / 8-bit) | X:0.306; Y:0.334 |
1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
74% | 99% | 77% |
DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
77% | 55% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Luminance Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
Performance : | 3D Type | Outdoor Visibility | Reflectance |
- | Sunlight Readable | - |
4. TIANMA P1210XGF1MA00 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | Yes (180°) |
5.TIANMA P1210XGF1MA00 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Input Current | 240/270mA (Typ./Max.) |
Consumption | 0.8W (Typ.) |
Signal Type : | LVDS (1 ch, 6/8-bit) |
Interface Features : | Position | - | Type | Connector |
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
JAE | FI-SEB20P-HFE | 1.25mm | 20 pins | 1 pcs | LVDS-20P1C8B-010H |
6.TIANMA P1210XGF1MA00 Backlight Details
Backlight Features : | Type | WLED | Amount | 7S4P | Position | Edge light type |
Replacement | - | Shape | 4 strings | Life Time | 100K(Typ.) Hours |
WLED Electrical : | Current Input
| 115/120mA (Typ./Max.) | Voltage Input | 21V (Typ.) | Consumption | 9.7W (Typ.) |
Interface Features : | Position | Type | WLED Driver |
- | Connector | No |
Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
JST | SM10B-SHLS-TF | 1 pcs | 1.0 mm | 10 pins | BLE-10PINS-NNCAACCAAC |
7.TIANMA P1210XGF1MA00 Packing Features
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 10 | 1 | 433×395×310 | 6.99 | 0.0530 |
