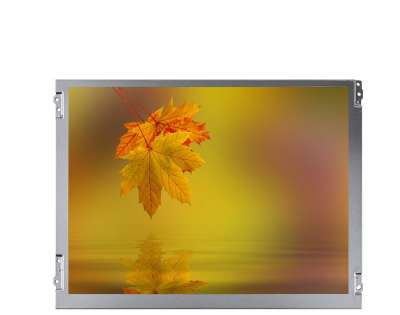

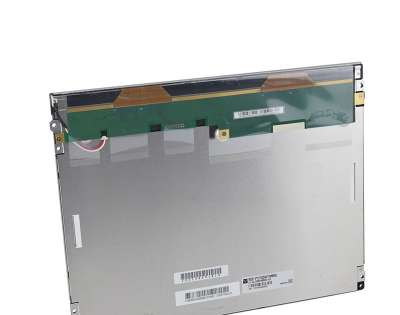

1.TIANMA P1210XGN1MB00 Application Details
Basic Information : | Brand | TIANMA | Model | P1210XGN1MB00 |
Type | a-Si TFT-LCD , LCM | Used For | Industrial |
Screen Size | 12.1 inch | Alias |
|
Environment : | Storage Temp. | -30 ~ 80°C | Operating Temp. | -20 ~ 70 °C |
RoHS | RoHS | Vibration Level | 1.2G (11.76 m/s²) |
Typical Features : | Lamp Repaceable，WLED Backlight，Life≥50K hours，With LED Driver,180°Reverse，6/8bit，Matte |
2.TIANMA P1210XGN1MB00 Mechanical Details
Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(W×H) | 0.080×0.240 mm |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.240×0.240 mm [105PPI] |
Mechanical Size : | Active Viewing(W×H) | 245.76×184.32 mm | Bezel Area | 250.8×189.4 mm (H×V) |
Outline Dim. | 279×209 mm (H×V) | Depth(mm) | 6.0/9.1 (Typ./Max.) mm |
Outline Features : | Form Style | Flat Rectangle | Shape Style |
|
Aspect Ratio | 4:3 (W : H) | Orientation | Landscape type |
Fixation : | Face mounting holes (6-Φ3.4, 1-R1.7) on left, right bezel |
Other Spec : | Weight | 485g (Typ.) | Surface | Antiglare |
3.TIANMA P1210XGN1MB00 Optical Details
Basic Information : | Brightness | 450 cd/m² (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
Viewing Angle | 80/80/80/80(Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive |
Viewing Direction | 6 o'clock | Response Time | 3/5 (Typ.)(Tr/Td) (ms) |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.2M (6-bit / 6-bit + FRC) |
Color Temperature | 6485K | Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
1931 Color Gamut : | NTSC Ratio | 55% | sRGB | 77% coverage |
Adobe RGB | 58% coverage | DCI-P3 | 58% coverage |
Rec.2020 | 41% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. TIANMA P1210XGN1MB00 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | Yes (180°) |
Power Consumption : | 6.4W (Typ.) |
5.TIANMA P1210XGN1MB00 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Input Current | 340/740mA (Typ./Max.) |
Consumption | - |
Signal Type : | LVDS (1 ch, 6/8-bit) |
Interface Features : | Position | - | Type | Connector |
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
STM | MSB240420HE | 1.25mm | 20 pins | 1 pcs | LVDS-20P1C8B-080G |
6.TIANMA P1210XGN1MB00 Backlight Details
Backlight Features : | Type | WLED | Amount | 9S2P | Position | Edge light type |
Replacement | Replaceable | Shape | 2 strings | Life Time | 50K(Typ.) Hours |
Interface Features : | Position | - | Type | Connector |
Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
STM | MSB24038P5 | 1 pcs | 1.25 mm | 5 pins |
|
Backlight Driver : | Backlight Driver : |
Driver Electrical : | Input Currentt | 410/480mA (Typ./Max.) | Input Voltage | 12.0±1.2V |
7.TIANMA P1210XGN1MB00 Packing Features
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 10 | 1 | 395×311×377 | 5.69 | 0.0463 |
Pallet | 160 | 16 | N/A | N/A | N/A |
